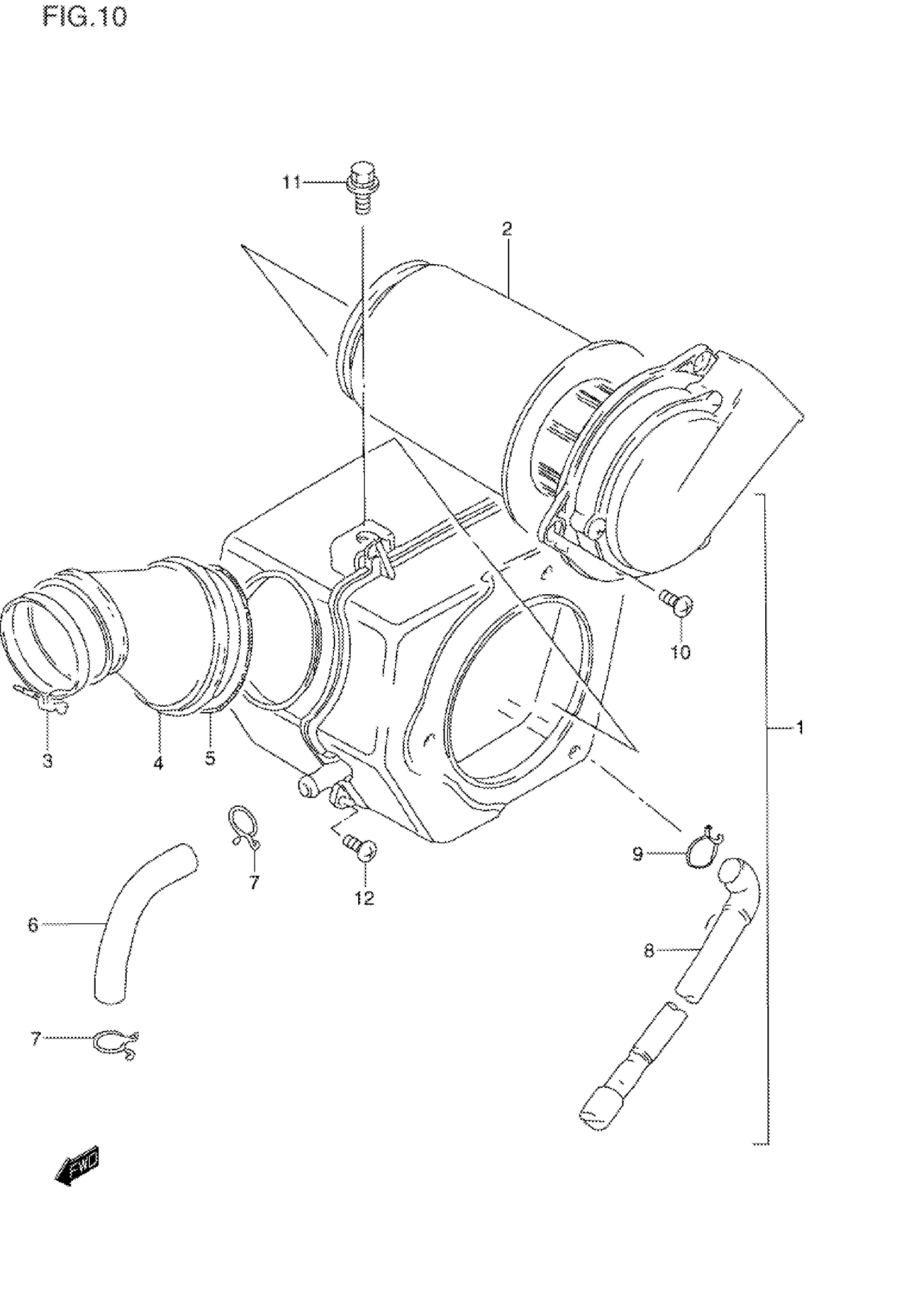

Suzuki GN125EV (1997) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY | Includes Item(s) 2 - 10

13700-05302

Unavailable

2

FILTER

13780-38301

$32.75

3

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

4

TUBE, OUTLET

13881-05300

$23.07

5

CLAMP

13826-38300

$3.56

6

TUBE, BREATHER

13853-05300

Unavailable

7

CLIP

09401-14401

$2.53

8

TUBE,DRAIN This part replaces 13870-21308.

13870-21309

$12.39

9

CLIP

09401-13409

$2.12

10

SCREW

02142-05127

$1.97

11

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

12

SCREW This part replaces 02142-06163.

02142-0616A

$1.49
