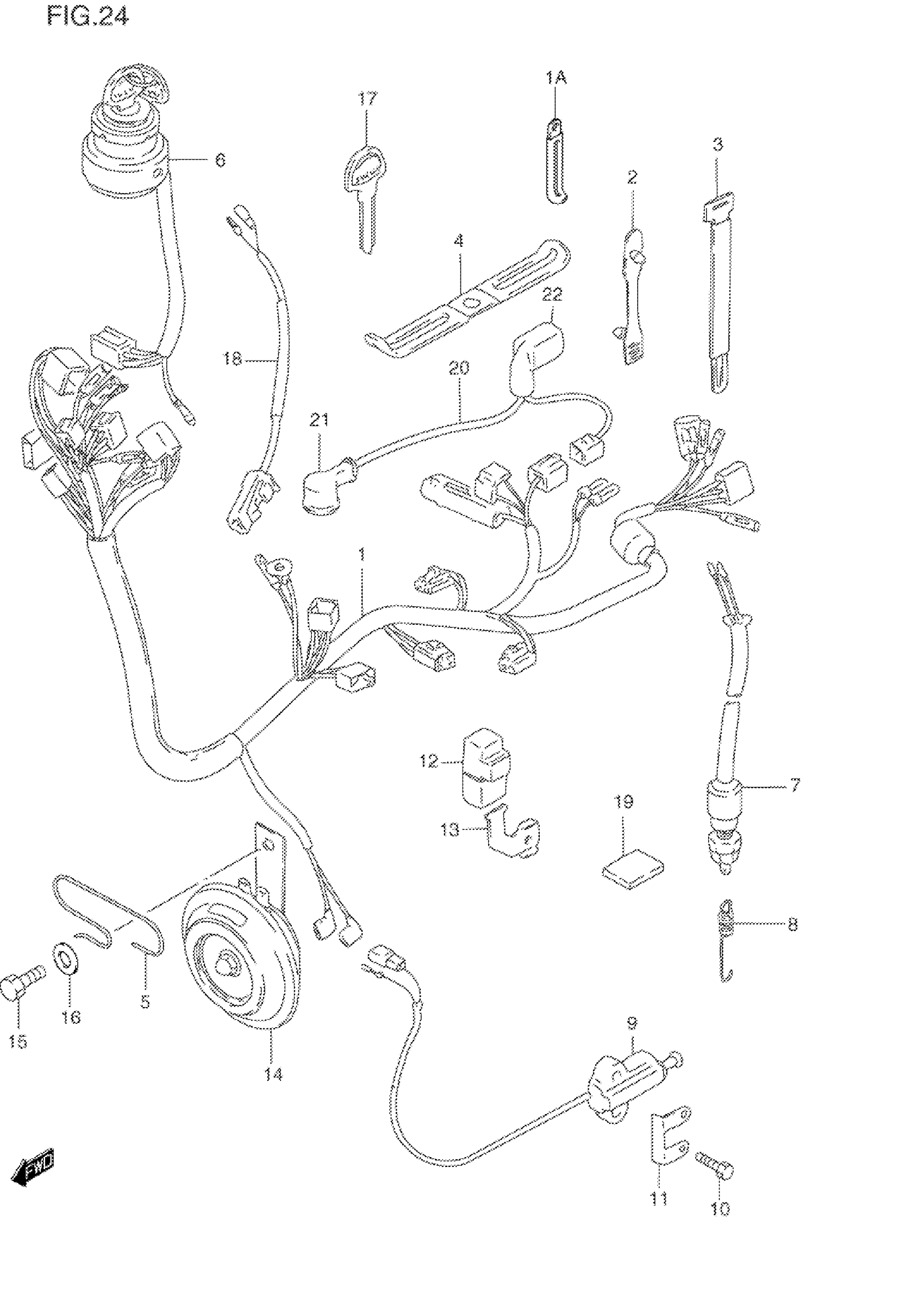

Suzuki GN125ET (1996) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | MODEL M/N

36610-05480

Unavailable

1

WIRING HARNESS | MODEL P

36610-05481

Unavailable

1

WIRING HARNESS | MODEL R/S/T

36610-053C0

Unavailable

1A

CLAMP

09404-06420

Unavailable

2

CLAMP

09407-05403

$2.38

3

CLAMP This part replaces 09407-14301.

09407-18302

$2.28

3

CLAMP

09407-14403

$2.26

3

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

3

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

3

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

3

CLAMP

09407-25401

$4.66

4

CLAMP, STARTER MOTOR LEAD | MODEL M/N This part replaces 36651-05300.

36651-05301

Unavailable

4

CLAMP, CLUTCH CABLE | MODEL P/R/S/T

36651-05301

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 36619-37300.

36619-05300

Unavailable

6

SWITCH ASSY, IGNITION

37110-33021

Unavailable

7

SWITCH, REAR BRAKE LAMP | MODEL M/N/P

37740-48071

$19.18

7

SWITCH, REAR BRAKE LAMP | MODEL R

37740-45D00

$18.27

7

SWITCH ASSY, STOP LAMP | MODEL S/T

37740-31D00

$28.23

8

SPRING

09443-06078

Unavailable

9

SWITCH ASSY,SID | MODEL M/N/P This part replaces 37840-11D00.

37840-11X51

$82.02

9

SWITCH ASSY,SID | MODEL R/S This part replaces 37840-11D10.

37840-11X51

$82.02

9

SWITCH ASSY,SID | MODEL T This part replaces 37840-11X50.

37840-11X51

$82.02

10

BOLT | MODEL M/N/P This part replaces 01517-06204.

01550-0620A

$1.97

10

BOLT | MODEL R/S/T This part replaces 01550-06203.

01550-0620A

$1.97

11

PROTECTOR

37841-14D00

Unavailable

12

RELAY ASSY, SIDE STAND | MODEL M/N/P/R/S This part replaces 38740-24B10.

38740-24X50

$45.20

12

RELAY ASSY, SIDE STAND | MODEL T

38740-24X50

$45.20

13

BRACKET, RELAY

38741-05300

Unavailable

14

HORN | MODEL M/N/P/R/S This part replaces 38500-38360.

38500-38361

$50.10

14

HORN | MODEL T

38500-38361

$50.10

15

PLUG, DRAIN | MODEL M/N/P This part replaces 01107-08165.

01500-0816B

$2.50

15

BOLT (8X16) | MODEL R This part replaces 01550-08163.

01550-0816A

$2.32

15

BOLT (8X12) | MODEL S/T This part replaces 01550-08123.

01550-0812A

$2.32

16

WASHER | MODEL M/N/P This part replaces 08322-11084.

08322-0108A

$1.92

17

KEY, BLANK | OPT

37146-49300

$16.01

18

LEAD WIRE, CLUTCH SWITCH

36852-05300

Unavailable

19

PROTECTOR

36920-10B00

Unavailable

20

LEAD WIRE, BATTERY PLUS | MODEL R/S/T; Includes Item(s) 21 - 22

33820-053A0

Unavailable

21

CAP, STARTER | MODEL R/S/T

31861-10D00

Unavailable

22

CAP, BATTERY | MODEL R/S/T

33624-43500

$5.50
