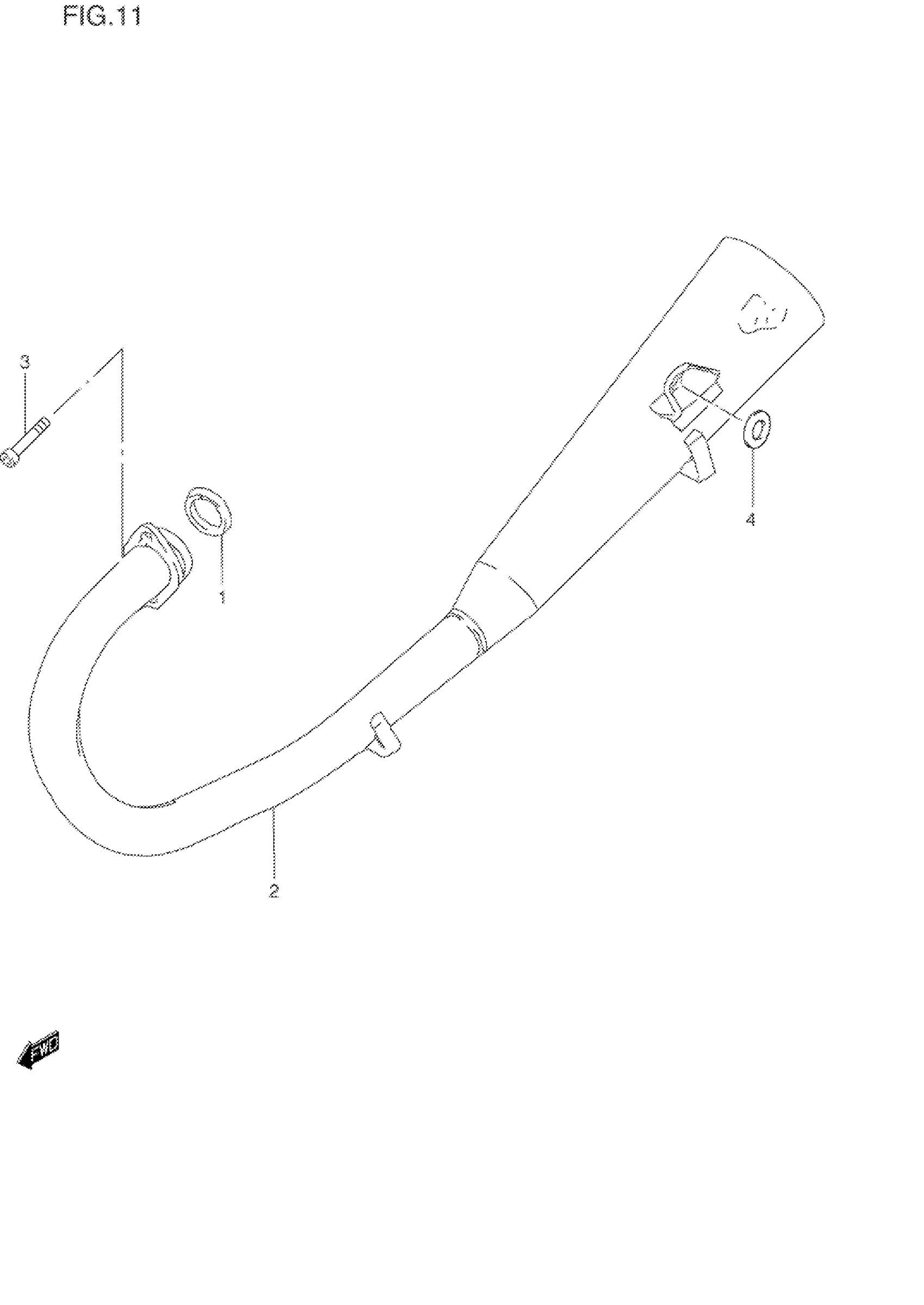

Suzuki GN125ET (1996) MUFFLER Diagram

#

Description

Price

1

.GASKET,EXHAUST | MODEL M This part replaces 14181-05020.

14181-18C00

$7.22

1

.GASKET,EXHAUST | MODEL N/P/R/S/T

14181-18C00

$7.22

2

MUFFLER COMP | MODEL N/M/P/R/S This part replaces 14305-05500.

14305-05314-H01

Unavailable

2

MUFFLER COMP | MODEL T This part replaces 14305-05313.

14305-05314-H01

Unavailable

3

BOLT | MODEL M/N/P This part replaces 07110-08257.

07130-08257

$3.43

3

BOLT | MODEL R/S/T This part replaces 07130-08253.

07130-0825B

$3.37

4

WASHER | MODEL M/N/P This part replaces 08322-21108.

08322-01107

$2.15

4

WASHER, KNUCKLE END | MODEL R/S/T This part replaces 08322-01103.

08322-0110A

$1.84
