1996 Suzuki GN125ET Headlamp Housing Diagram

← All diagrams

Find the part on the Headlamp Housing diagram for your 1996 Suzuki GN125ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

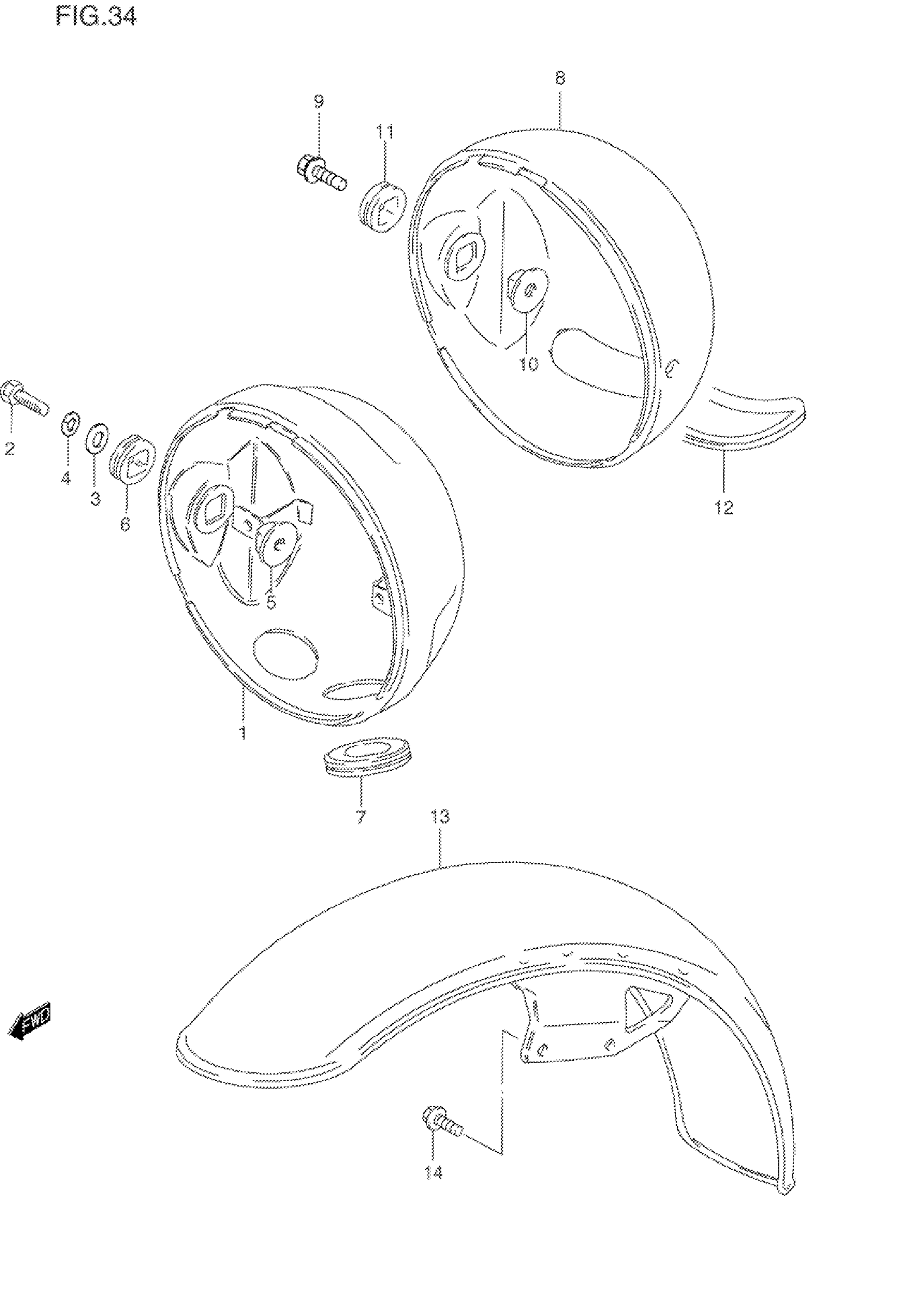

1996 Suzuki GN125ET Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP | MODEL M/N/P/R->51810-44201 This part replaces 51810-44200.

51810-44201

1
Out of stock

2

BOLT | MODEL M/N/P

01204-08207

2
Out of stock

2

BOLT | MODEL R

01264-08207

2
Out of stock

3

WASHER | MODEL M/N/P

08322-01087

2
Out of stock

4

.LOCK WASHER | MODEL M/N/P

08321-01087

2
Out of stock

5

SPACER,HEADLAMP This part replaces 51821-36200.

51821-36210

2
Out of stock

6

CUSHION,HEADLAM This part replaces 51827-27302.

51827-27303

2
Out of stock

7

GROMMET, HOUSING | MODEL M/N/P/RFOR 51810-44200

51845-31031

2
Out of stock

8

HOUSING, HEADLAMP | MODEL R/S/T

51810-44201

1
Out of stock

9

BOLT

01264-08207

2
Out of stock

10

SPACER,HEADLAMP This part replaces 51821-36200.

51821-36210

2
Out of stock

11

CUSHION,HEADLAM This part replaces 51827-27302.

51827-27303

2
Out of stock

12

MOLDING | MODEL R/S/TFOR 51810-44201 This part replaces 94631-05300.

94631-33C01

1
Out of stock

13

FENDER, FRONT

53110-05301

1
Out of stock

14

BOLT | MODEL M/N/P

01570-08167

4
Out of stock

14

BOLT | MODEL R/S/T This part replaces 01570-08163.

01570-0816A

4
Out of stock
