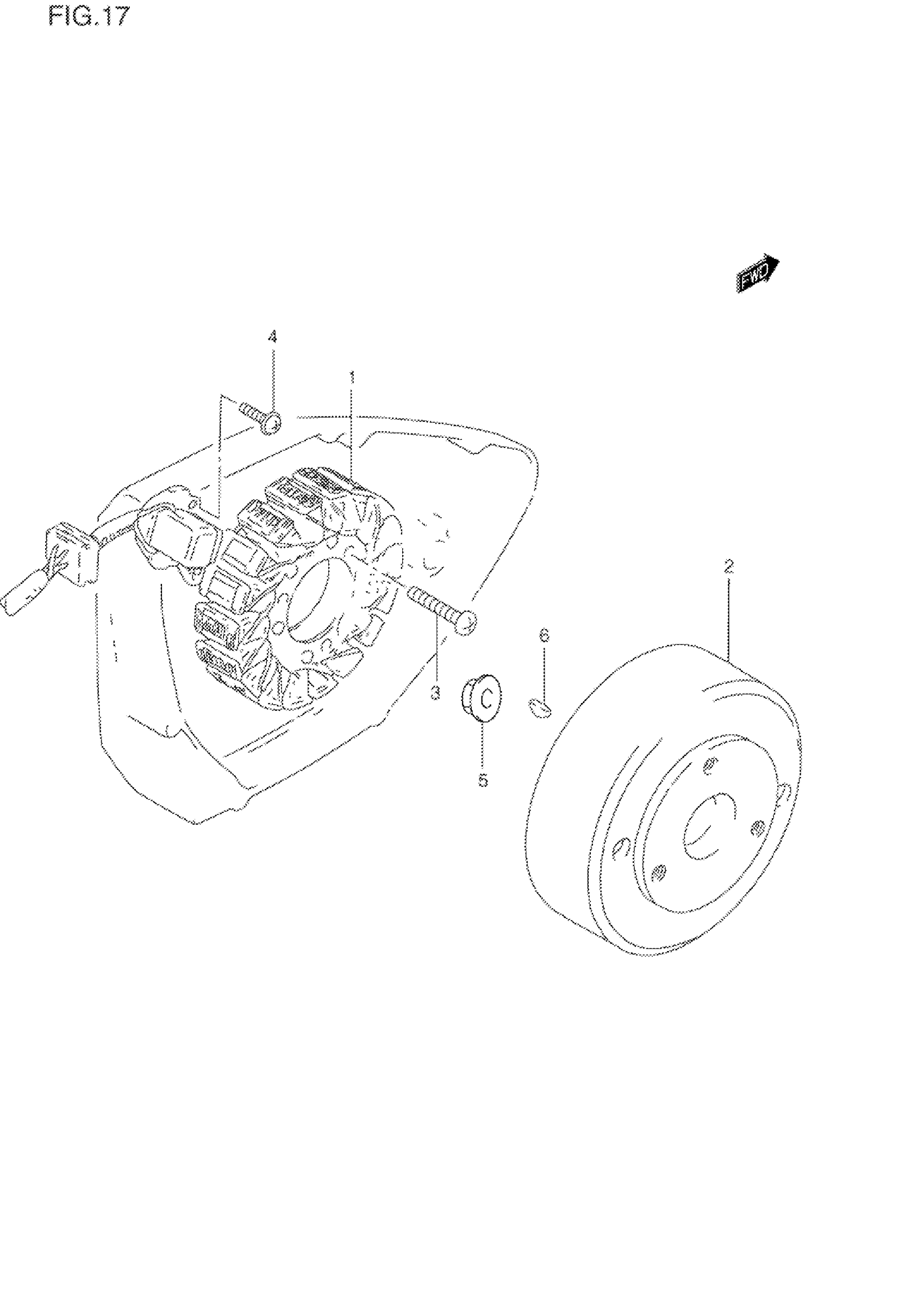

Suzuki GN125ET (1996) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-05300

Unavailable

2

ROTOR, FLYWHEEL

32102-05300

Unavailable

3

SCREW | MODEL M/N/P

02112-05257

$1.49

3

SCREW, PIVOT | MODEL R/S/T This part replaces 02112-05253.

02112-0525A

$1.45

4

SCREW | MODEL M/N/P This part replaces 02152-04128.

02142-04127

$1.58

4

SCREW | MODEL R/S/T This part replaces 02142-04123.

02142-0412A

$1.63

5

NUT | MODEL M/N/P This part replaces 08316-26107.

08316-2010B

$4.38

5

NUT | MODEL R/S/T This part replaces 08316-10103.

08316-1010B

$2.65

6

KEY

08341-31039

$1.89
