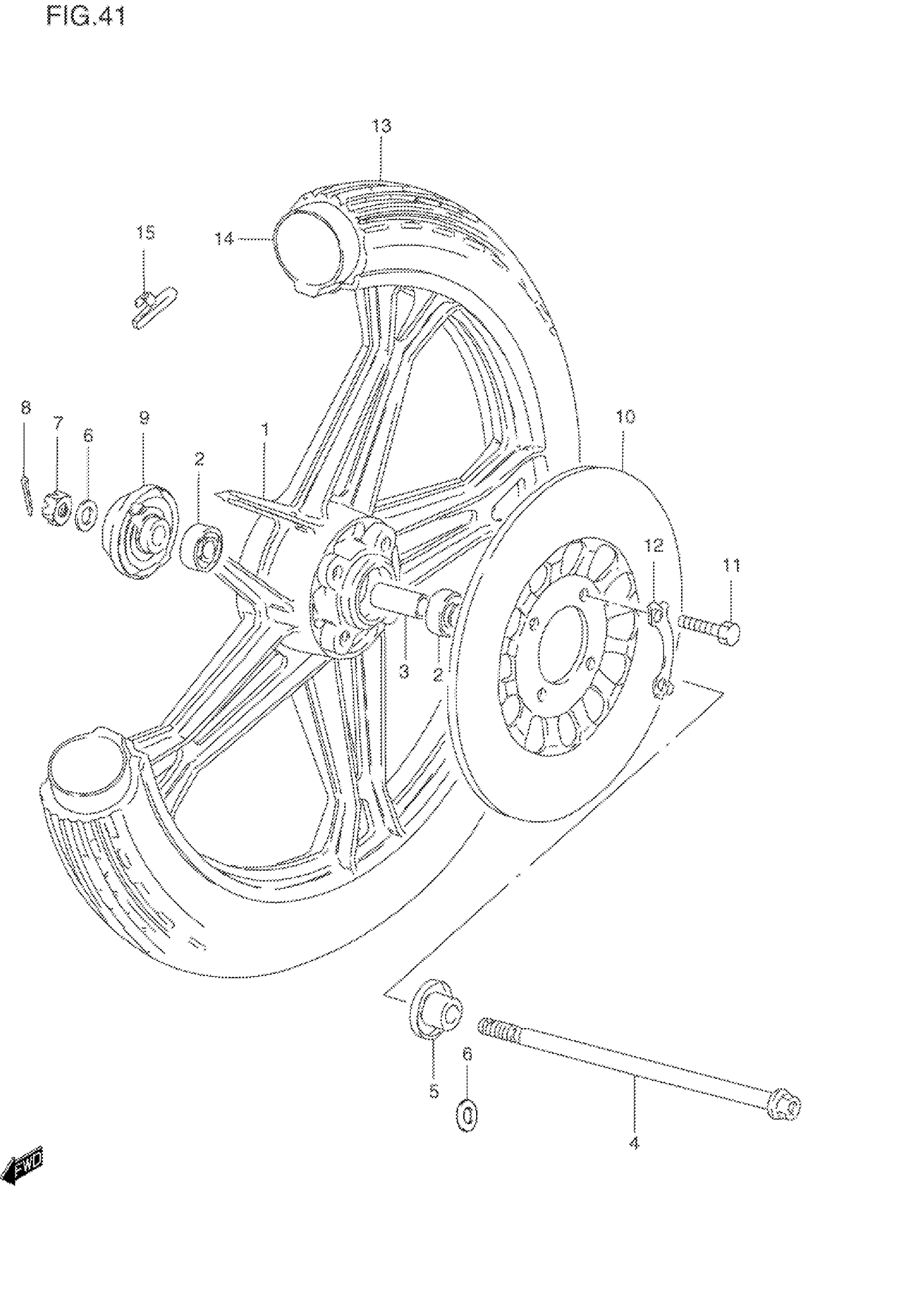

Suzuki GN125ET (1996) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT,1.60X18 (GOLD) | MODEL M/N/P

54111-05300-12V

Unavailable

1

WHEEL, FRONT,1.60X18 (BLACK) | MODEL R/S/T

54111-05300-291

Unavailable

2

BEARING This part replaces 08123-63017.

08123-6301B

$14.10

3

SPACER (12.5X19X52) This part replaces 09180-12041.

09180-12144

$10.30

4

AXLE, FRONT

54711-41101

Unavailable

5

SPACER, FRONT AXLE, LH

54740-11300

Unavailable

6

WASHER | MODEL M/N/P This part replaces 08322-11128.

08322-01127

$1.84

6

WASHER, NUT | MODEL R/S/T

08322-01127

$1.84

7

NUT | MODEL M/N/P This part replaces 08314-31128.

08314-3112A

$2.41

7

NUT | MODEL R/S/T

09141-12003

Unavailable

8

PIN This part replaces 04111-30308.

04111-3030A

$1.49

9

BOX ASSY, SPEEDOMETER GEAR

54600-36400

Unavailable

10

DISC, FRONT BRAKE

59211-13001

$303.63

11

BOLT (8X30) | MODEL M/N

09100-08094

$2.71

11

BOLT (8X28) | MODEL P/R/S/T

09100-08140

$2.10

12

WASHER

09169-08019

Unavailable

13

TIRE, FRONT 2.75-18 (IRC) | ->55100-12B00 This part replaces 55100-39320.

55100-12B00

Unavailable

13

TIRE, FRONT 2.75-18 (IRC)

55100-12B00

Unavailable

14

TUBE ASSY,WHEEL This part replaces 55200-11601.

55200-26F01

$31.27

15

BALANCER This part replaces 55411-47002.

55411-47001

Unavailable

15

BALANCER, WHEEL (30G)

55412-47002

Unavailable

15

BALANCER (10G) This part replaces 55413-47002.

55413-47001

Unavailable
