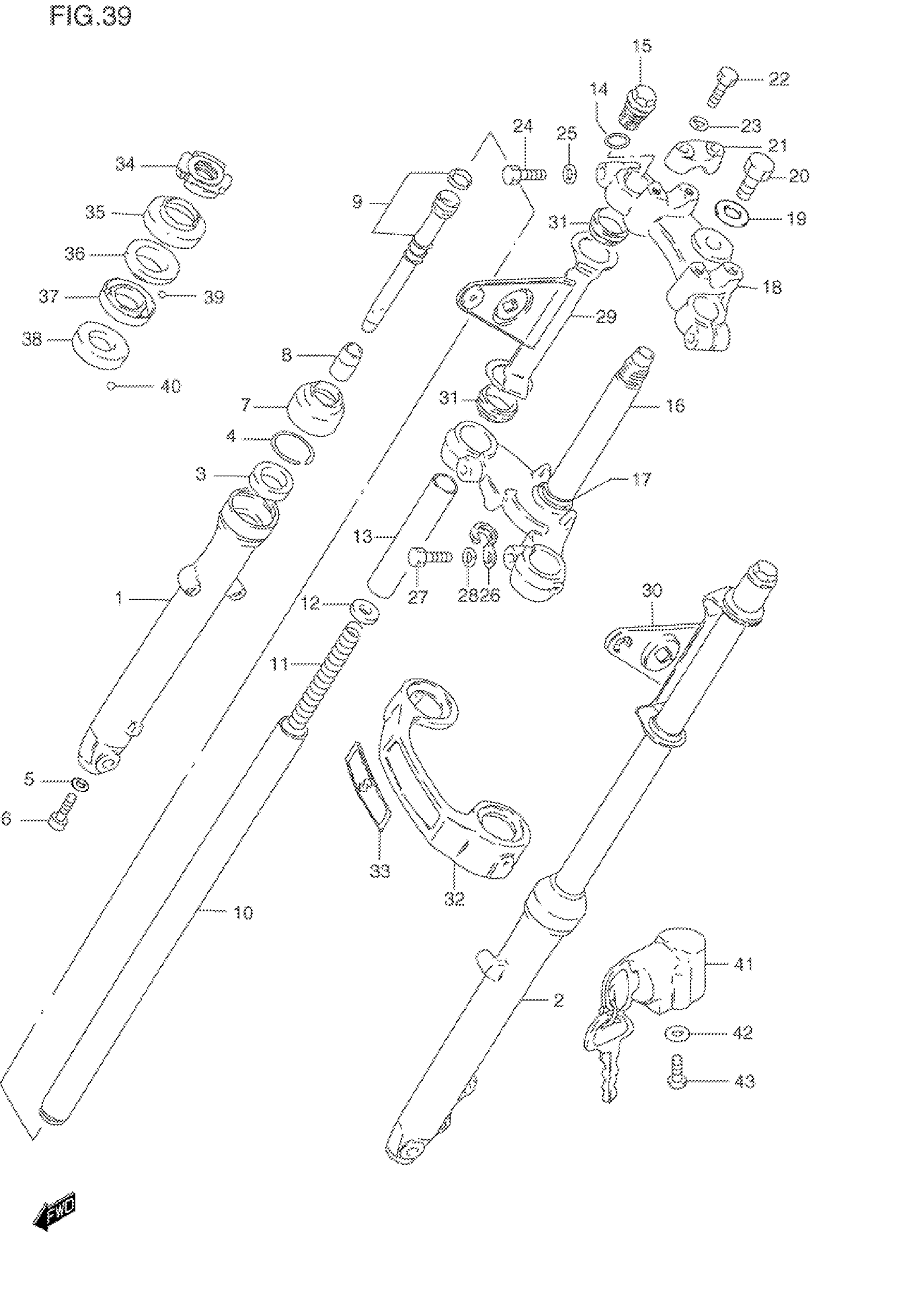

Suzuki GN125ET (1996) FRONT FORK (MODEL M/N/P/R/S) Diagram

#

Description
Price

FRONT FORK ASSY (BLACK) | Includes Item(s) 1 - 33

51100-05301-291

Unavailable

1

OUTER TUBE RH

51130-05300

Unavailable

2

OUTER TUBE LH

51140-05300

Unavailable

3

OIL SEAL

51153-05300

$15.05

4

RING, STOPPER

51156-41603

Unavailable

5

GASKET

51148-41310

$2.26

6

BOLT

51147-16510

$4.34

7

DUST SEAL

51173-41603

$8.15

8

PIECE, OIL LOCK

51195-36220

Unavailable

9

CYLINDER

51146-05300

Unavailable

10

INNER TUBE

51110-05300

Unavailable

11

SPRING

51171-05300

Unavailable

12

GUIDE, SPRING

51172-18630

Unavailable

13

SPACER

51176-05300

Unavailable

14

O RING | MODEL M/N/P/R This part replaces 51181-25010.

51181-29401

$3.37

14

O RING | MODEL S This part replaces 51181-29400.

51181-29401

$3.37

15

CAP

51351-41603

Unavailable

16

STEM, STEERING

51410-11311

Unavailable

17

OUTER RACE

51621-33001

$16.25

18

STEM HEAD, STEERING (BLACK)

51311-11300-291

Unavailable

19

WASHER

51356-22012

$6.80

20

BOLT | MODEL M/N This part replaces 51351-20010.

51351-29400

$31.22

20

BOLT | MODEL P/R/S This part replaces 51351-20011.

51351-29400

$31.22

21

HOLDER, HANDLE (BLACK)

56211-29320-291

$15.51

22

BOLT

01204-08357

$2.09

23

.LOCK WASHER | MODEL M/N/P/R This part replaces 08321-21088.

08321-01087

$2.13

23

.LOCK WASHER | MODEL S

08321-01087

$2.13

24

BOLT | MODEL M/N This part replaces 51451-15113.

01104-10388

$2.72

24

BOLT | MODEL P/R This part replaces 51451-15114.

01104-10388

$2.72

24

BOLT | MODEL S

01104-10388

$2.72

25

LOCK WASHER | MODEL M/N/P/R This part replaces 08321-21107.

08321-01107

$1.84

25

LOCK WASHER | MODEL S

08321-01107

$1.84

26

CLIP

51455-36010

Unavailable

27

BOLT

51451-28012

Unavailable

28

LOCK WASHER | MODEL M/N/P/R This part replaces 08321-21128.

08321-01127

$2.06

28

LOCK WASHER | MODEL S

08321-01127

$2.06

29

BRACKET, HEADLAMP RH

51530-05300

Unavailable

30

BRACKET, HEADLAMP LH

51540-05300

Unavailable

31

CUSHION,HEADLAM This part replaces 51553-11300.

51553-11301

$4.12

32

COVER

51871-05301

Unavailable

33

EMBLEM

68211-38300

Unavailable

34

NUT, STEERING STEM

51631-28000

$17.37

35

DUST SEAL,STEERING UPPER

51643-25001

$4.43

36

RACE,STEERING OUTER UPPER

51621-28000

$11.95

37

RACE,STEERING INNER UPPER

51611-20002

$11.95

38

RACE, INNER LOWER

51611-33002

$13.81

39

STEEL BALL, UPPER

06111-06003

$1.49

40

STEEL BALL, LOWER

06111-08003

$1.49

41

LOCK, STEERING

51910-25311

$40.33

42

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

43

SCREW This part replaces 02112-05128.

02112-05127

$1.97

44

REFER TO FIG.39A(H- 4) FOR

SPECIAL NOTE

Unavailable
