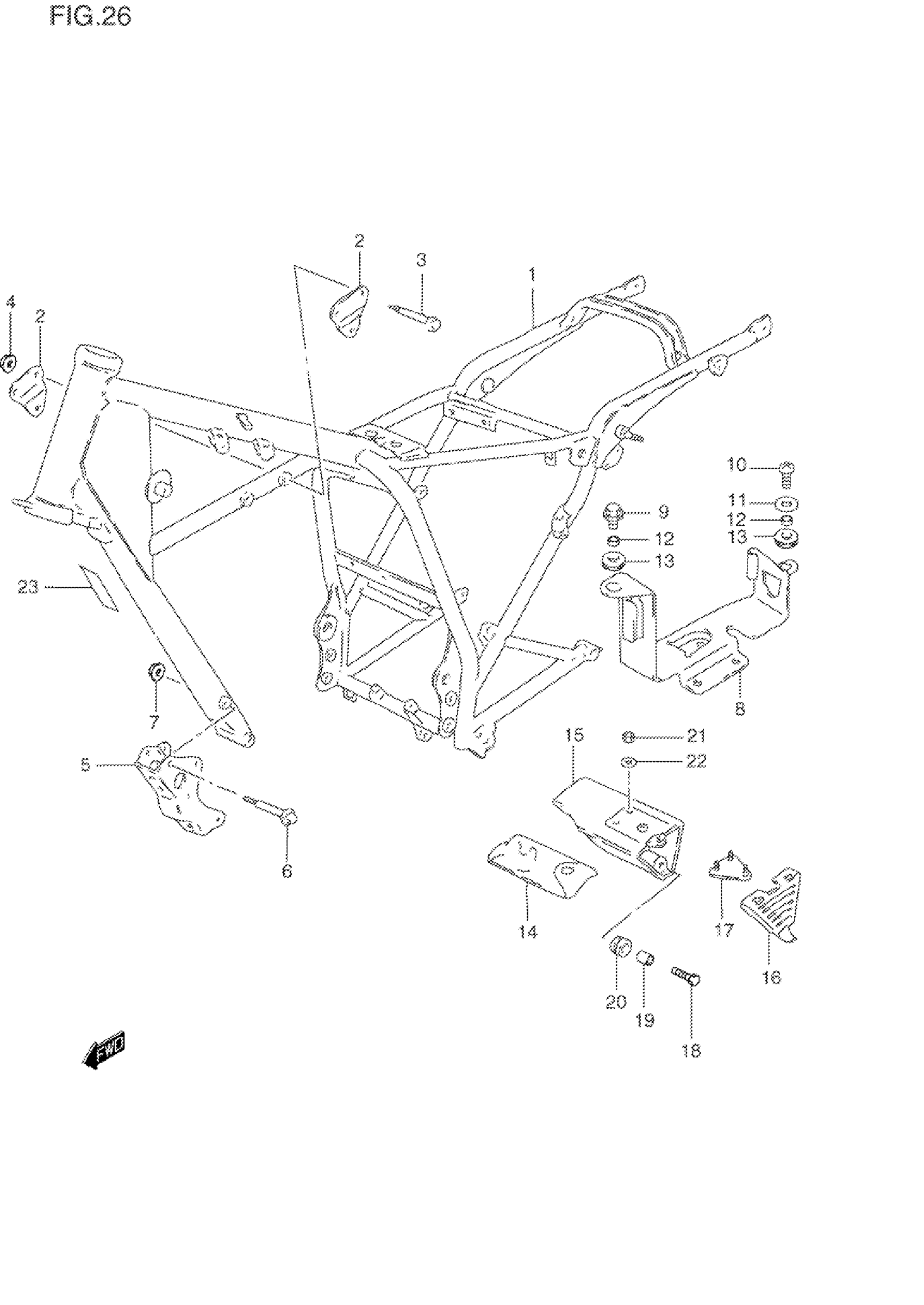

Suzuki GN125ET (1996) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL M This part replaces 41100-05390-019.

41100-05392-019

Unavailable

1

FRAME (BLACK) | MODEL N/P/R This part replaces 41100-05391-019.

41100-05392-019

Unavailable

1

FRAME (BLACK) | MODEL S/T

41100-05392-019

Unavailable

2

PLATE, UPPER

41991-05300

Unavailable

2

PLATE, UPPER RH | CALIFORNIA ONLY

41990-05300

Unavailable

2

PLATE, UPPER LH | CALIFORNIA ONLY

41991-05300

Unavailable

3

BOLT (8X50)

09103-08081

$3.72

4

NUT

08319-31087

$2.32

5

PLATE, LOWER

41992-05300

Unavailable

6

BOLT | MODEL M/N/P/R This part replaces 01517-08658.

01550-08657

$4.68

6

BOLT | MODEL S/T

01550-08657

$4.68

7

NUT

08319-31087

$2.32

8

HOLDER, BATTERY

41540-38301

Unavailable

9

BOLT (6X16) | MODEL M/N/P/R/S This part replaces 09116-06008.

09116-06168

$2.50

9

BOLT, HOLDER | MODEL T

09116-06168

$2.50

10

SCREW, HOLDER FRONT | MODEL M/N/P/R/S

09129-06003

Unavailable

11

WASHER (6.5X20X1.2) | MODEL M/N/P/R/S This part replaces 09160-06027.

09160-06077

$1.91

12

SPACER

09180-06038

$1.98

13

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

14

TOOL ASSY (CA) | MODEL M/N/P/R This part replaces 09800-00245.

09800-21021

Unavailable

14

TOOL ASSY | MODEL S/T

09800-21020

Unavailable

15

BOX, TOOL

47431-05300

Unavailable

16

CAP

47432-05300

$6.30

17

PLATE

47440-05301

Unavailable

18

BOLT (6X16) | MODEL M/N/P/R/S This part replaces 09116-06008.

09116-06168

$2.50

18

BOLT | MODEL T

09116-06168

$2.50

19

SPACER

09180-06038

$1.98

20

CUSHION (8.5X20X8) | MODEL M/N/P This part replaces 09320-08007.

09320-08510

$1.97

20

CUSHION (8.5X20X8) | MODEL R/S/T This part replaces 09320-08021.

09320-08510

$1.97

21

.NUT | MODEL M/N/P/R

08310-00067

$2.13

21

NUT | MODEL S/T This part replaces 08316-10063.

08316-1006B

$2.50

22

WASHER | MODEL M/N/P/R

08322-01067

$2.13

23

LABEL, INFORMATION

18793-05310

Unavailable

23

LABEL, INFORMATION | CALIFORNIA ONLY

18794-05310

Unavailable
