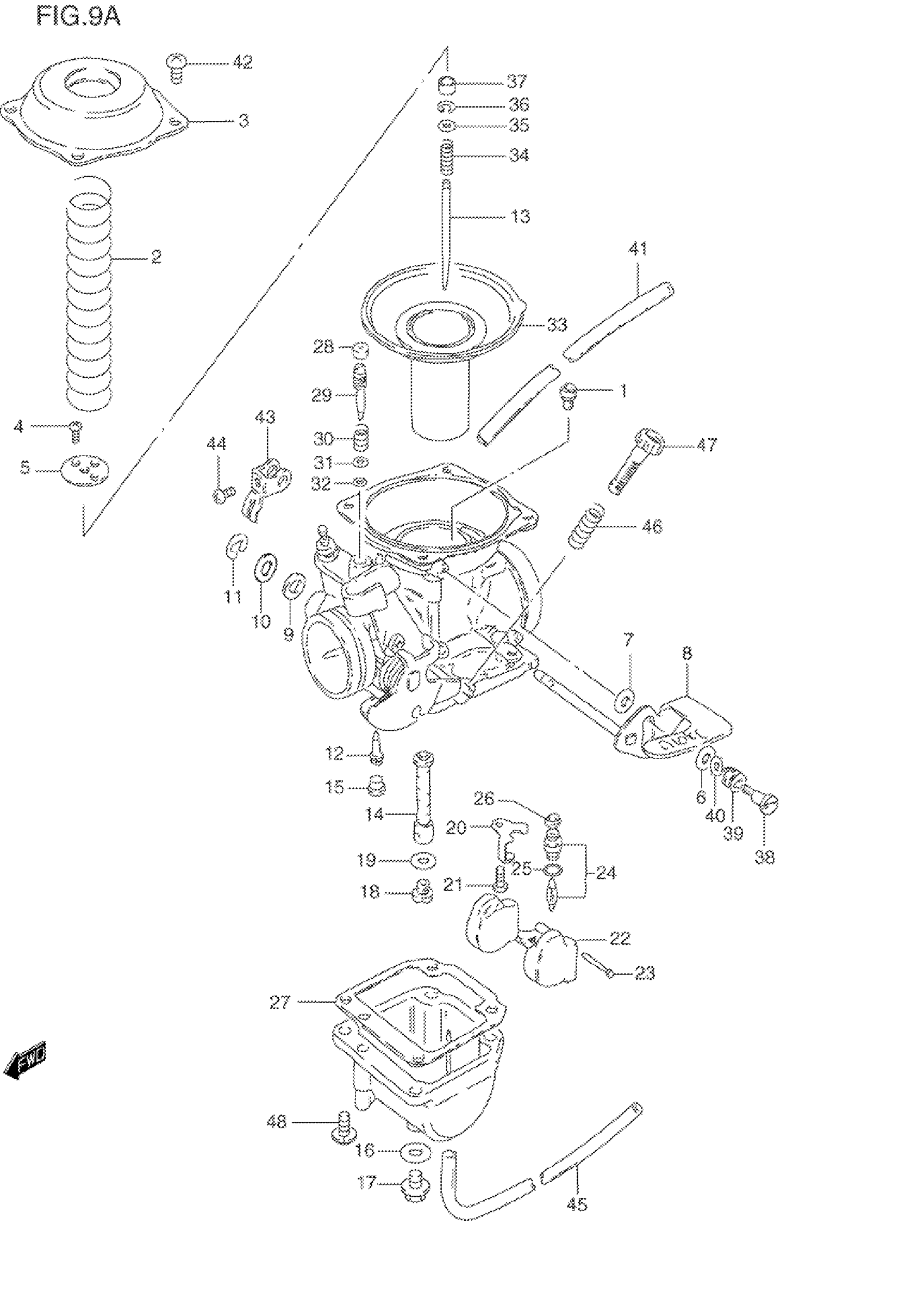

Suzuki GN125ET (1996) CARBURETOR (MODEL S/T) Diagram

#

Description
Price

CARBURETOR ASSY This part replaces 13200-05302.

13200-05304

Unavailable

CARBURETOR ASSY | CALIFORNIA ONLY; Includes Item(s) 1 - 48

13200-05402

Unavailable

1

JET, PILOT AIR (180)

09491-36005

$11.83

2

SPRING, THROTTLE VALVE

13503-33200

Unavailable

3

COVER

13502-33210

Unavailable

4

SCREW | MODEL S This part replaces 13399-34010.

02112-3308A

$2.23

4

SCREW | MODEL T This part replaces 02112-33083.

02112-3308A

$2.23

5

PLATE

13389-37400

$7.08

6

PACKING

13431-05300

Unavailable

7

WASHER

09160-04015

Unavailable

8

SHAFT ASSY, STARTER

13410-05300

Unavailable

9

SEAL This part replaces 13651-51010.

13651-51011

$2.20

10

PACKING

13557-47070

$3.59

11

E RING

13617-44080

$2.90

12

JET, PILOT (35)

09492-35008

$9.32

13

NEEDLE, JET (4DZ42)

13383-05300

Unavailable

13

NEEDLE, JET (4FCH1-1) | CALIFORNIA ONLY

13383-05400

Unavailable

14

JET, NEEDLE (P-2)

09494-00370

$31.35

14

JET, NEEDLE (O-8) | CALIFORNIA ONLY

09494-00740

Unavailable

15

PLUG | OTHER THAN CALIFORNIA

13357-44080

$5.10

16

GASKET

13246-44080

$2.80

17

SCREW, DRAIN

13247-44080

$7.97

18

.JET (#102.5)

09491-20012

$11.38

18

JET, MAIN (97.5) | CALIFORNIA ONLY

09491-97003

$11.38

19

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

20

PLATE

13373-39110

$6.64

21

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

22

FLOAT

13250-05300

$36.73

23

PIN

13254-92311

$2.07

24

VALVE ASSY, NEEDLE (2.0)

13370-44500

$50.98

25

O RING This part replaces 13374-44080.

13374-35C00

$5.99

26

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

27

GASKET, FLOAT CHAMBER This part replaces 13251-05400.

13251-20E20

$13.28

28

PLUG

13281-05A00

$4.60

29

SCREW, PILOT (2.0)

13279-45400

$14.85

30

.SPRING (NT:45)

13268-47070

$4.34

31

WASHER

13291-29900

$1.98

32

O-RING This part replaces 13295-29900.

13295-29901

$4.34

33

DIAPHRAGM ASSY This part replaces 13500-05400.

13500-053D1

$209.00

34

SPRING

13388-32400

Unavailable

35

WASHER

13382-44030

$3.71

36

E RING

13394-10010

$5.45

37

RING

13387-47010

$7.22

38

SCREW

13438-33110

$6.38

39

SPRING

13426-43010

Unavailable

40

WASHER

13615-43010

$3.25

41

HOSE,5X10X600 | L:600->300 This part replaces 09352-50823-600.

44421-13ER0

$10.06

42

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

43

LEVER

13422-05300

Unavailable

44

SCREW

13605-31210

$7.37

45

HOSE (3.5X6.5X600) | L:600->350

09351-35653-600

$4.64

45

HOSE (3.5X6.5X600) | CALIFORNIA ONLYL:600->350

09352-36602-600

Unavailable

46

SPRING

13268-37420

$5.32

47

ADJUSTER This part replaces 13267-37100.

13267-25D00

$14.20

48

SCREW

13601-04148

$2.81
