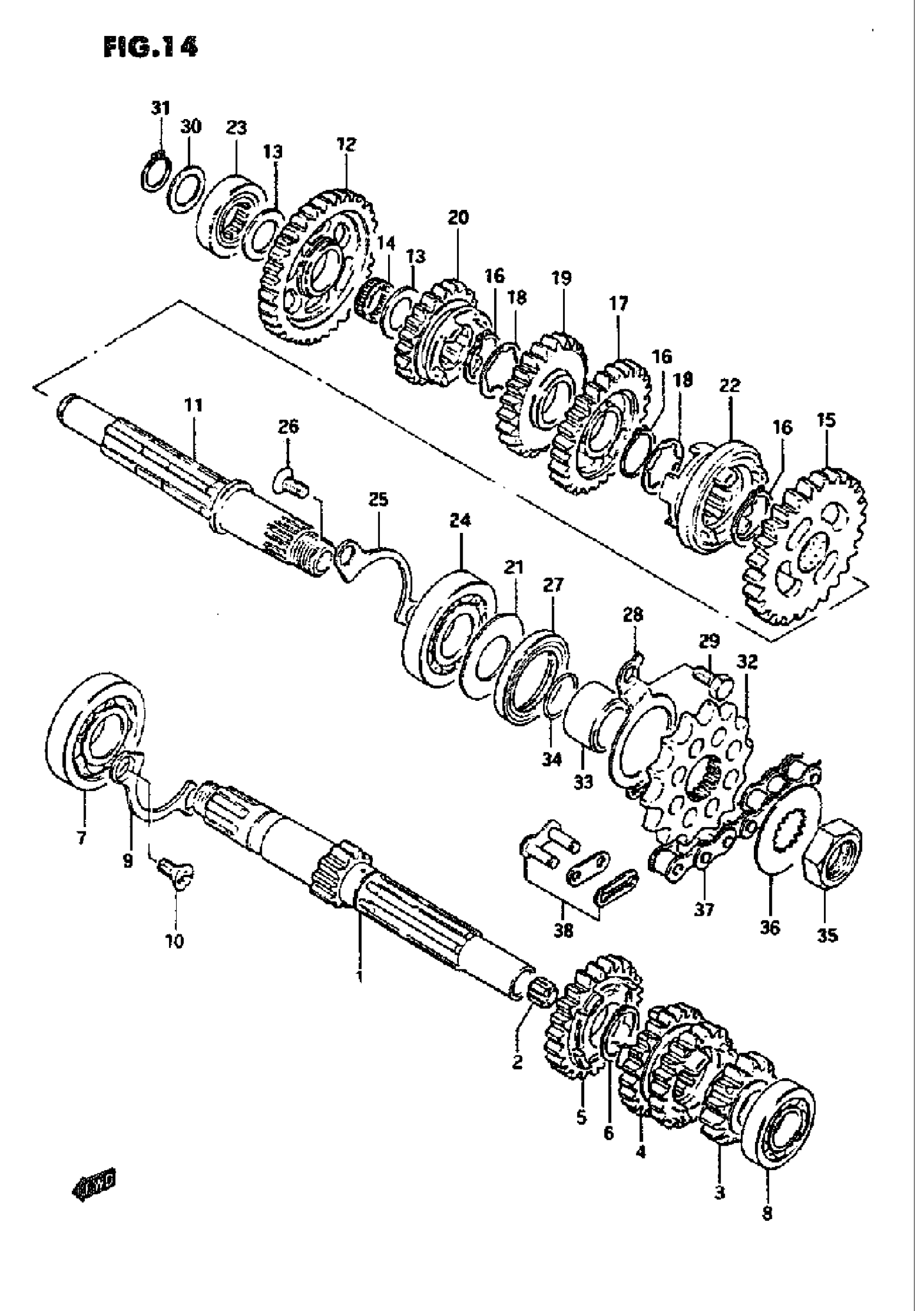

Suzuki GN125E (1995) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:11) This part replaces 24121-05201.

24120-05810

Unavailable

2

BUSH

24125-38201

$6.38

3

GEAR, 2ND DRIVE (NT:14) This part replaces 24221-05300.

24221-05301

Unavailable

4

GEAR, 3RD & 4TH DRIVEN This part replaces 24231-05202.

24231-05203

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 24251-05202.

24251-05203

Unavailable

6

CIRCLIP

09380-20009

$2.20

7

BEARING, DRIVE SHAFT LH | MODEL M/N This part replaces 09262-20062.

09262-20069

$23.28

7

BEARING, RH | MODEL P/R/S/T

09262-20069

$23.28

8

BEARING, LH

08123-60027

$23.62

9

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

10

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

11

DRIVESHAFT

24130-05300

Unavailable

12

GEAR, 1ST DRIVEN (NT:33) This part replaces 24311-05200.

24311-05202

Unavailable

13

WASHER

08211-15251

$1.67

14

BEARING

09263-15023

Unavailable

15

GEAR, 2ND DRIVEN (NT:26) This part replaces 24320-05201.

24320-05202

Unavailable

16

CIRCLIP

09380-20009

$2.20

17

GEAR, 3RD DRIVEN (NT:26) This part replaces 24331-05201.

24331-05203

Unavailable

18

WASHER

09167-20011

$2.31

19

GEAR, 4TH DRIVEN (NT:23) This part replaces 24341-05201.

24341-05203

Unavailable

20

NO DESCRIPTION AVAILABLE This part replaces 24351-05201.

24351-05202

Unavailable

21

WASHER

24359-05200

Unavailable

22

WHEEL, SLIDING DOG

24421-05300

Unavailable

23

BEARING, RH

09263-15024

Unavailable

24

BEARING, DRIVE SHAFT LH | MODEL M/N This part replaces 09262-20062.

09262-20069

$23.28

24

BEARING. LH | MODEL P/R/S/T

09262-20069

$23.28

25

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

26

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

27

OIL SEAL, LH

09283-27010

$10.30

28

NO DESCRIPTION AVAILABLE This part replaces 24751-05201.

24751-05210

Unavailable

29

BOLT | MODEL M/N/P This part replaces 01107-06106.

01500-0610B

$1.81

29

BOLT | MODEL R/S/T This part replaces 01500-06103.

01500-0610B

$1.81

30

WASHER

08211-15201

$2.38

31

CIRCLIP This part replaces 08331-31156.

08331-3115A

$2.25

32

SPROCKET (NT:14) | MODEL N/N This part replaces 27511-41301.

27511-41310

$23.98

32

SPROCKET (NT:14) | MODEL P/R/S/T

27511-41310

$23.98

33

SPACER

27531-05200

$18.02

34

0 RING

09280-19005

$2.33

35

NUT

09140-16017

$6.97

36

WASHER

09167-20012

$2.44

37

CHAIN, DRIVE (RK428FDZ,124LE) | MODEL M/N/P/R This part replaces 27600-36012.

27600-29B20-124

Unavailable

37

CHAIN, DRIVE (RK428FDZ,124LE) | MODEL S/T This part replaces 27600-29B20-114.

27600-29B20-124

Unavailable

38

JOINT. CHAIN (DID) | MODEL M/N/P/R

27620-36012

Unavailable

38

JOINT. CHAIN (RK) | MODEL S/T

27620-40220

$11.07

38

JOINT, CHAIN (RK)

27620-40220

$11.07
