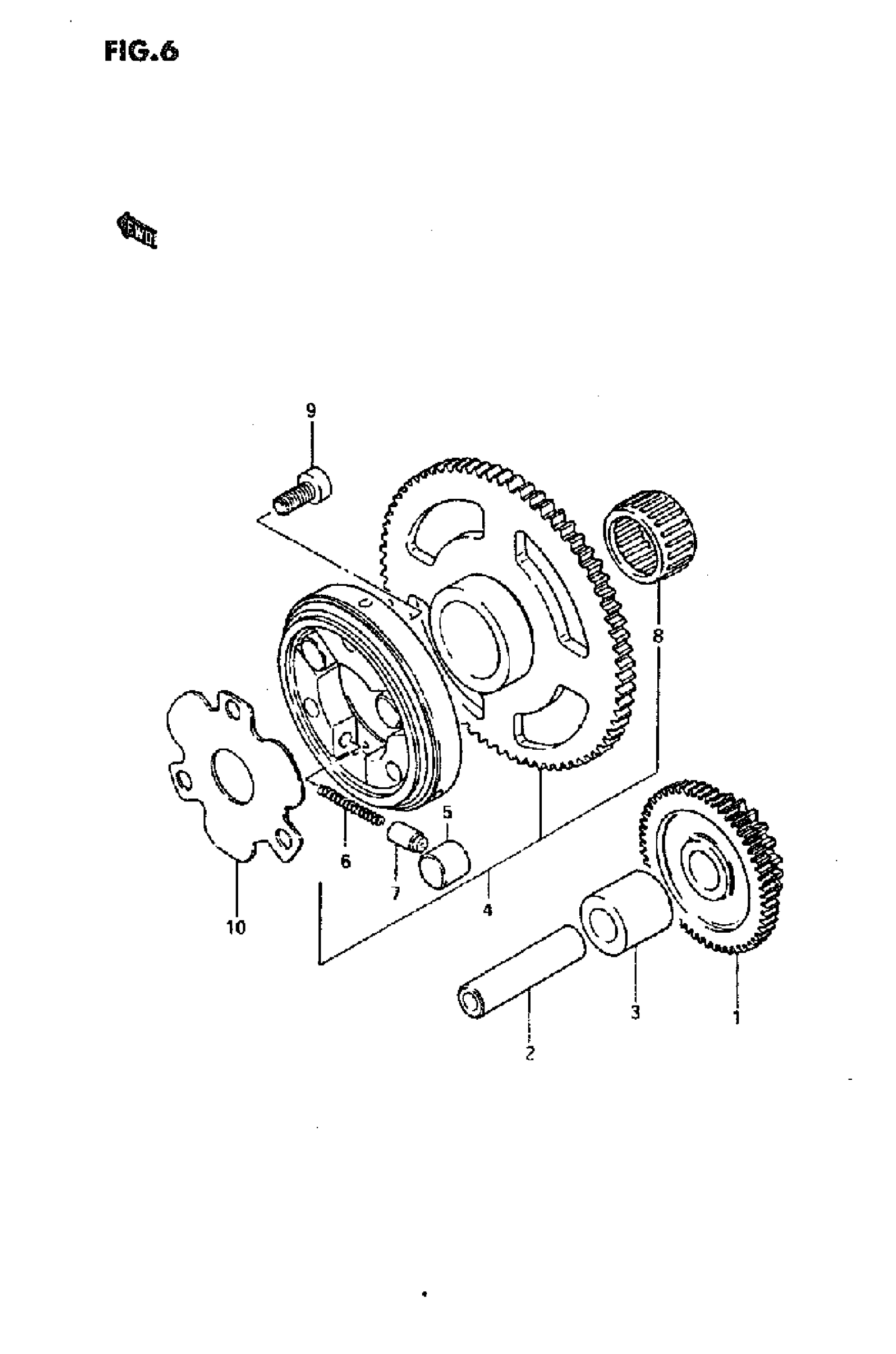

Suzuki GN125E (1995) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE

12611-05300

Unavailable

2

PIN

09206-13003

$15.70

3

SPACER

09180-13006

$4.92

4

CLUTCH SET,STAR | MODEL M/N/P This part replaces 12600-05851.

12600-05876

$245.72

4

CLUTCH SET,STAR | MODEL R This part replaces 12600-05871.

12600-05876

$245.72

4

CLUTCH SET,STAR | MODEL S/T This part replaces 12600-05872.

12600-05876

$245.72

5

.ROLLER,10X11 (10X11)

09261-10003

Unavailable

6

SPRING

09440-03004

Unavailable

7

PIECE

12633-05300

Unavailable

8

BEARING

09263-22031

Unavailable

9

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

10

SHIM

12649-05300

Unavailable
