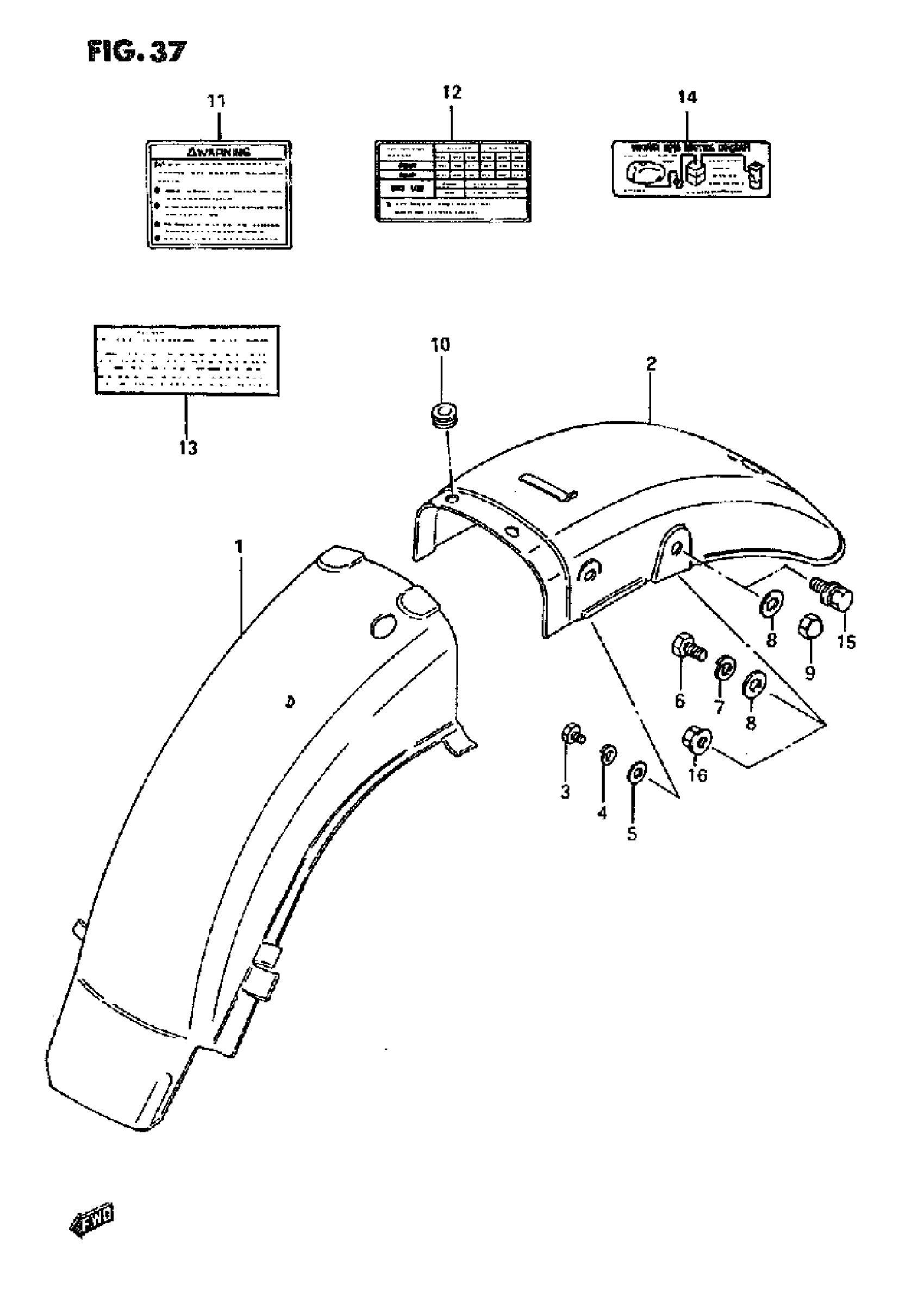

Suzuki GN125E (1995) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER, FRONT

63112-05302

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 63110-38302.

63110-38303

Unavailable

3

BOLT, FRONT | MODEL M

01500-06167

$1.97

3

BOLT, FRONT | MODEL N/P

01580-06167

$3.33

3

BOLT | MODEL R/S/T This part replaces 01580-06163.

01580-0616A

$2.42

4

LOCK WASHER | MODEL M

08321-01067

$2.13

5

WASHER | MODEL M

08322-01067

$2.13

6

BOLT, REAR | MODEL M/N/P

01500-08207

$2.53

7

.LOCK WASHER | MODEL M/N/P

08321-01087

$2.13

8

WASHER | MODEL M/N/P

08322-01087

$2.13

9

NUT | MODEL M/N/P

08313-10087

$2.28

10

CUSHION This part replaces 09320-05006.

09320-06504

$4.96

11

LABEL,GENERAL W | MODEL M/N/P/R/S This part replaces 68319-40C00.

68319-33E02

$7.25

11

LABEL,GENERAL W | MODEL I This part replaces 68319-33E00.

68319-33E02

$7.25

12

LABEL, TIRE AIR PRESSURE

68332-05320

Unavailable

13

LABEL,MANUAL NOTICE This part replaces 68353-26E01.

68353-26E03

$5.05

14

LABEL, PIPING DIAGRAM | CALIFORNIA ONLY

68387-38300

Unavailable

15

BOLT, REAR | MODEL R/S/T

01580-08257

$3.75

16

NUT | MODEL R/S/T This part replaces 08316-10083.

08316-1008B

$2.66

17

MANUAL OWNER'S | MODEL M

99011-05324-03A

Unavailable

17

MAMUAL, OWNER'S | MODEL N

99011-05326-03A

Unavailable

17

MANUAL OWNER'S | MODEL P

99011-05327-03A

Unavailable

17

MANUAL, OWNER'S | MODEL R

99011-05328-03A

Unavailable

17

MANUAL, OWNER'S | MODEL S

99011-05329-03A

Unavailable

17

MANUAL, OWNER'S | MODEL T This part replaces 99011-05350-03A.

99011-05351-03A

Unavailable
