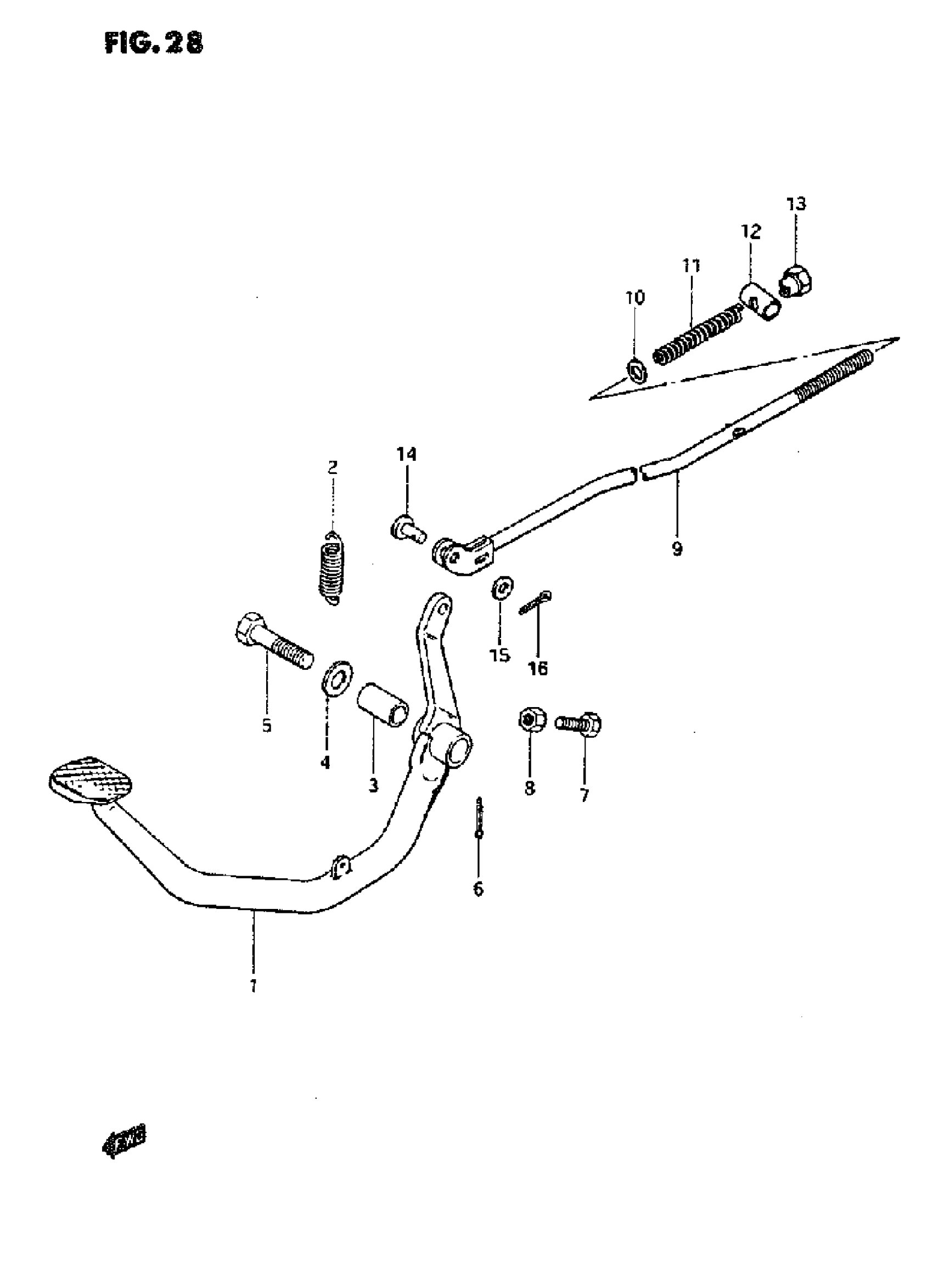

Suzuki GN125E (1995) REAR BRAKE Diagram

#

Description
Price

1

PEDAL,BRAKE This part replaces 43110-05301.

43110-05302

$49.95

2

SPRING

09443-14015

$2.89

3

SPACER

43231-05302

Unavailable

4

WASHER | MODEL M/N/P/R

08322-01107

$2.15

5

BOLT | MODEL M/N

09101-10020

Unavailable

5

BOLT | MODEL P/R/S/T

09116-10121

Unavailable

6

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

7

BOLT | MODEL M/N

09128-06028

$1.98

7

BOLT | MODEL P/R/S/T

09100-06009

$1.91

8

.NUT | MODEL M/N/P/R

08310-00067

$2.13

8

NUT | MODEL S/T This part replaces 08310-00063.

08310-0006A

$1.84

9

ROD ASSY, REAR BRAKE

43300-26501

$20.70

10

WASHER | MODEL M/N/P/R

08322-01067

$2.13

10

.WASHER | MODEL S/T This part replaces 08322-01063.

08322-0106B

$2.26

11

SPRING

09440-09004

$2.20

12

PIN

09209-11002

$2.19

13

.NUT This part replaces 09150-06009.

09150-06010

$3.10

14

PIN

09200-06013

$2.00

15

WASHER | MODEL M/N/P/R This part replaces 08322-21067.

08322-01067

$2.13

15

.WASHER | MODEL S/T This part replaces 08322-01063.

08322-0106B

$2.26

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
