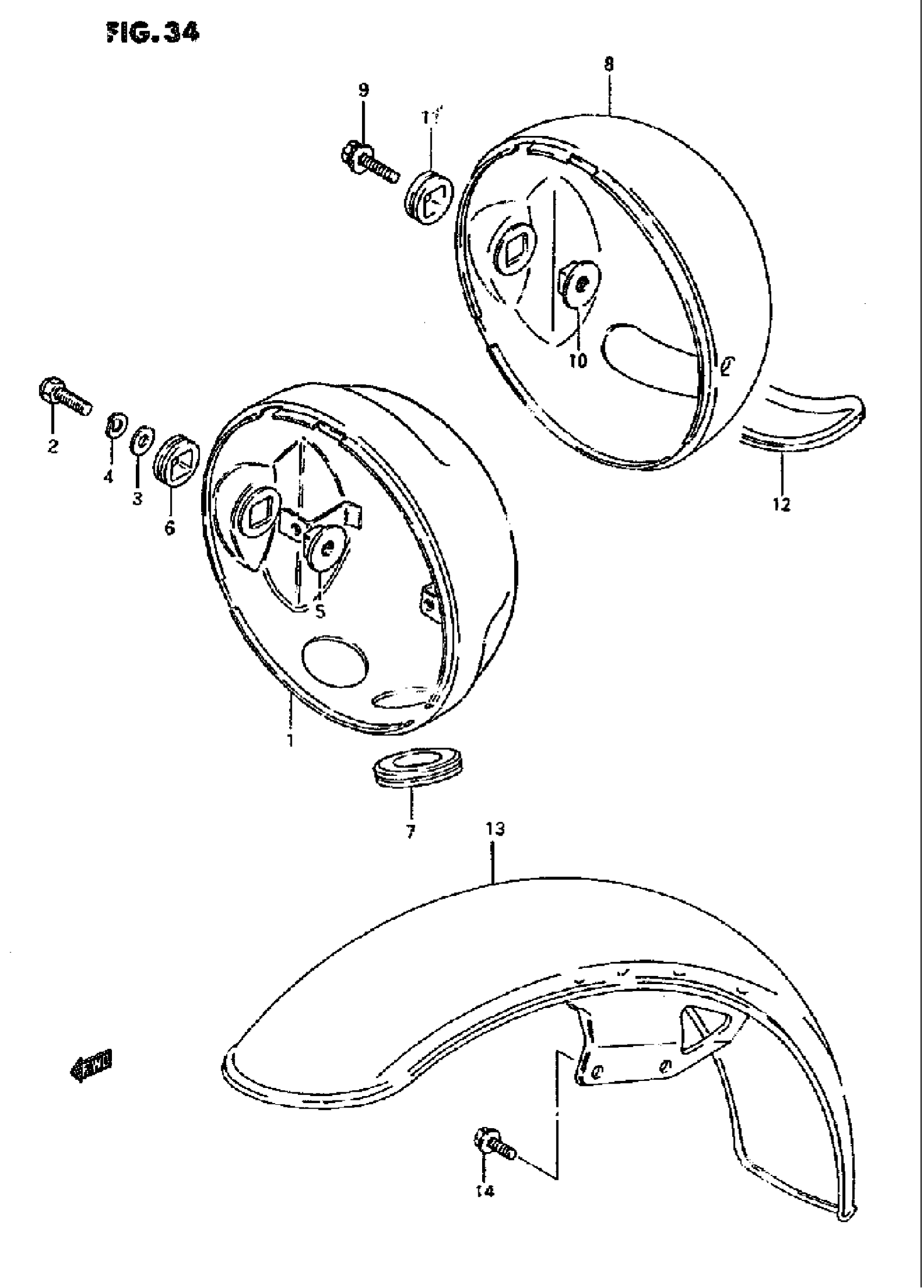

Suzuki GN125E (1995) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP | MODEL M/N/P/R ->51810-44201 This part replaces 51810-44200.

51810-44201

Unavailable

2

BOLT | MODEL M/N/P

01204-08207

$2.30

2

BOLT | MODEL R

01264-08207

Unavailable

3

WASHER | MODEL M/N/P

08322-01087

$2.13

4

.LOCK WASHER | MODEL M/N/P

08321-01087

$2.13

5

SPACER,HEADLAMP This part replaces 51821-36200.

51821-36210

$6.07

6

CUSHION,HEADLAM This part replaces 51827-27302.

51827-27303

$3.66

7

GROMMET. HOUSING | MODEL M/N/P/R FOR 51810-44200

51845-31031

$4.52

8

HOUSING, HEADLAMP | MODEL R/S/T

51810-44201

Unavailable

9

BOLT

01264-08207

Unavailable

10

SPACER,HEADLAMP This part replaces 51821-36200.

51821-36210

$6.07

11

CUSHION,HEADLAM This part replaces 51827-27302.

51827-27303

$3.66

12

MOLDING | MODEL R/S/T FOR 51810-44201 This part replaces 94631-05300.

94631-33C01

$18.02

13

FENDER, FRONT

53110-05301

Unavailable

14

BOLT | MODEL M/N/P

01570-08167

$3.85

14

BOLT | MODEL R/S/T This part replaces 01570-08163.

01570-0816A

$3.03
