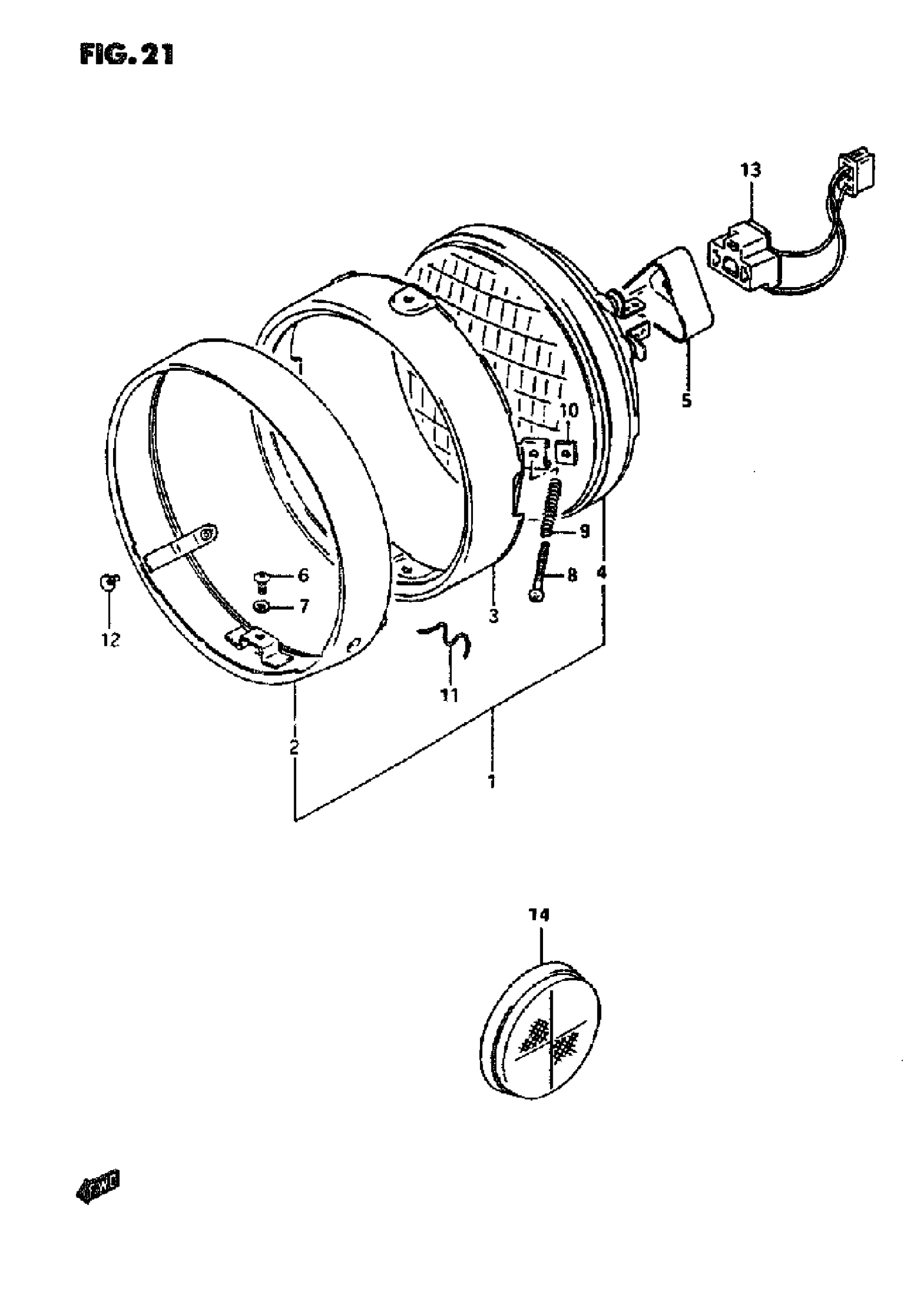

Suzuki GN125E (1995) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-44250.

35100-44251

Unavailable

2

RIM

35111-44250

Unavailable

3

RIM

35127-29610

Unavailable

4

HEADLAMP ASSY | 12V.45/40W This part replaces 35121-44250.

35100-44251

Unavailable

5

COVER

35173-29610

Unavailable

6

SCREW

35136-29610

Unavailable

7

LOCK WASHER | MODEL M/N/P/R This part replaces 08321-21057.

08321-0105A

$1.84

7

LOCK WASHER | MODEL S/T This part replaces 08321-01057.

08321-0105A

$1.84

8

SCREW. ADJUSTER

35151-31610

Unavailable

9

SPRING

35154-33630

Unavailable

10

NUT

35152-15611

$3.25

11

SPRING

35128-29611

Unavailable

12

SCREW | MODEL M/N/P

09127-05013

$1.49

12

SCREW | MODEL R/S/T

02112-05127

$1.97

13

LEAD WIRE. HEADLAMP

36853-30500

$11.63

14

REFLEX REFLECTOR, FRONT SIDE

35950-49080

$17.24
