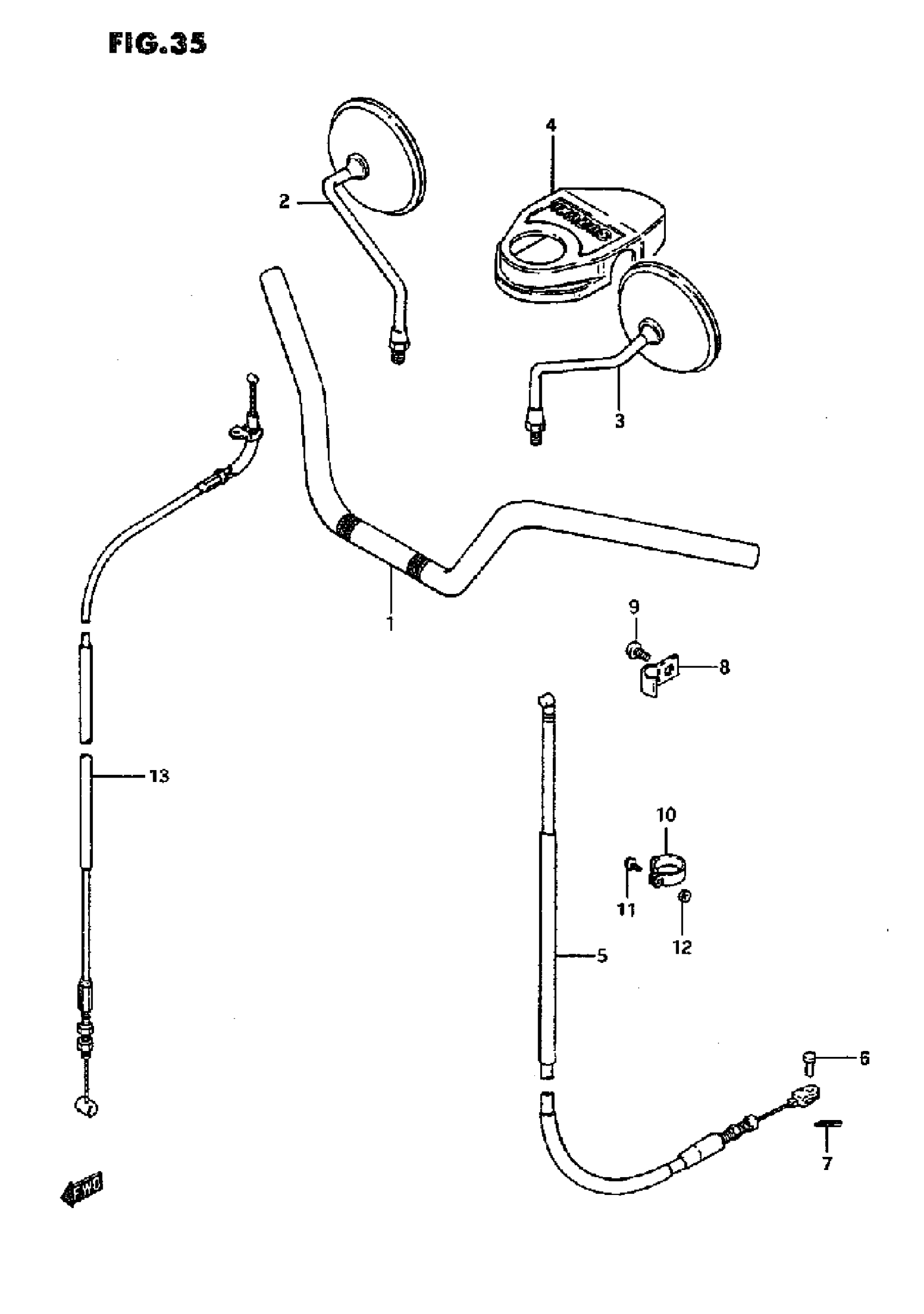

Suzuki GN125E (1995) HANDLEBAR - FRONT CABLE Diagram

#

Description
Price

1

HANDLEBAR

56110-05321

$142.13

2

MIRROR ASSY,RR This part replaces 56500-44200.

56500-44202

$69.23

3

MIRROR ASSY,LH This part replaces 56600-44200.

56600-44202

$97.60

4

COVER, STEERING HEAD

56170-05300

Unavailable

5

CABLE ASSY,CLUT This part replaces 58200-05391.

58200-053G1

$14.14

6

PIN

09200-06004

$2.20

7

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

8

CLAMP, NO.1

58626-37400

Unavailable

9

STOPPER, CL RLSE CAM SHAFT | MODEL M/N/P This part replaces 02152-06108.

02142-0610A

$1.49

9

STOPPER, CL RLSE CAM SHAFT | MODEL R/S/T This part replaces 02112-16103.

02142-0610A

$1.49

10

CLAMP, CLUTCH CABLE This part replaces 58285-05350.

58285-05351

$3.42

11

SCREW | MODEL M/N/P

02112-05164

$2.63

11

.SCREW | MODEL R/S/T This part replaces 02112-05163.

02112-0516A

$1.49

12

.NUT | MODEL M/N/P This part replaces 08310-22055.

09140-05006

$2.19

12

NUT | MODEL R/S/T This part replaces 08310-00053.

08310-0005A

$1.84

13

CABLE ASSY, THROTTLE

58300-05320

Unavailable
