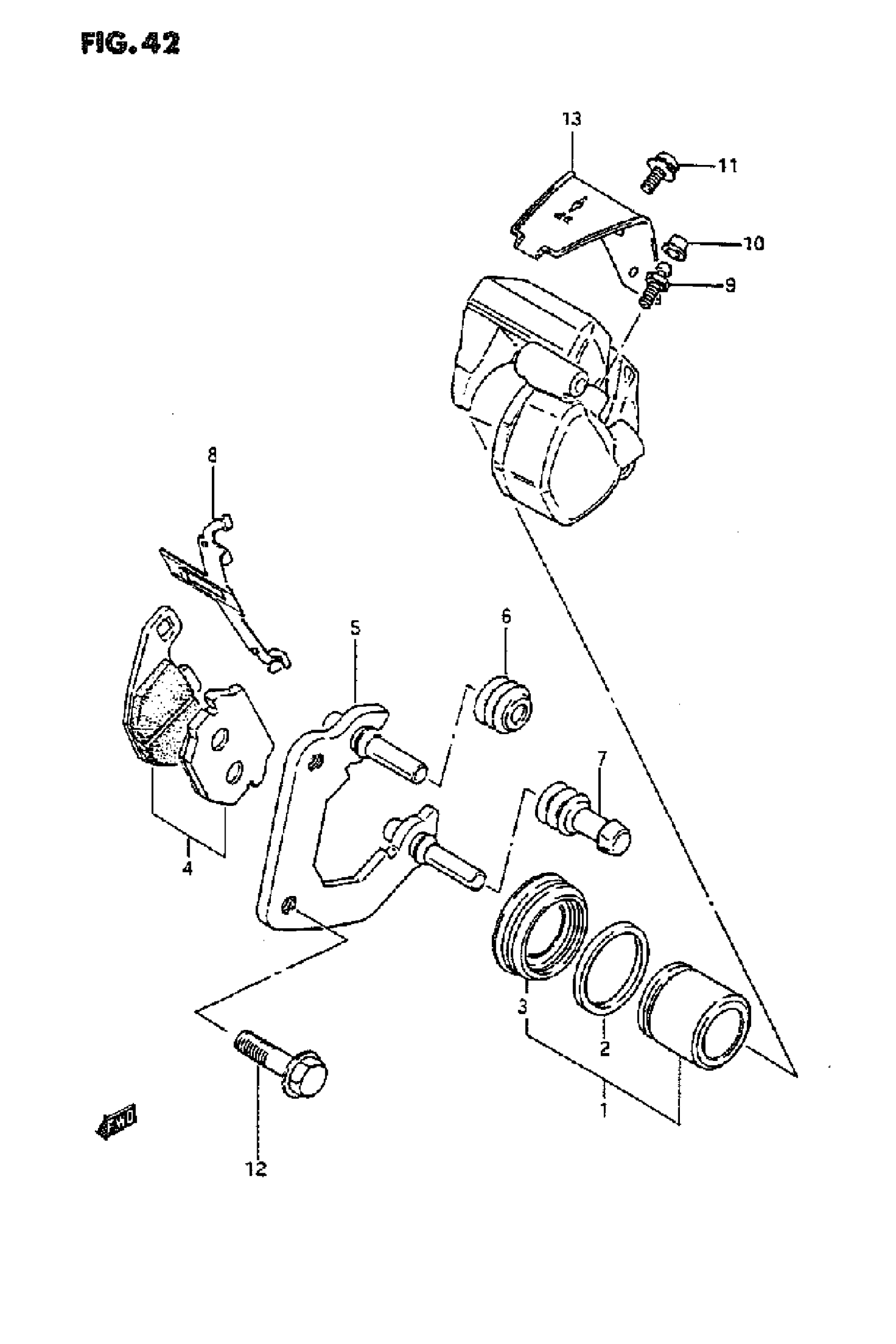

Suzuki GN125E (1995) FRONT CALIPER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | ->59300-04712 This part replaces 59300-04711.

59300-04713

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 59300-04712.

59300-04713

Unavailable

1

PISTON SET This part replaces 59300-04850.

59300-04851

$79.73

2

SEAL,PISTON This part replaces 59107-39100.

59107-35F00

$11.80

3

BOOT, PISTON

59308-36500

$8.42

4

PAD SET | ->59300-04831 This part replaces 59300-04830.

59300-04831

$37.02

4

PAD SET

59300-04831

$37.02

5

CARRIER, LH

59350-36501

Unavailable

6

.BOOT, AXLE

59312-36500

$5.07

7

.INSULATOR, AXLE

59313-36500

$5.99

8

SPRING

59315-36500

$9.38

9

BLEEDER

59121-18410

$8.73

10

CAP

55156-66310

$5.17

11

SCREW This part replaces 02112-75123.

02112-7512A

$2.42

12

BOLT | MODEL M/N/P This part replaces 01517-08307.

01550-08307

$3.54

12

BOLT | MODEL R/S/T This part replaces 01550-08303.

01550-0830A

$3.04

13

PROTECTOR, CALIPER

59313-13001

Unavailable
