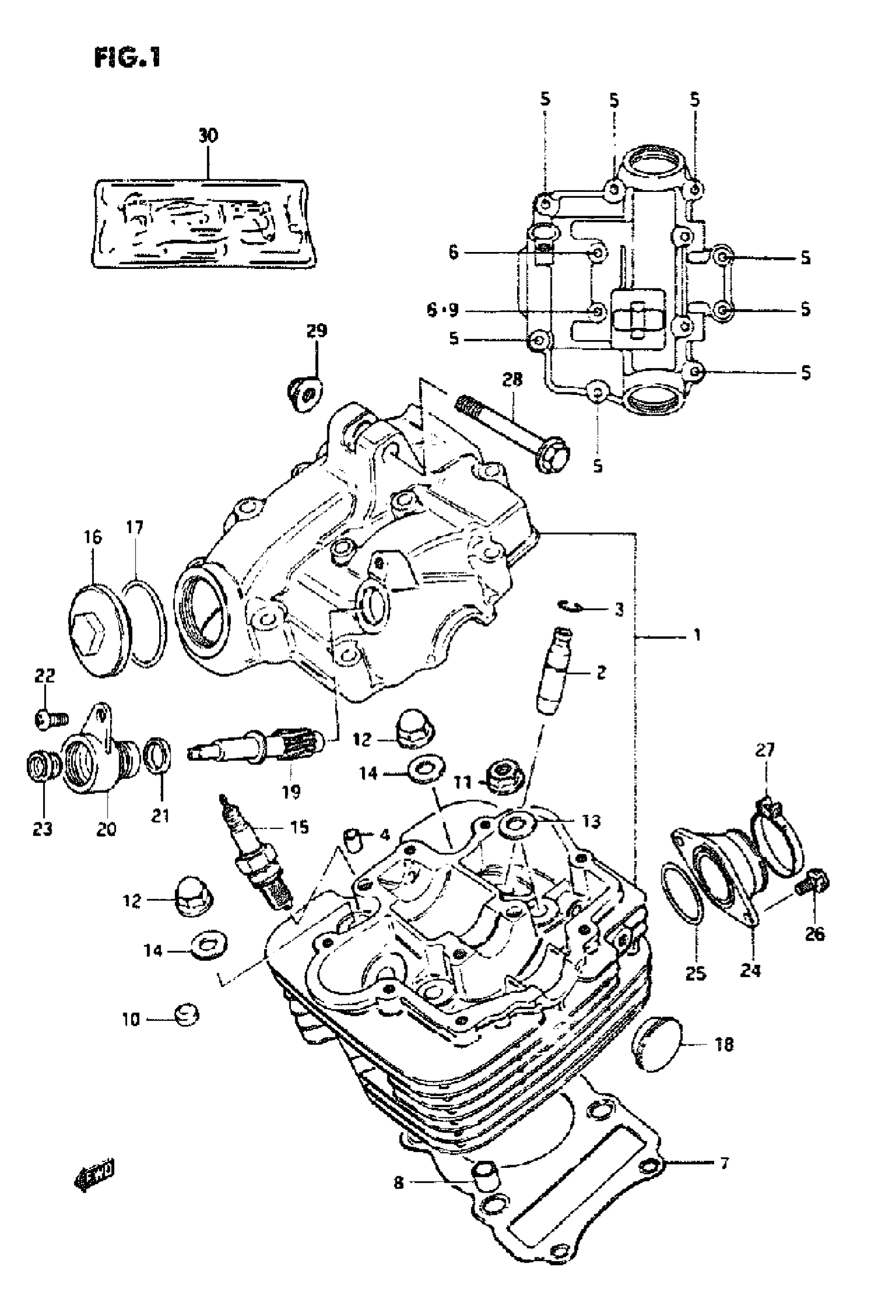

Suzuki GN125E (1995) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-05263

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$32.10

3

.RING (10X85)

09381-10004

$1.50

4

PIN

09206-08001

$1.78

5

BOLT (6X35)

01550-06357

$2.77

6

BOLT (6X6O)

01550-06607

$4.17

7

GASKET, CYLINDER HEAD This part replaces 11141-05201.

11141-05202

$12.15

8

PIN. CYLINDER HEAD

04211-11169

$1.78

9

WASHER

09168-06023

$2.35

10

PAD, RUBBER

11151-45000

$3.84

11

NUT | MODEL M/N/P/R

08316-10087

$2.26

11

NUT | MODEL S/T This part replaces 08316-10083.

08316-1008B

$2.66

12

NUT

09159-08074

$5.36

13

WASHER

09160-08039

$2.03

14

GASKET | -E.NO.137509 This part replaces 09168-08012.

09168-08013

$2.92

14

GASKET (8.5XL7X2.3) | E.NO.137510-

09168-08021

$2.61

15

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$3.32

15

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$5.18

16

CAP INSPECTION This part replaces 11175-37111.

11175-18920

$12.20

17

.O RING (D:3,ID:29.5)

09280-30001

$1.72

18

PLUG. HEAD

09241-22002

$5.24

19

NO DESCRIPTION AVAILABLE This part replaces 26431-05201.

26431-05210

Unavailable

20

SLEEVE

26441-49000

$30.58

21

SEAL BAND

26451-45000

$5.05

22

SCREW

09128-05101

$1.49

23

OIL SEAL

09289-05002

$8.43

24

PIPE, INTAKE This part replaces 13110-05300.

13101-05300

$36.47

25

0 RING

09280-32006

$2.28

26

SCREW | MODEL M/N/P This part replaces 02112-36165.

02112-3616A

$1.97

26

SCREW | MODEL R/S/T This part replaces 02112-36163.

02112-3616A

$1.97

27

CLAMP

09402-44208

$5.80

28

BOLT (8X50)

09103-08081

$3.72

29

NUT

08319-31087

$2.32

30

GASKET SET | MODEL M This part replaces 11401-05860.

11401-05864

Unavailable

30

GASKET SET | MODEL N/P/R This part replaces 11401-05861.

11401-05864

Unavailable

30

GASKET SET | MODEL S/T This part replaces 11401-05862.

11401-05864

Unavailable
