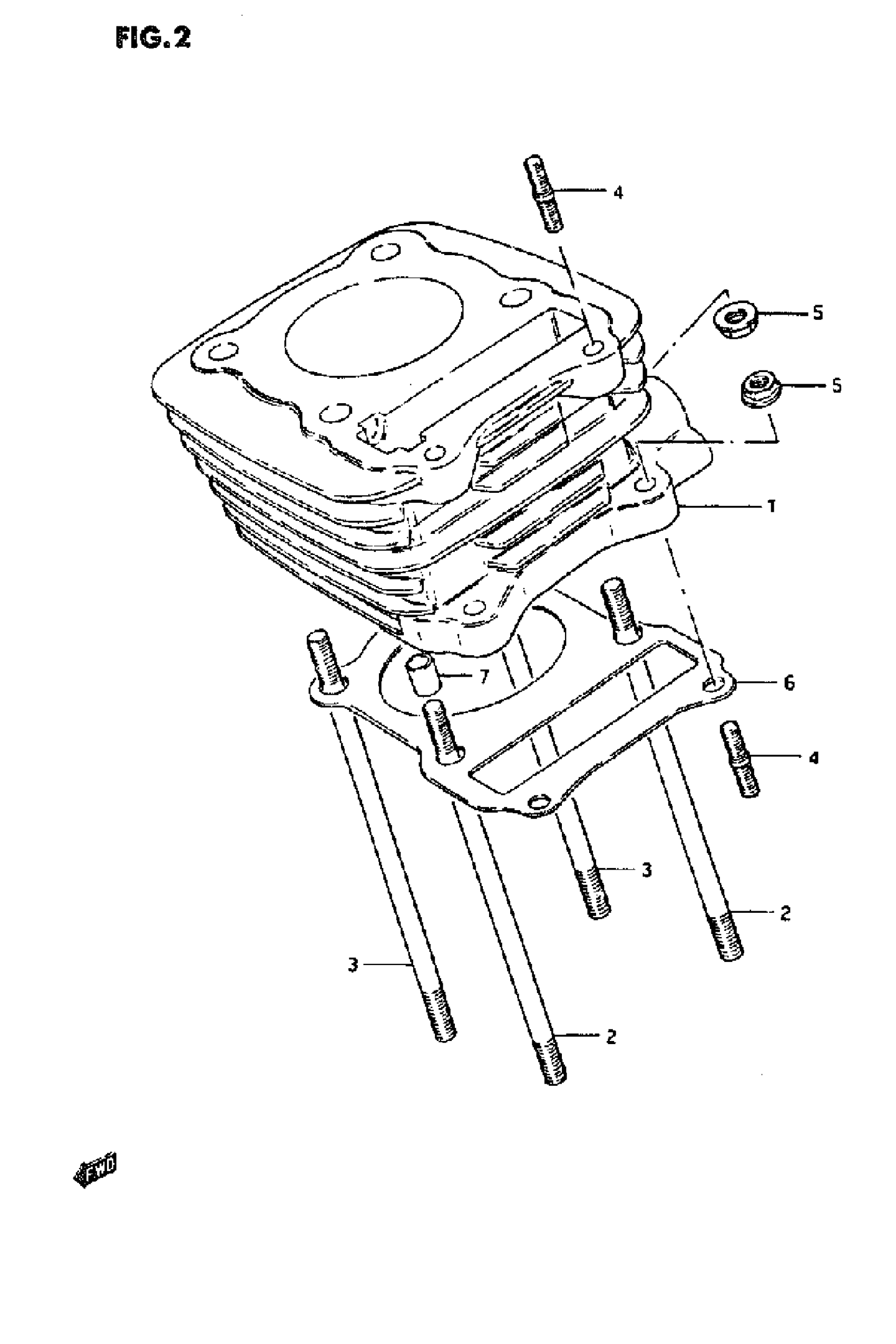

Suzuki GN125E (1995) CYLINDER Diagram

#

Description
Price

1

CYLINDER | MODEL M/N/P This part replaces 11210-05201.

11210-05203-0F0

$392.77

1

CYLINDER | MODEL R/S/T This part replaces 11210-05202.

11210-05203-0F0

$392.77

2

STUD BOLT (L:150)

09108-08062

$6.97

3

STUD BOLT (L:155)

09108-08089

$5.57

4

STUD BOLT (L:25)

01421-06257

$2.85

5

NUT | MODEL M/N/P This part replaces 09159-06017.

08319-31067

$2.03

5

NUT | MODEL R/S/T

08316-10067

$2.25

6

.GASKET, CYLINDER | MODEL N This part replaces 11241-05200.

11241-05311

$5.62

6

.GASKET, CYLINDER | MODEL N/P/R This part replaces 11241-05310.

11241-05311

$5.62

6

.GASKET, CYLINDER | MODEL S/T

11241-05311

$5.62

7

PIN (L:14)

04211-11149

$1.78
