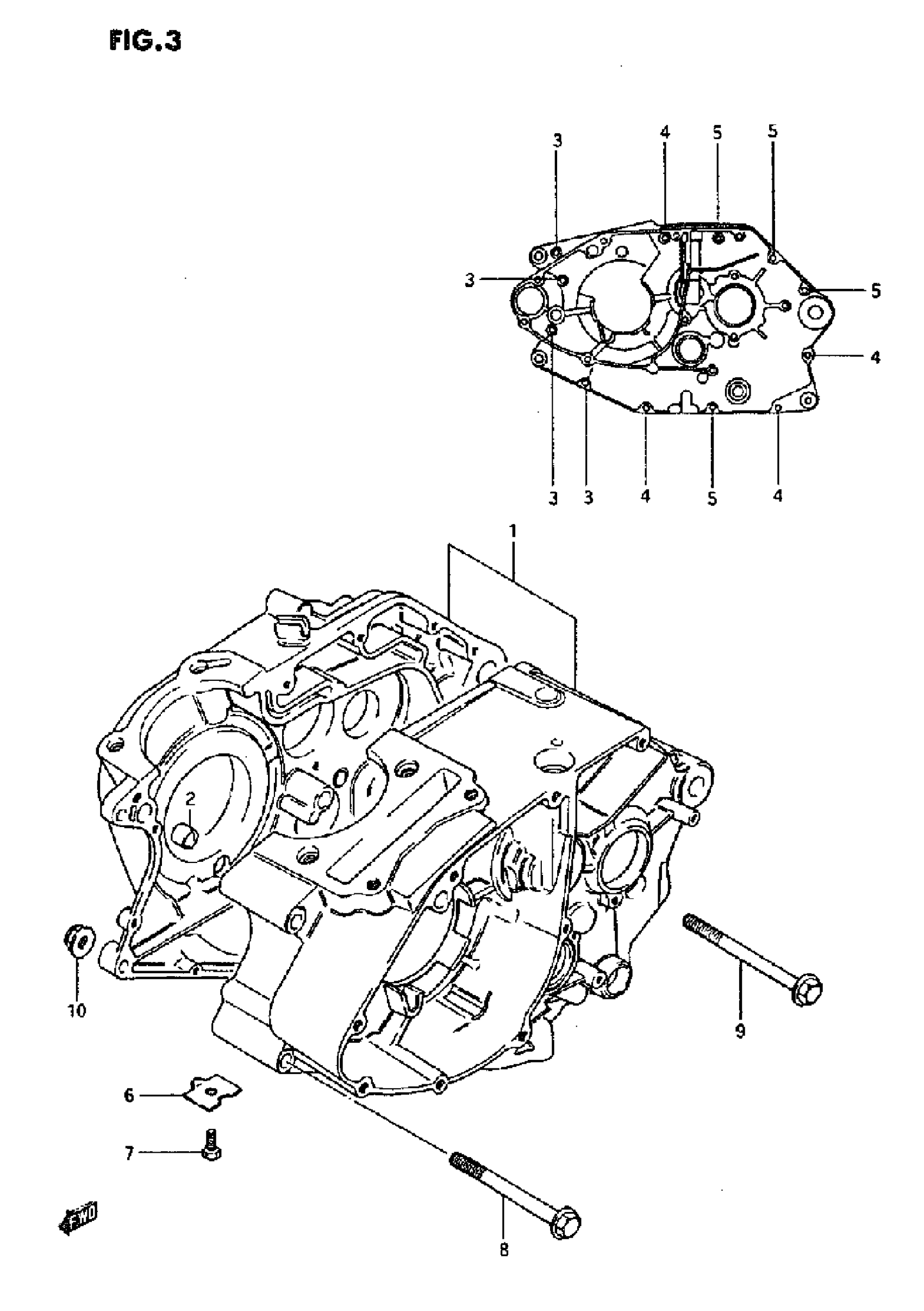

Suzuki GN125E (1995) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL M/N

11300-05301

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 11300-05302.

11300-05304

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R/S/T This part replaces 11300-05303.

11300-05304

Unavailable

2

PIN

04211-13189

$2.19

3

BOLT (6X55)

01547-06557

$2.32

4

BOLT (6X6O)

01547-06607

$3.18

5

BOLT,CARB This part replaces 01547-06757.

09103-06522

$2.95

6

.PLATE, OIL GALLEY PLUG

11319-05200

$3.37

7

BOLT (6XL0) | MODEL M/N/P

01500-06107

$2.06

7

BOLT | MODEL R/S/T This part replaces 01500-06103.

01500-0610B

$1.81

8

BOLT (8X8O)

09103-08016

$29.80

9

BOLT (8X88)

09103-08010

$31.68

10

NUT

08319-31087

$2.32
