1995 Suzuki GN125E Cam Shaft - Valve Diagram

← All diagrams

Find the part on the Cam Shaft - Valve diagram for your 1995 Suzuki GN125E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

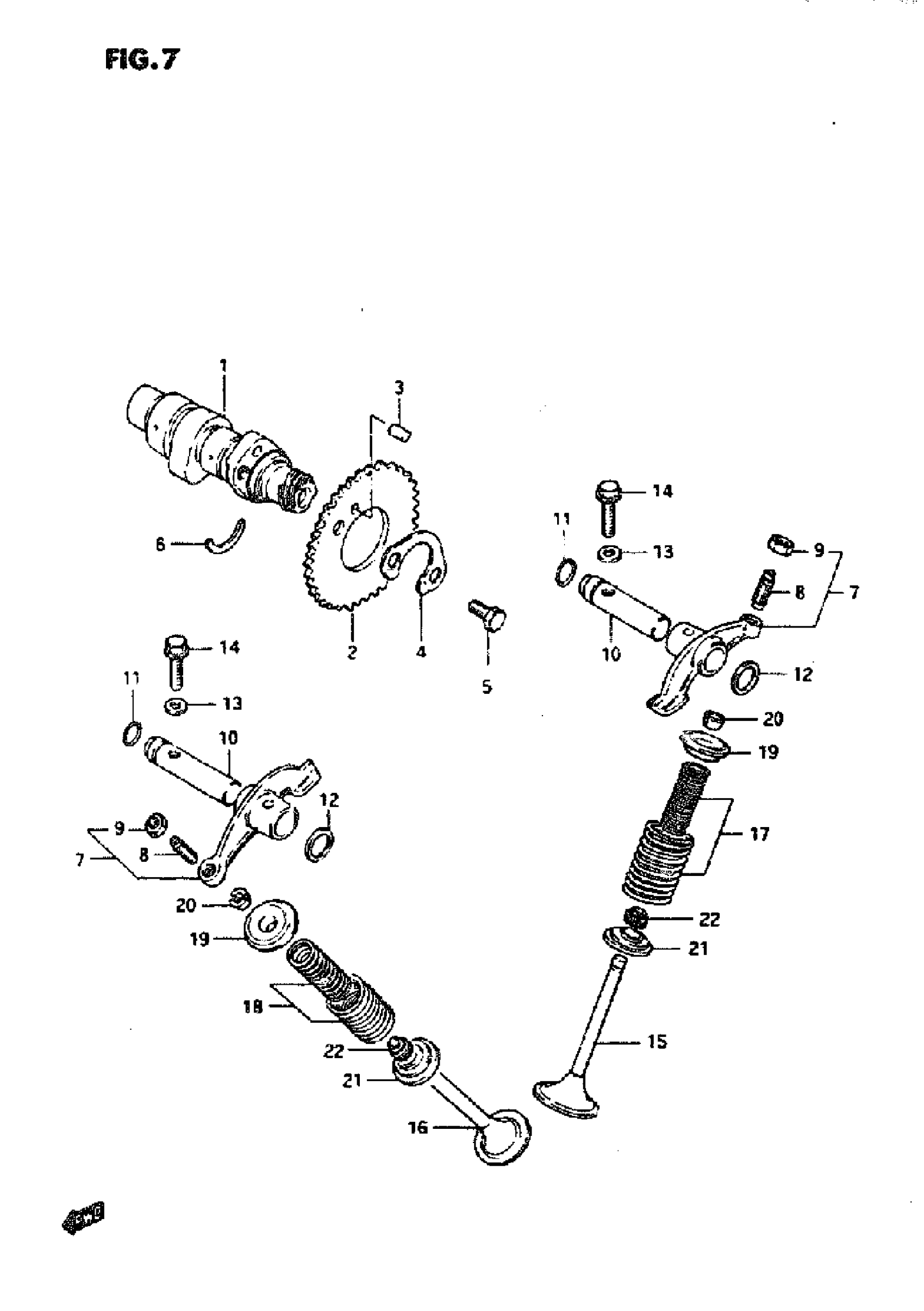

1995 Suzuki GN125E Cam Shaft - Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT This part replaces 12711-05201.

12711-05230

1
Out of stock

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

1
Out of stock

3

PIN

09261-05005

1
Out of stock

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

1
Out of stock

5

BOLT

09111-06032

2
Out of stock

6

C-RING

09390-22002

1
Out of stock

7

ARM ASSY, VALVE ROCKER | MODEL M/N/P/R This part replaces 12840-05200.

12850-25C00

2
Out of stock

7

ARM ASSY, VALVE ROCKER | MODEL S/T

12850-25C00

2
Out of stock

8

.SCREW, TAPPET ADJUSTING

12842-32411

2
Out of stock

9

.NUT, ADJUSTING SCREW

12843-32400

2
Out of stock

10

SHAFT, VALVE ROCKER ARM

12861-05201

2
Out of stock

11

.O RING (D:1.9,ID:8.6)

09280-09005

2
Out of stock

12

WAVE WASHER

09164-12021

2
Out of stock

13

GASKET

09168-06023

2
Out of stock

14

BOLT | MODEL M/N/P This part replaces 01517-06257.

01550-06257

2
Out of stock

14

BOLT | MODEL R/S/T

01550-06257

2
Out of stock

15

VALVE, INTAKE | MODEL M/N/P/R This part replaces 12911-24400.

12911-04B00

1
Out of stock

15

VALVE, INTAKE | MODEL S/T

12911-04B00

1
Out of stock

16

VALVE, EXHAUST

12912-24400

1
Out of stock

17

SPRING SET, VALVE, INTAKE

12920-05210

1
Out of stock

18

SPRING SET, VALVE

12920-05240

1
Out of stock

19

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

2
Out of stock

20

COTTER, VALVE

12932-24400

4
Out of stock

21

SEAT, VALVE SPRING | MODEL M/N/P This part replaces 12933-49200.

12933-49201

2
Out of stock

21

SEAT, VALVE SPRING | MODEL R/S/T

12933-49201

2
Out of stock

22

OIL SEAL (5.5X11X8.2) | MODEL M/N/P This part replaces 09289-05003.

09289-05015

2
Out of stock

22

OIL SEAL | MODEL R/S/T

09289-05015

2
Out of stock
