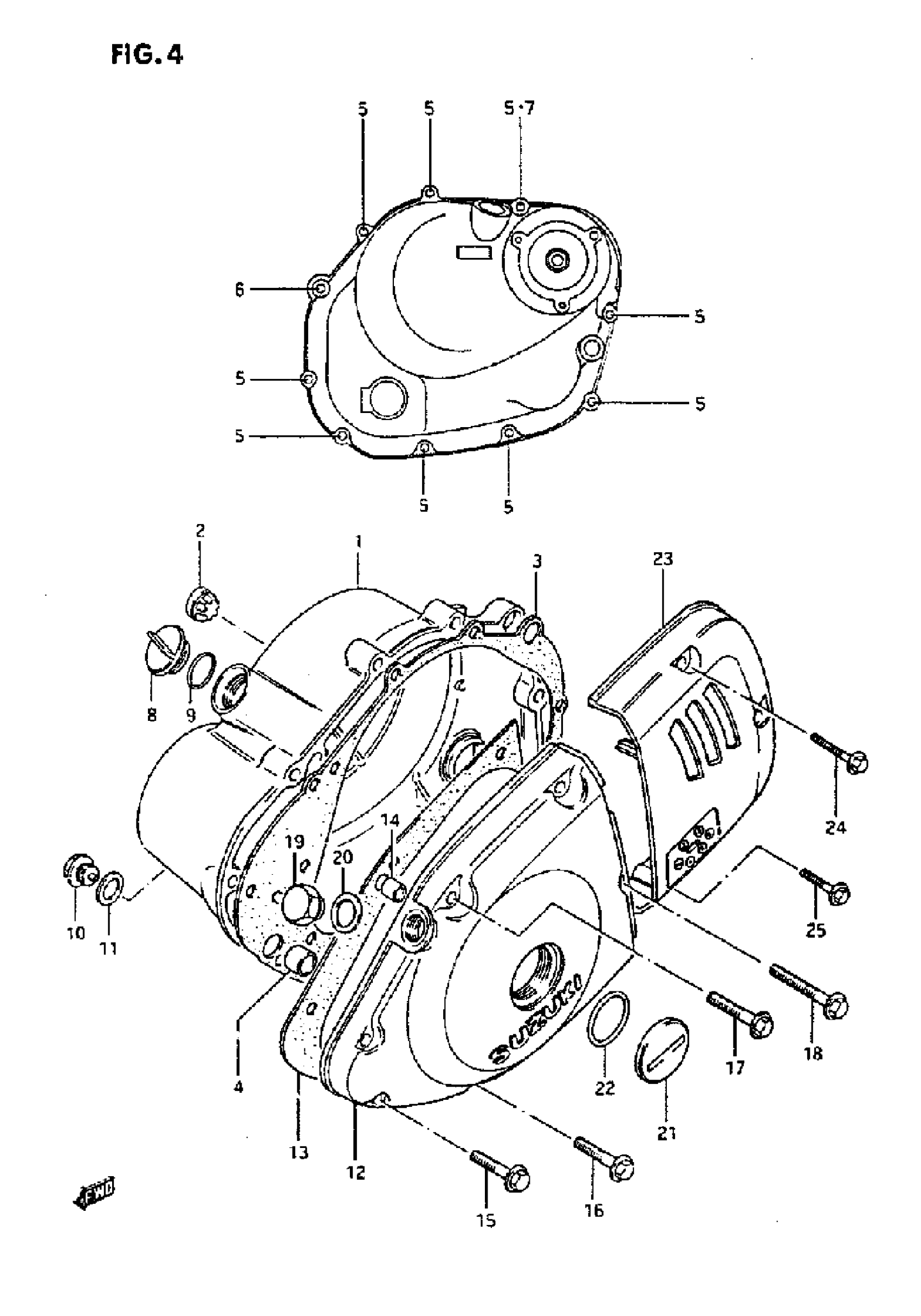

Suzuki GN125E (1995) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL M/N This part replaces 11340-05301.

11340-05302

Unavailable

1

COVER, CLUTCH | MODEL R/S/T

11340-05302

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$15.78

3

GASKET, CLUTCH COVER | MODEL WN/P/R This part replaces 11482-05310.

11482-05311

$26.67

3

GASKET, CLUTCH COVER | MODEL S/T

11482-05311

$26.67

4

PIN

04211-13189

$2.19

5

BOLT (6X3O)

01547-06307

$2.06

6

BOLT (6X45)

01547-06457

$2.31

7

GASKET | MODEL M/N/P/R

09168-06023

$2.01

7

GASKET | MODEL S/T

09168-06024

$2.19

8

PLUG, OIL FILLER | MODEL M/N/P

09259-20007

$6.89

8

PLUG, OIL FILLER | MODEL R/S/T This part replaces 09259-20018.

09259-20007

$6.89

9

0 RING

09280-17003

$1.64

10

PLUG | MODEL M/N/P This part replaces 09247-14012.

09247-14026

$3.38

10

PLUG. OIL CHECK | MODEL R/S/T

09247-14026

$3.38

11

GASKET

09168-14002

$2.83

12

COVER, MAGNETO | MODEL M/N/P This part replaces 11351-05301.

11351-05302

Unavailable

12

COVER, MAGNETO | MODEL R/S/T

11351-05302

Unavailable

13

GASKET, MAGNETO COVER | MODEL M/N/P/R This part replaces 11483-05310.

11483-05312

$9.78

13

GASKET, MAGNETO COVER | MODEL S/T This part replaces 11483-05311.

11483-05312

$9.78

14

PIN

04211-09129

$1.64

15

BOLT (6X3O)

01547-06307

$2.06

16

BOLT (6X35)

01547-06357

$2.01

17

BOLT (6X4O)

01547-06407

$2.34

18

BOLT (6X5O)

01547-06507

$2.42

19

PLUG T.D.C

09247-12104

$2.73

20

GASKET

09168-12002

$1.59

21

PLUG | MODEL M/N/P This part replaces 09259-26003.

09259-26011

$9.96

21

PLUG | MODEL R/S/T

09259-26011

$9.96

22

0 RING

09280-22008

$2.10

23

COVER, ENGINE SPROCKET | MODEL M/N/P This part replaces 11361-05300.

11361-05301

Unavailable

23

COVER, ENGINE SPROCKET | MODEL R/S/T

11361-05301

Unavailable

24

BOLT

01547-05357

Unavailable

25

BOLT

01547-05257

$2.77
