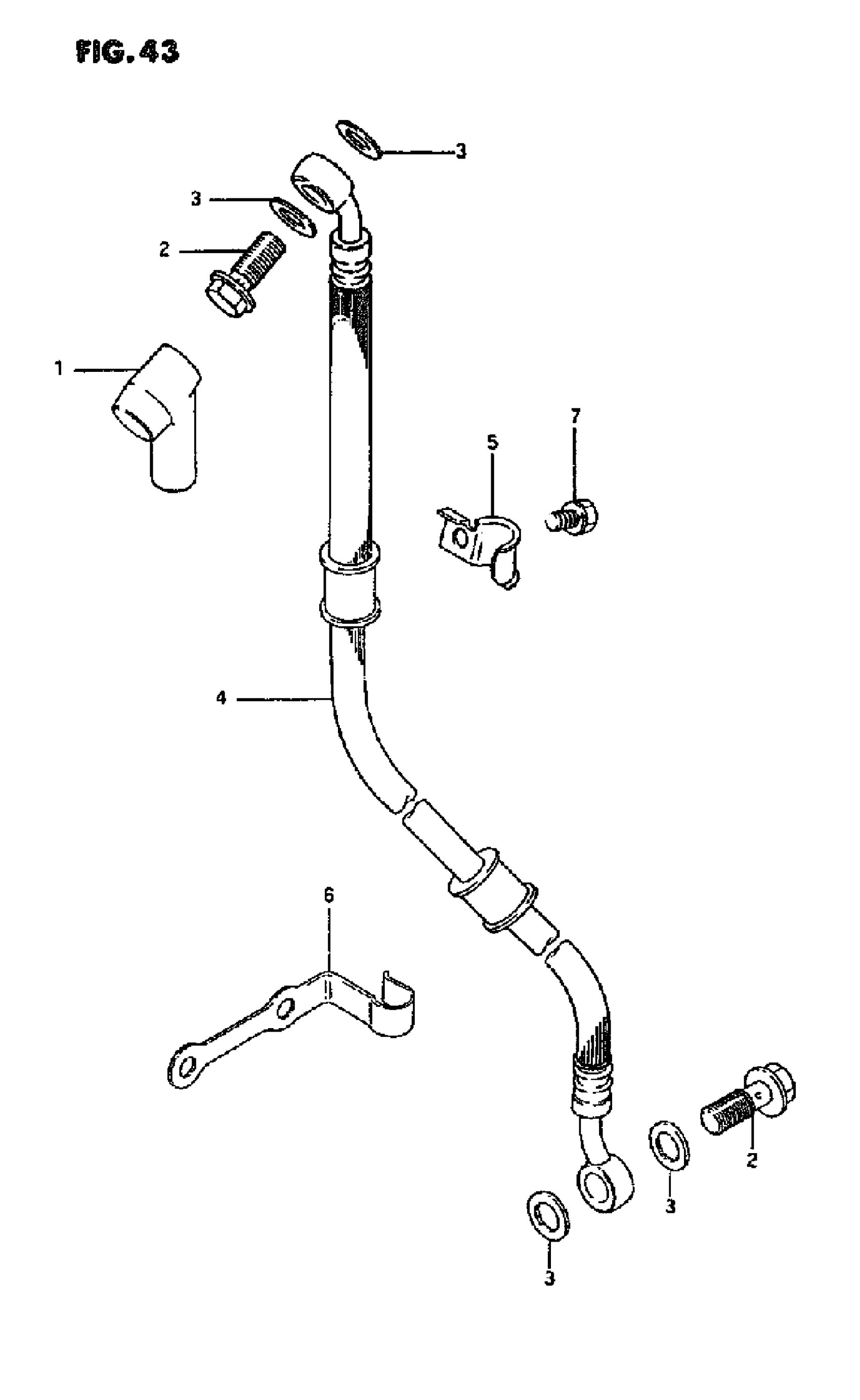

Suzuki GN125E (1995) BRAKE HOSE Diagram

#

Description

Price

1

BOOT, MASTER CYLINDER | MODEL M/N

59711-49001

$7.51

2

BOLT (L0XL.00X24) | MODEL M/N/P

09360-10017

$3.42

2

UNION | MODEL R/S/T This part replaces 09360-10039.

09360-10061

$6.43

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

HOSE, BRAKE

59480-05350

Unavailable

5

CLAMP. BRAKE HOSE

59246-39100

Unavailable

6

CLAMP, BRAKE HOSE

59268-11300

Unavailable

7

BOLT | MODEL M/N/P This part replaces 01137-06128.

01570-06127

$2.50

7

BOLT | MODEL R/S/T This part replaces 01570-06123.

01570-0612A

$2.63
