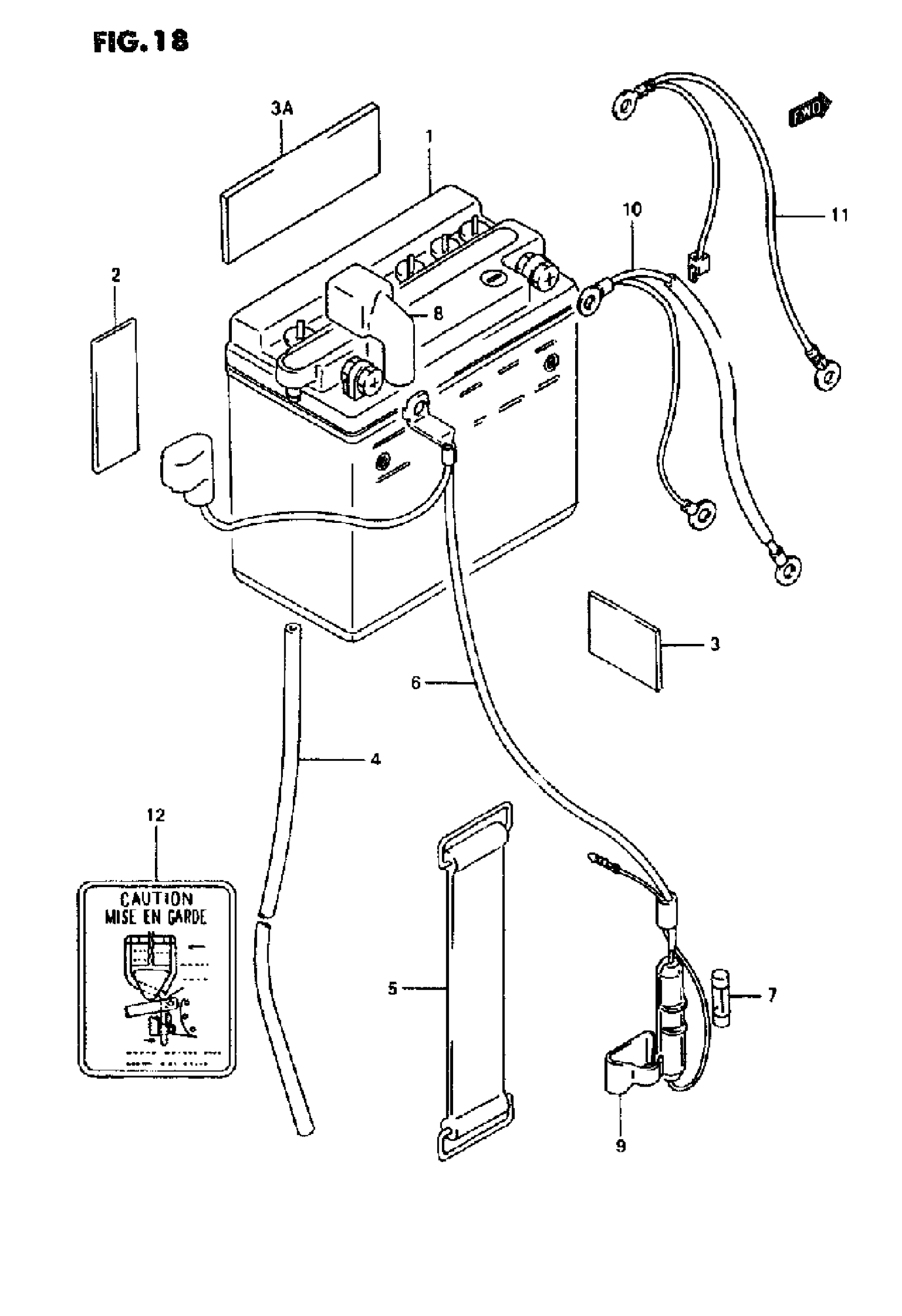

Suzuki GN125E (1995) BATTERY Diagram

#

Description
Price

1

YB7-A BATTERY(Y This part replaces 33610-10360.

33610-10311

$100.82

2

PROTECTOR | CUT AS REQUIRED PROFILE

33651-37000

$4.48

3

PROTECTOR | CUT AS REQUIRED PROFILE

33651-37000

$4.48

3

CUSHION, REAR FENDER REAR This part replaces 33652-28000.

33651-37000

$4.48

4

HOSE,BATTERY EX | MODEL M/N/P This part replaces 33680-31003.

33680-16A11

$6.78

4

HOSE,BATTERY EX | MODEL R/S/T This part replaces 33680-16A10.

33680-16A11

$6.78

5

BAND

09462-00020

Unavailable

6

LEAD WIRE, BATTERY | MODEL M/N/P

36740-05310

Unavailable

7

FUSE (15A) | MODEL M/N/P

09481-15001

$2.06

8

CAP, TERMINAL | MODEL M/N/F

33624-43500

$5.50

9

HOLDER, FUSE CASE

36791-46700

$5.50

10

LEAD WIRE, BATTERY | MODEL M/N/P

33850-34500

Unavailable

11

LEAD WIRE, BATTERY | MODEL R/S/T

33860-05550

Unavailable

12

PLATE, BATTERY CAUTION

33690-05360

Unavailable
