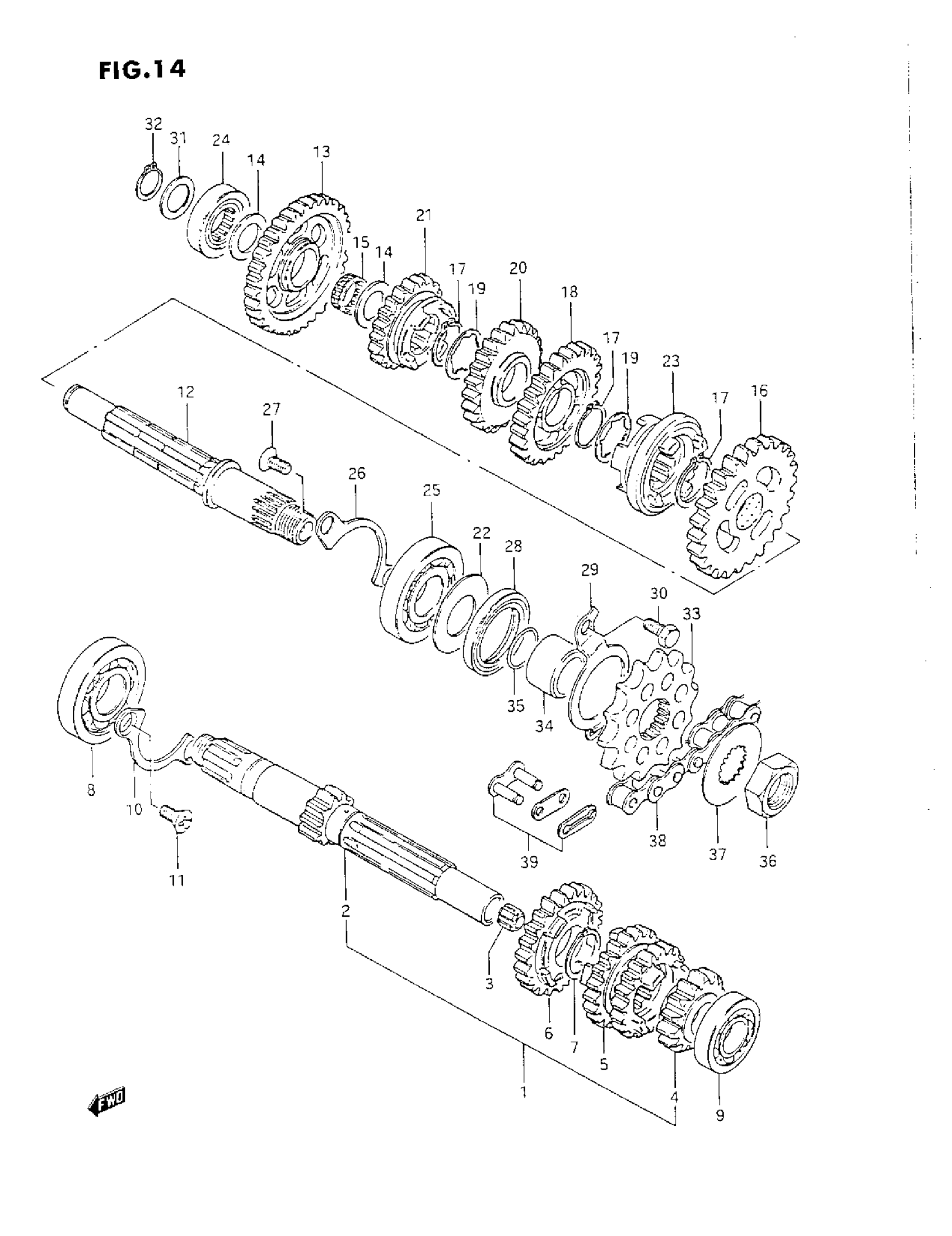

Suzuki GN125E (1993) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT

24120-05302

Unavailable

2

SHAFT, COUNTER (NT:11) This part replaces 24121-05201.

24120-05810

Unavailable

3

BUSH

24125-38201

$6.38

4

GEAR, 2ND DRIVE (NT:14) This part replaces 24221-05300.

24221-05301

Unavailable

5

GEAR, 3RD & 4TH DRIVEN This part replaces 24231-05202.

24231-05203

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 24251-05202.

24251-05203

Unavailable

7

CIRCLIP

09380-20009

$2.20

8

BEARING, DRIVE SHAFT LH | MODEL M/N This part replaces 09262-20062.

09262-20069

$23.28

8

BEARING, RH | MODEL P/R

09262-20069

$23.28

9

BEARING, LH

08123-60027

$23.62

10

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

11

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

12

DRIVE SHAFT

24130-05300

Unavailable

13

GEAR, 1ST DRIVEN (NT:33) This part replaces 24311-05200.

24311-05202

Unavailable

14

WASHER

08211-15251

$1.67

15

BEARING

09263-15023

Unavailable

16

GEAR, 2ND DRIVEN (NT:26) This part replaces 24320-05201.

24320-05202

Unavailable

17

CIRCLIP

09380-20009

$2.20

18

GEAR, 3RD DRIVEN (NT:26) This part replaces 24331-05201.

24331-05203

Unavailable

19

WASHER

09167-20011

$2.31

20

GEAR, 4TH DRIVEN (NT:23) This part replaces 24341-05201.

24341-05203

Unavailable

21

NO DESCRIPTION AVAILABLE This part replaces 24351-05201.

24351-05202

Unavailable

22

WASHER

24359-05200

Unavailable

23

WHEEL, SLIDING DOG

24421-05300

Unavailable

24

BEARING, RH

09263-15024

Unavailable

25

BEARING, DRIVE SHAFT LH | MODEL M/N This part replaces 09262-20062.

09262-20069

$23.28

25

BEARING, LH | MODEL P/R

09262-20069

$23.28

26

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

27

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

28

OIL SEAL, LH

09283-27010

$10.30

29

NO DESCRIPTION AVAILABLE This part replaces 24751-05201.

24751-05210

Unavailable

30

BOLT | MODEL M/N/P This part replaces 01107-06106.

01500-0610B

$1.81

30

BOLT | MODEL R This part replaces 01500-06103.

01500-0610B

$1.81

31

WASHER

08211-15201

$2.38

32

CIRCLIP This part replaces 08331-31156.

08331-3115A

$2.25

33

SPROCKET (NT:14) | MODEL M/N This part replaces 27511-41301.

27511-41310

$23.98

33

SPROCKET (NT:14) | MODEL P/R

27511-41310

$23.98

34

SPACER

27531-05200

$18.02

35

O-RING

09280-19005

$2.33

36

NUT

09140-16017

$6.97

37

WASHER

09167-20012

$2.44

38

CHAIN, DRIVE (RK428FDZ,124LE) This part replaces 27600-36012.

27600-29B20-124

Unavailable

39

JOINT, CHAIN (DID)

27620-36012

Unavailable

39

JOINT, CHAIN (RK)

27620-40220

$11.07
