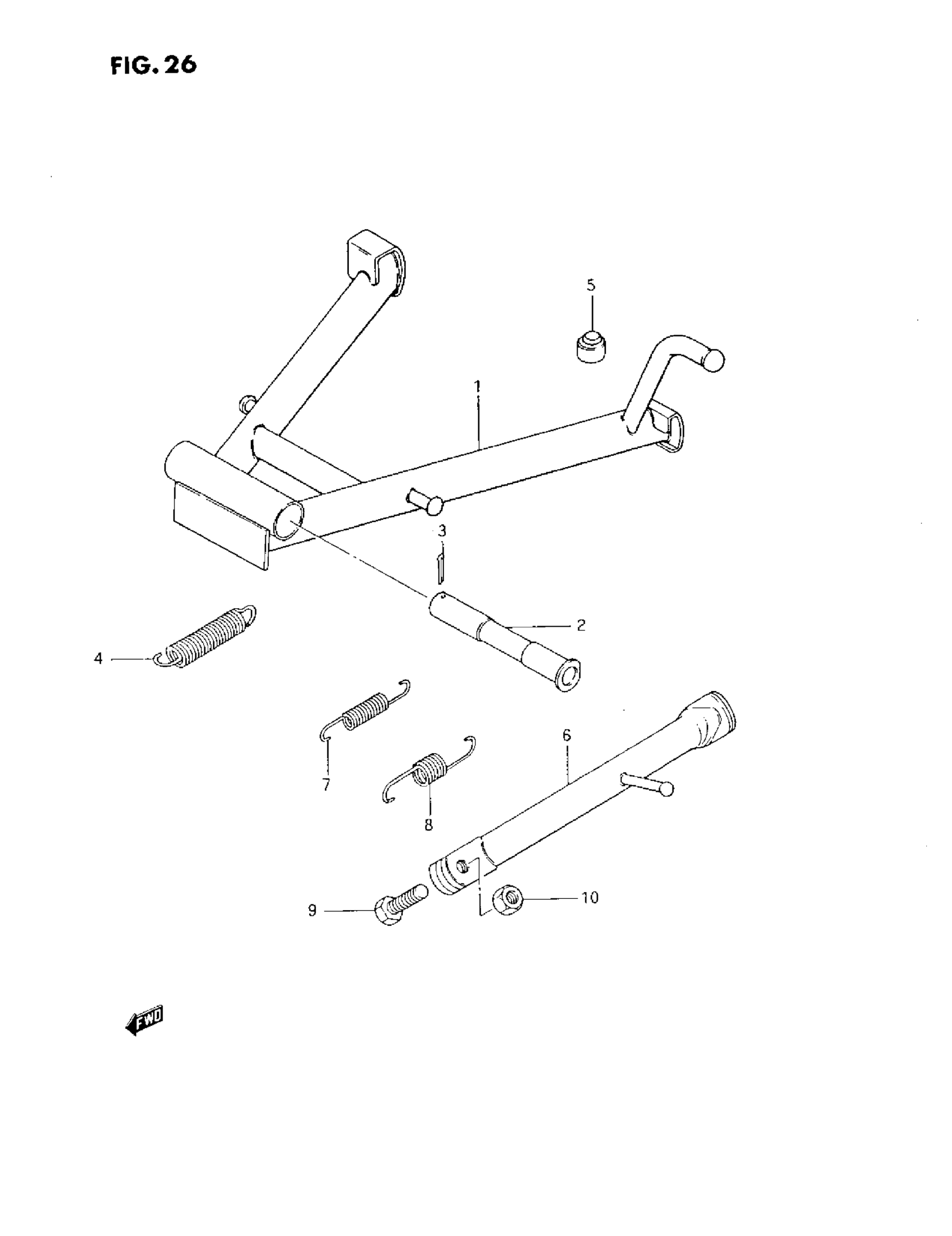

Suzuki GN125E (1993) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-05303

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 42211-36502.

42211-49F00

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL N/P/R This part replaces 42211-36503.

42211-49F00

Unavailable

3

PIN This part replaces 04111-30308.

04111-3030A

$1.49

4

SPRING, CENTER This part replaces 09443-18006.

09443-18006-XC0

$7.82

5

CUSHION

09321-10001

$2.61

6

STAND, PROP

42310-05320

Unavailable

7

SPRING, INNER

09443-12025

Unavailable

8

SPRING, OUTER

09443-19006

Unavailable

9

BOLT (10X30) | MODEL M/N/P

09100-10067

$2.61

9

BOLT (10X30) | MODEL R

09100-10501

Unavailable

10

NUT | MODEL M/N/P This part replaces 08310-22107.

08310-00107

$2.19

10

NUT | MODEL R

09140-10043

$2.68
