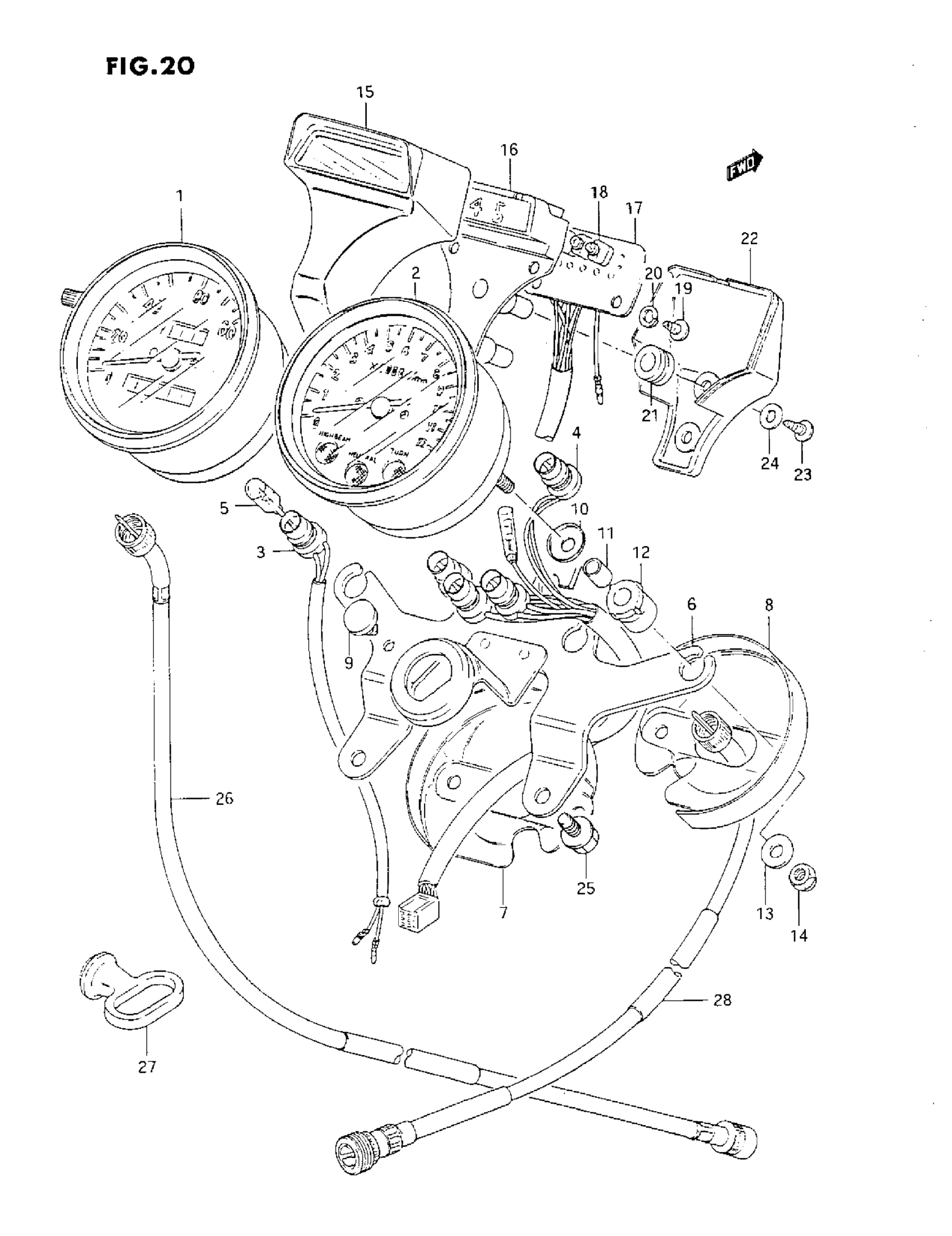

Suzuki GN125E (1993) SPEEDOMETER-TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-05310

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 34210-05320.

34210-03910

Unavailable

3

SOCKET, SPEEDOMETER

34173-05300

Unavailable

4

SOCKET, TACHOMETER

34273-05320

Unavailable

5

BULB (12V3.4W)

09471-12082

Unavailable

6

BRACKET, METER

34950-05320

Unavailable

7

UNDER COVER, SPEEDOMETER

34193-05300

Unavailable

8

UNDER COVER, TACHOMETER

34293-05300

Unavailable

9

CUSHION

34956-28011

Unavailable

10

WASHER This part replaces 34968-36010.

09160-05013

$1.49

11

SPACER

34187-28310

Unavailable

12

CUSHION

34189-28310

Unavailable

13

WASHER This part replaces 34181-05300.

09160-05024

$1.78

14

NUT This part replaces 08313-11057.

08313-1005A

$1.93

15

PILOT BOX

36380-05320

Unavailable

16

CASE, PILOT BOX

36381-05320

Unavailable

17

INDICATOR, GEAR POSITION

36453-05320

Unavailable

18

BULB (14V, 1.1W)

09471-12071

$7.20

19

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

20

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

21

CUSHION

34955-28010

$3.84

22

COVER, LOWER

36383-05320

Unavailable

23

SCREW This part replaces 03112-04165.

03112-04163

Unavailable

24

WASHER This part replaces 08322-21047.

08322-01047

$1.86

25

BOLT | MODEL M/N/P This part replaces 01114-06168.

01550-06167

$2.30

25

BOLT | MODEL R This part replaces 01550-06163.

01550-0616A

$1.97

26

CABLE,SPEEDOMET This part replaces 34910-05310.

34910-05311

$73.65

27

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68

28

CABLE,TACHOMETE This part replaces 34940-05300.

34940-05301

Unavailable
