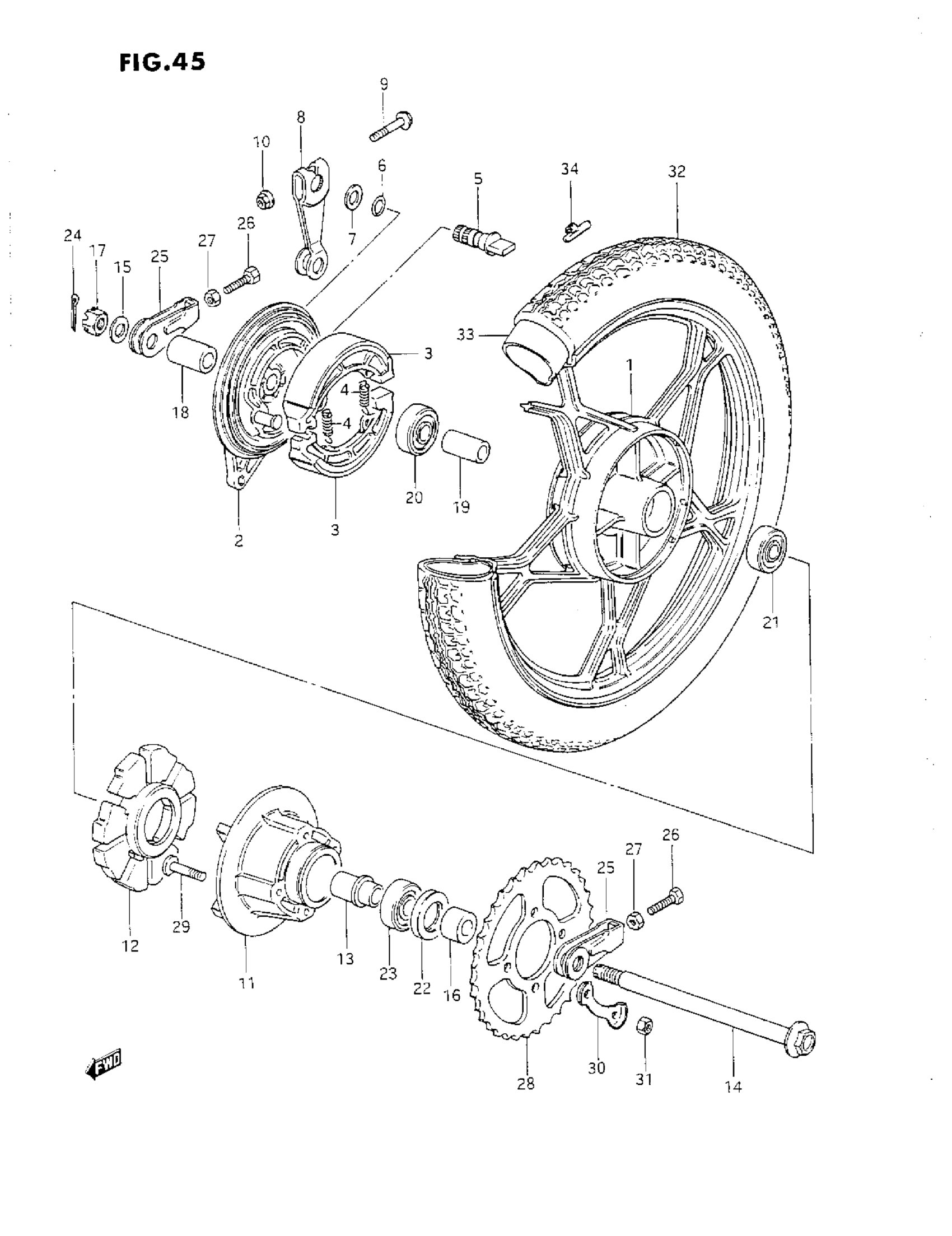

Suzuki GN125E (1993) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (2.15X16)(BLACK) | MODEL M/N/P This part replaces 64150-38300-12V.

64150-38300-291

Unavailable

1

WHEEL, REAR (2.15X16)(BLACK) | MODEL R

64150-38300-291

Unavailable

2

PANEL, ANCHOR

64210-39104

Unavailable

3

SHOE SET, BRAKE | MODEL M/N/P This part replaces 54410-07004.

54401-07810

Unavailable

3

SHOE SET, BRAKE | MODEL R This part replaces 54410-07040.

54400-07870

$37.96

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE This part replaces 54441-29304.

54441-29305

$20.02

6

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

7

WASHER This part replaces 09160-14001.

09160-14055

$2.39

8

LEVER, REAR BRAKE CAME

64451-48000

$26.71

9

BOLT | MODEL M/N/P This part replaces 01517-06358.

01550-06357

$2.77

9

BOLT | MODEL R This part replaces 01550-06353.

01550-0635A

$2.32

10

NUT | MODEL M/N/P This part replaces 09159-06017.

08319-31067

$2.03

10

NUT | MODEL R This part replaces 08316-10063.

08316-1006B

$2.50

11

DRUM, MOUNTING

64610-05301

Unavailable

12

SHOCK ABSORBER, REAR HUB

64651-38300

$24.20

13

RETAINER

64733-05301

Unavailable

14

AXLE, REAR | MODEL M/N This part replaces 64711-05300.

64711-48001

$50.92

14

AXLE, REAR | MODEL P/R

64711-48001

$50.92

15

WASHER | MODEL M/N/P This part replaces 08322-11148.

08322-01147

$1.91

15

WASHER | MODEL R This part replaces 08322-01143.

08322-0114A

$1.84

16

SPACER, LH (15X28X19)

09180-15042

Unavailable

17

NUT

09141-14001

$4.60

18

SPACER, RH (15.2X23X33)

09180-15002

$8.35

19

SPACER (15.3X21.7X63)

09180-15011

$8.18

20

BEARING, RH

08144-63027

$23.43

21

BEARING, LH

08143-62027

$16.01

22

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

23

BEARING

09262-20069

$23.28

24

PIN This part replaces 04111-30308.

04111-3030A

$1.49

25

ADJUSTER, CHAIN

61410-36002

$13.05

26

BOLT (8X50) | ->09104-08034 This part replaces 09104-08006.

09104-08034

$3.04

26

BOLT (8X50)

09104-08034

$3.04

27

NUT | MODEL M/N/P This part replaces 08310-12088.

08310-00087

$2.13

27

NUT | MODEL R

08310-00087

$2.13

28

SPROCKET, REAR (NT:42) This part replaces 64511-39300.

64511-12B02

$57.30

29

BOLT

09119-08043

Unavailable

30

WASHER

09169-08012

$2.53

31

NUT | MODEL M/N/P This part replaces 08310-12088.

08310-00087

$2.13

31

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.84

32

TIRE 3.50-16 (IRC)

65100-05320

Unavailable

33

TUBE, INNER (IRC)

65200-26700

Unavailable

34

BALANCER, WHEEL (10G) | 0-3, UN MODEL M

55411-00A00

$1.49

34

BALANCER, WHEEL NO.2 | 0-3, UN MODEL M This part replaces 55412-00A00.

55412-17G00

$7.05

34

BALANCER (30G) | 0-3, UN MODEL M This part replaces 55413-00A00.

55413-00A01

Unavailable

34

BALANCER, WHEEL (20G) | 0-2, UN MODEL N/P/R

55411-47001

Unavailable

34

BALANCER, WHEEL (30G) | 0-2, UN MODEL N/P/R

55412-47001

Unavailable

34

BALANCER, WHEEL (10G) | 0-2, UN MODEL N/P/R

55413-47001

Unavailable
