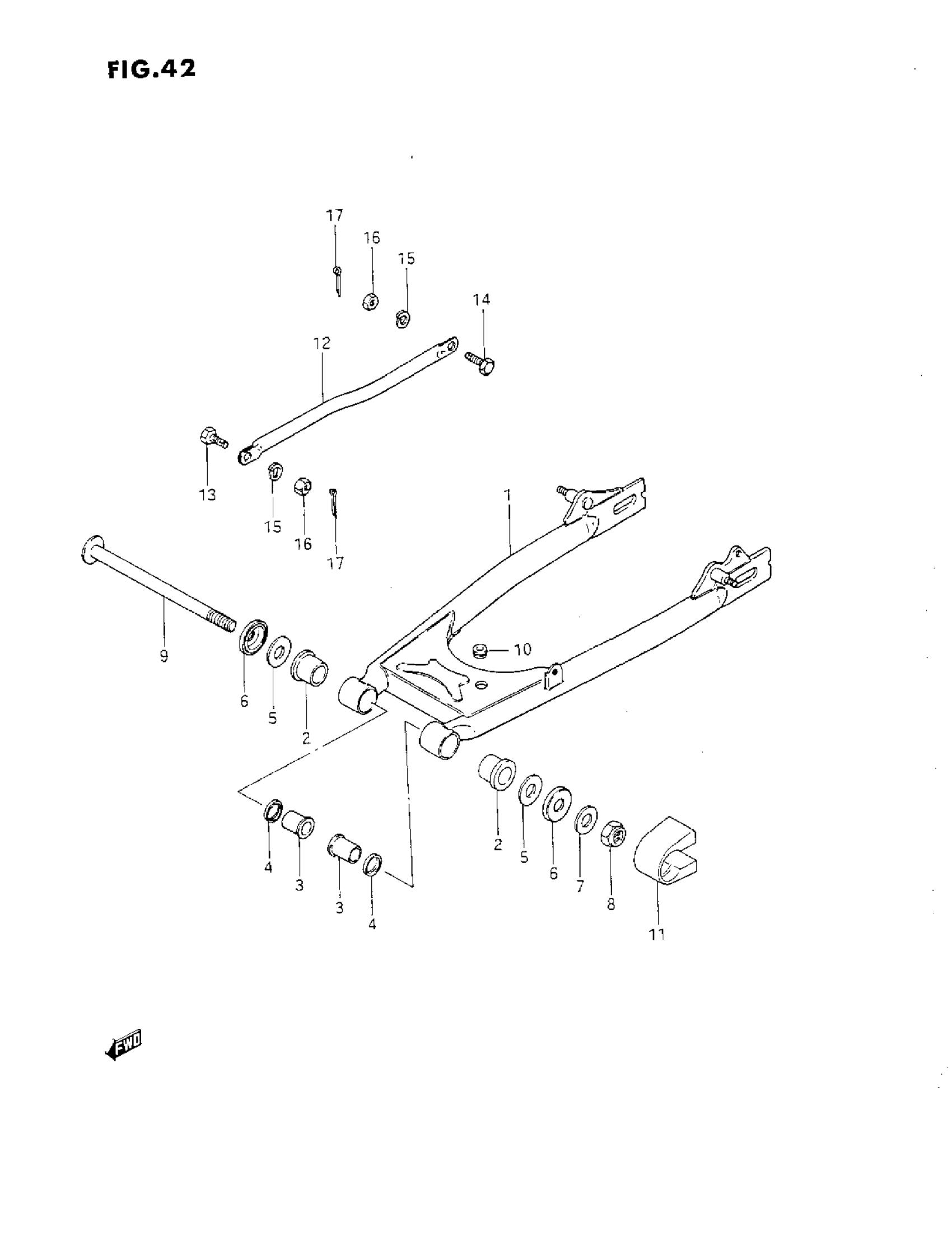

Suzuki GN125E (1993) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASS'Y, REAR (BLACK)

61000-05300-019

Unavailable

2

BUSH

61261-05301

$26.03

3

SPACER

61251-05300

$27.32

4

OIL SEAL

09286-20001

$4.70

5

WASHER

08211-14341

$3.72

6

COVER

61262-45002

$7.85

7

WASHER | MODEL M/N/P This part replaces 08322-11148.

08322-01147

$1.99

7

WASHER | MODEL R This part replaces 08322-01143.

08322-0114A

$1.89

8

NUT This part replaces 08319-21148.

08319-2114A

$3.75

9

SHAFT, PIVOT This part replaces 61211-05301.

61211-05302

$33.12

10

CUSHION

09320-08020

$3.70

11

BUFFER, CHAIN TOUCH DEFENSE

61273-05300

Unavailable

12

TORQUE LINK, REAR (BLACK)

64310-05300-019

Unavailable

13

BOLT, FRONT

09111-08012

$4.12

14

BOLT, REAR

09111-08013

$2.88

15

.LOCK WASHER | MODEL M/N/P This part replaces 08321-21088.

08321-01087

$1.89

15

LOCK WASHER | MODEL R

09162-08008

$2.14

16

NUT

09140-08008

$1.49

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25
