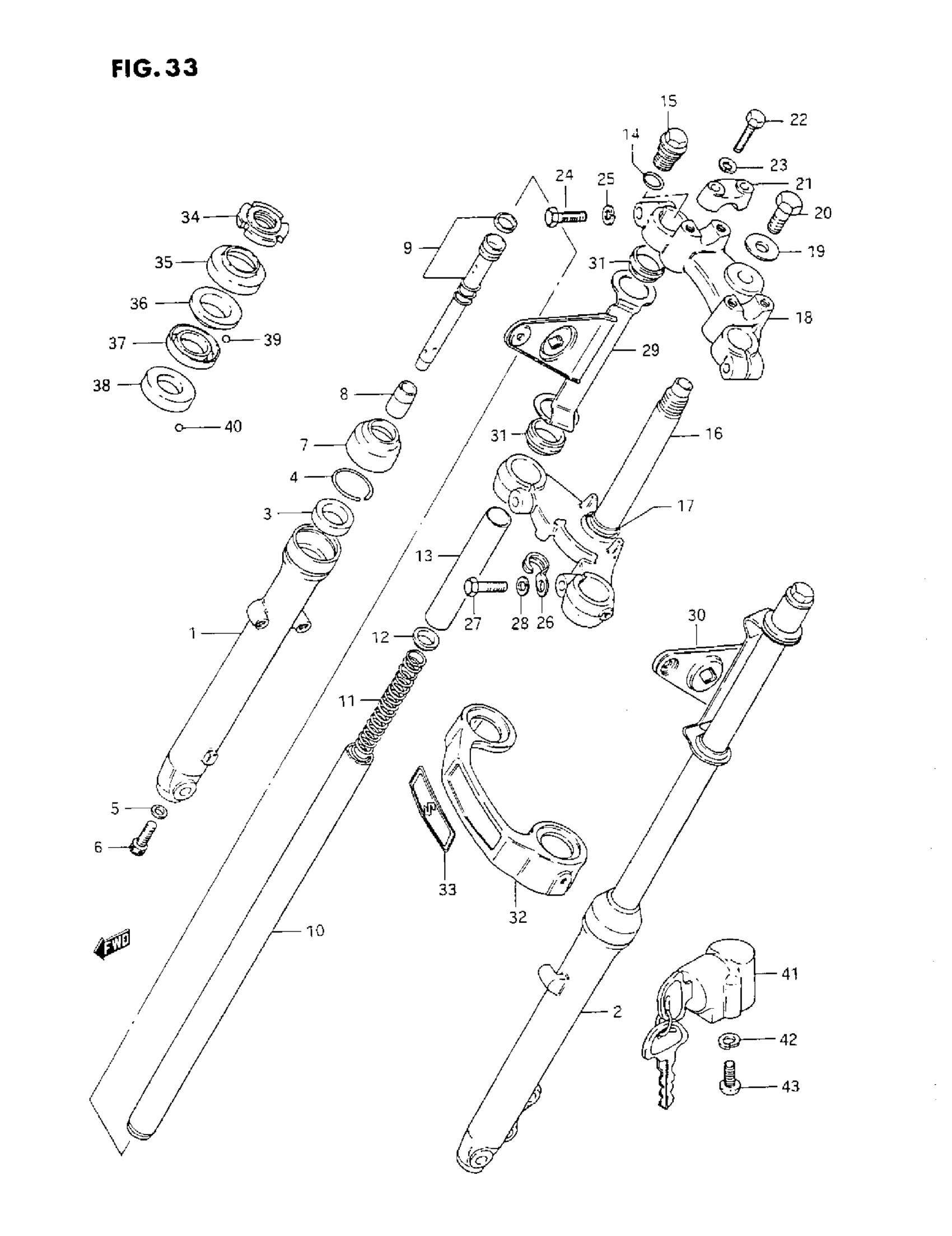

Suzuki GN125E (1993) FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASS'Y (BLACK)

51100-05301-291

Unavailable

1

OUTER TUBE RH

51130-05300

Unavailable

2

OUTER TUBE LH

51140-05300

Unavailable

3

OIL SEAL

51153-05300

$16.98

4

RING, STOPPER

51156-41603

Unavailable

5

GASKET

51148-41310

$2.14

6

BOLT

51147-16510

$4.09

7

DUST SEAL

51173-41603

$10.82

8

PIECE, OIL LOCK

51195-36220

Unavailable

9

CYLINDER

51146-05300

Unavailable

10

INNER TUBE

51110-05300

Unavailable

11

SPRING

51171-05300

Unavailable

12

GUIDE, SPRING

51172-18630

Unavailable

13

SPACER

51176-05300

Unavailable

14

O RING This part replaces 51181-25010.

51181-29401

$3.80

15

CAP

51351-41603

Unavailable

16

STEM, STEERING

51410-11311

Unavailable

17

OUTER RACE

51621-33001

$18.33

18

STEM HEAD, STEERING (BLACK)

51311-11300-291

Unavailable

19

WASHER

51356-22012

$7.67

20

BOLT | MODEL M/N This part replaces 51351-20010.

51351-29400

$35.23

20

BOLT | MODEL P/R This part replaces 51351-20011.

51351-29400

$35.23

21

HOLDER, HANDLE (BLACK)

56211-29320-291

$14.60

22

BOLT

01204-08357

$2.10

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

24

BOLT | MODEL M/N This part replaces 51451-15113.

01104-10388

$1.78

24

BOLT | MODEL P/R This part replaces 51451-15114.

01104-10388

$1.78

25

LOCK WASHER This part replaces 08321-21107.

08321-01107

$1.83

26

CLIP

51455-36010

Unavailable

27

BOLT

51451-28012

Unavailable

28

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.07

29

BRACKET, HEAD LAMP RH

51530-05300

Unavailable

30

BRACKET, HEAD LAMP LH

51540-05300

Unavailable

31

CUSHION,HEADLAM This part replaces 51553-11300.

51553-11301

$4.63

32

COVER

51871-05301

Unavailable

33

EMBLEM

68211-38300

Unavailable

34

NUT, STEERING STEM

51631-28000

$19.60

35

DUST SEAL,STEERING UPPER

51643-25001

$4.17

36

RACE,STEERING OUTER UPPER

51621-28000

$13.50

37

RACE,STEERING INNER UPPER

51611-20002

$13.50

38

RACE, INNER LOWER

51611-33002

$13.02

39

STEEL BALL, UPPER

06111-06003

$1.24

40

STEEL BALL, LOWER

06111-08003

$1.30

41

LOCK, STEERING

51910-25311

$45.52

42

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.83

43

SCREW This part replaces 02112-05128.

02112-05127

$1.97
