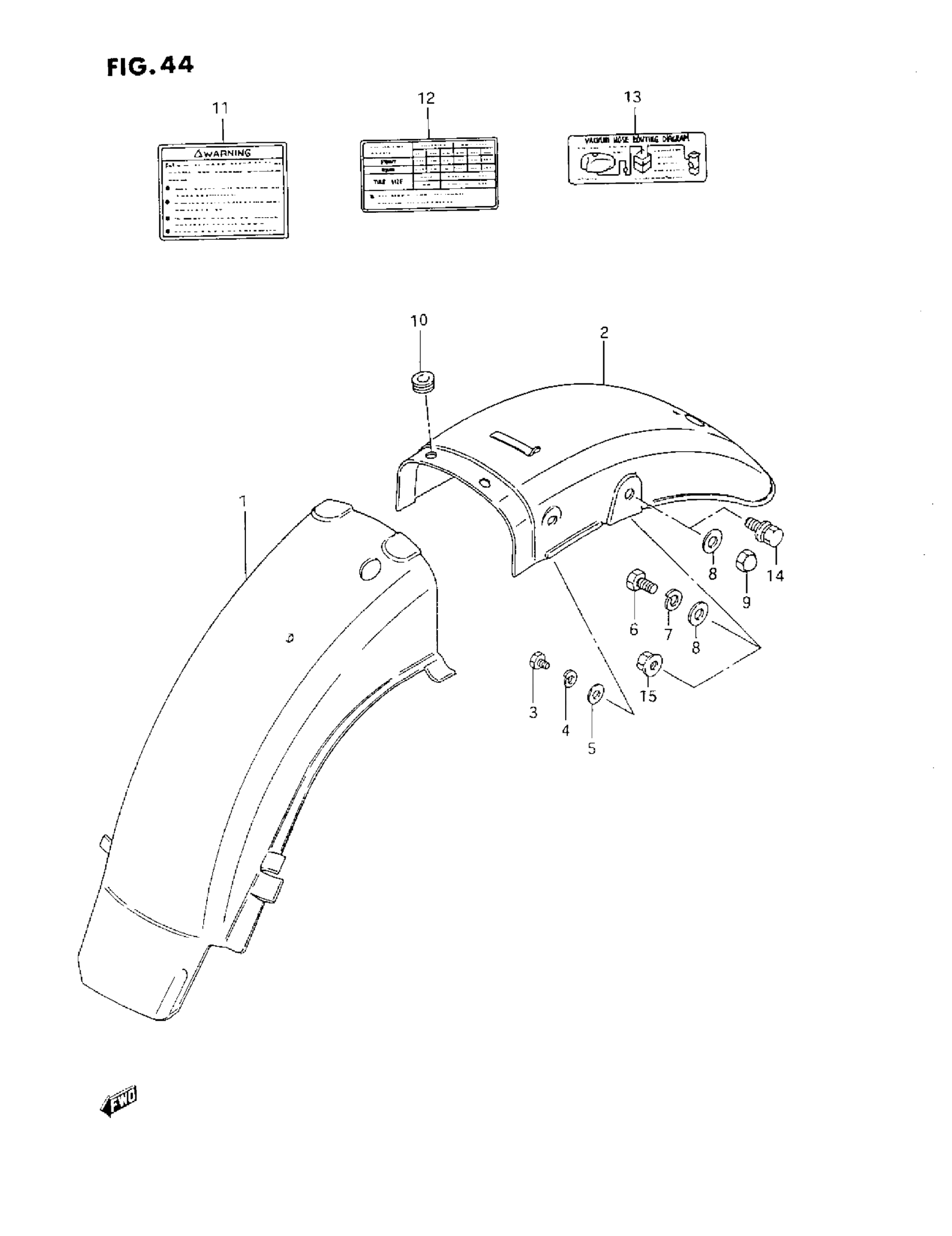

Suzuki GN125E (1993) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER, FRONT

63112-05302

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 63110-38302.

63110-38303

Unavailable

3

BOLT, CANISTER | MODEL M This part replaces 01107-06167.

01500-06167

$1.97

3

BOLT | MODEL N/P This part replaces 01177-06168.

01580-06167

$3.33

3

BOLT | MODEL R This part replaces 01580-06163.

01580-0616A

$2.42

4

LOCK WASHER | MODEL M This part replaces 08321-21067.

08321-01067

$2.13

5

WASHER | MODEL M This part replaces 08322-21067.

08322-01067

$2.13

6

BOLT, REAR | MODEL M/N/P This part replaces 01107-08207.

01500-08207

$2.53

7

.LOCK WASHER | MODEL M/N/P This part replaces 08321-21088.

08321-01087

$2.13

8

WASHER | MODEL M/N/P This part replaces 08322-11088.

08322-01087

$2.13

9

NUT | MODEL M/N/P This part replaces 08313-11087.

08313-10087

$2.28

10

CUSHION This part replaces 09320-05006.

09320-06504

$4.96

11

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

12

LABEL, TIRE AIR PRESSURE

68332-05320

Unavailable

13

LABEL, PIPING DIAGRAM | CALIFORNIA ONLY

68387-38300

Unavailable

14

BOLT, REAR | MODEL R

01580-08257

$3.75

15

NUT | MODEL R This part replaces 08316-10083.

08316-1008B

$2.66
