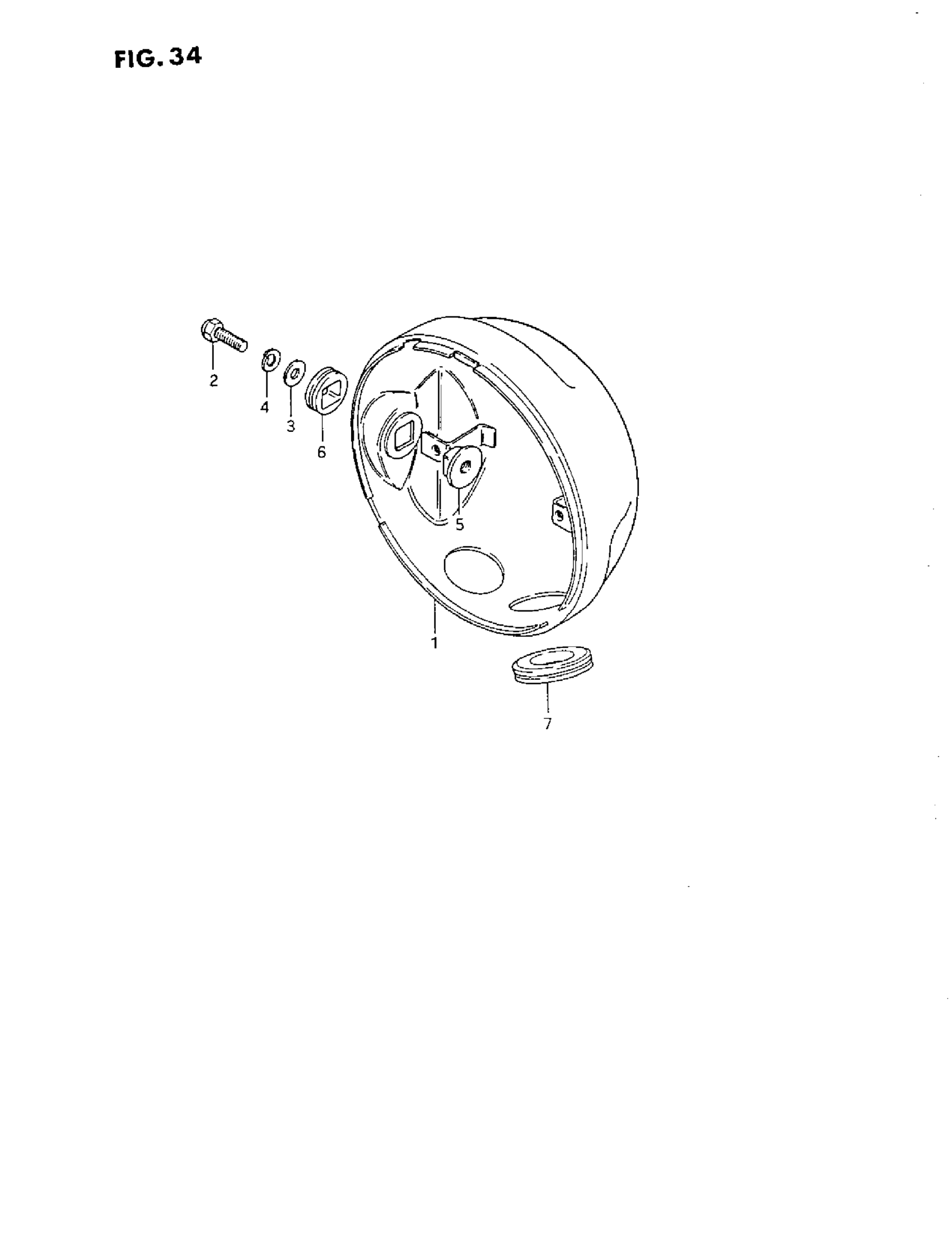

Suzuki GN125E (1993) HEAD LAMP HOUSING Diagram

#

Description

Price

1

HOUSING, HEADLAMP This part replaces 51810-44200.

51810-44201

Unavailable

2

BOLT | MODEL M/N/P

01204-08207

$2.30

2

BOLT | MODEL R

01264-08207

Unavailable

3

WASHER | MODEL M/N/P This part replaces 08322-21088.

08322-01087

$2.13

4

.LOCK WASHER | MODEL M/N/P This part replaces 08321-21088.

08321-01087

$2.13

5

SPACER,HEADLAMP This part replaces 51821-36200.

51821-36210

$6.07

6

CUSHION,HEADLAM This part replaces 51827-27302.

51827-27303

$3.66

7

GROMMET, HOUSING

51845-31031

$4.52
