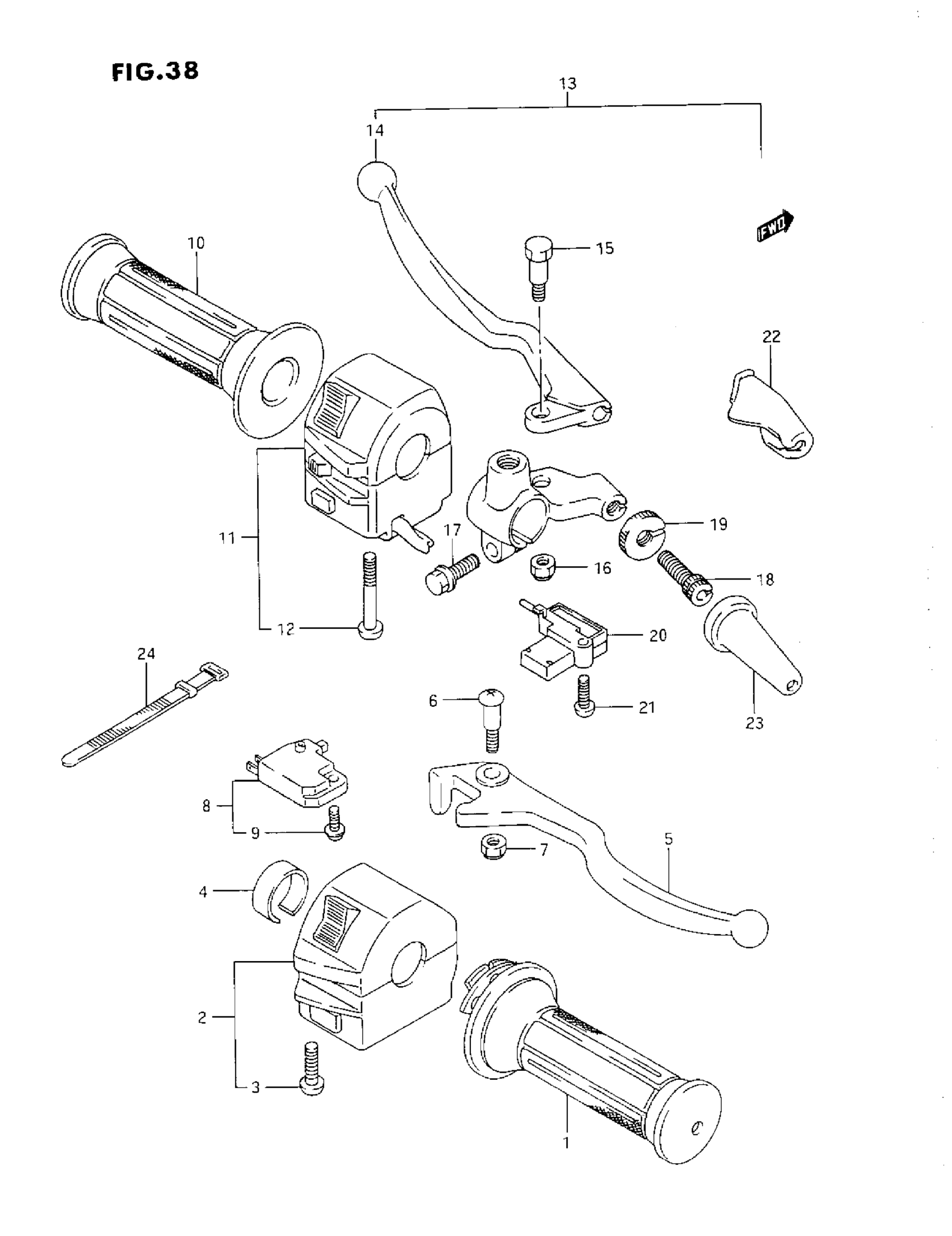

Suzuki GN125E (1993) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-34300

$38.92

2

SWITCH ASSY, HANDLE RH This part replaces 37200-45C11.

37200-45C12

Unavailable

3

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

4

SPACER, HANDLE RH

56115-05300

Unavailable

5

LEVER, BRAKE (BLACK)

57421-13001

$13.33

6

SCREW | MODEL M This part replaces 57431-13010.

09139-06114

$7.95

6

BOLT | MODEL N/P/R This part replaces 57431-13030.

09111-06075

$7.42

7

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

8

SWITCH ASSY,FR BRAKE This part replaces 57460-17C00.

57460-14J02

$38.46

9

SCREW

57465-17C00

$2.19

10

GRIP, LH

57211-34300

$16.63

11

SWITCH ASSY,HAN This part replaces 37400-06B11.

37400-06B20

$161.35

12

SCREW This part replaces 02112-05405.

02112-0540B

$2.70

13

LEVER ASSY,CLUT This part replaces 57500-05390.

57500-05392

$61.68

14

LEVER, CLUTCH

57620-05390

$20.25

15

..BOLT,LEVER PIVOT This part replaces 57431-45C00.

57431-21D11

$9.76

16

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

17

..BOLT This part replaces 01547-06205.

01547-0620B

$2.45

18

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$9.05

19

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

20

.SWITCH,CLUTCH

57560-05A00

$12.15

21

SCREW

02132-03208

Unavailable

22

COVER, CLUTCH LEVER

57661-31000

$7.25

23

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

24

CLAMP (L:120)

09407-12402

$3.04
