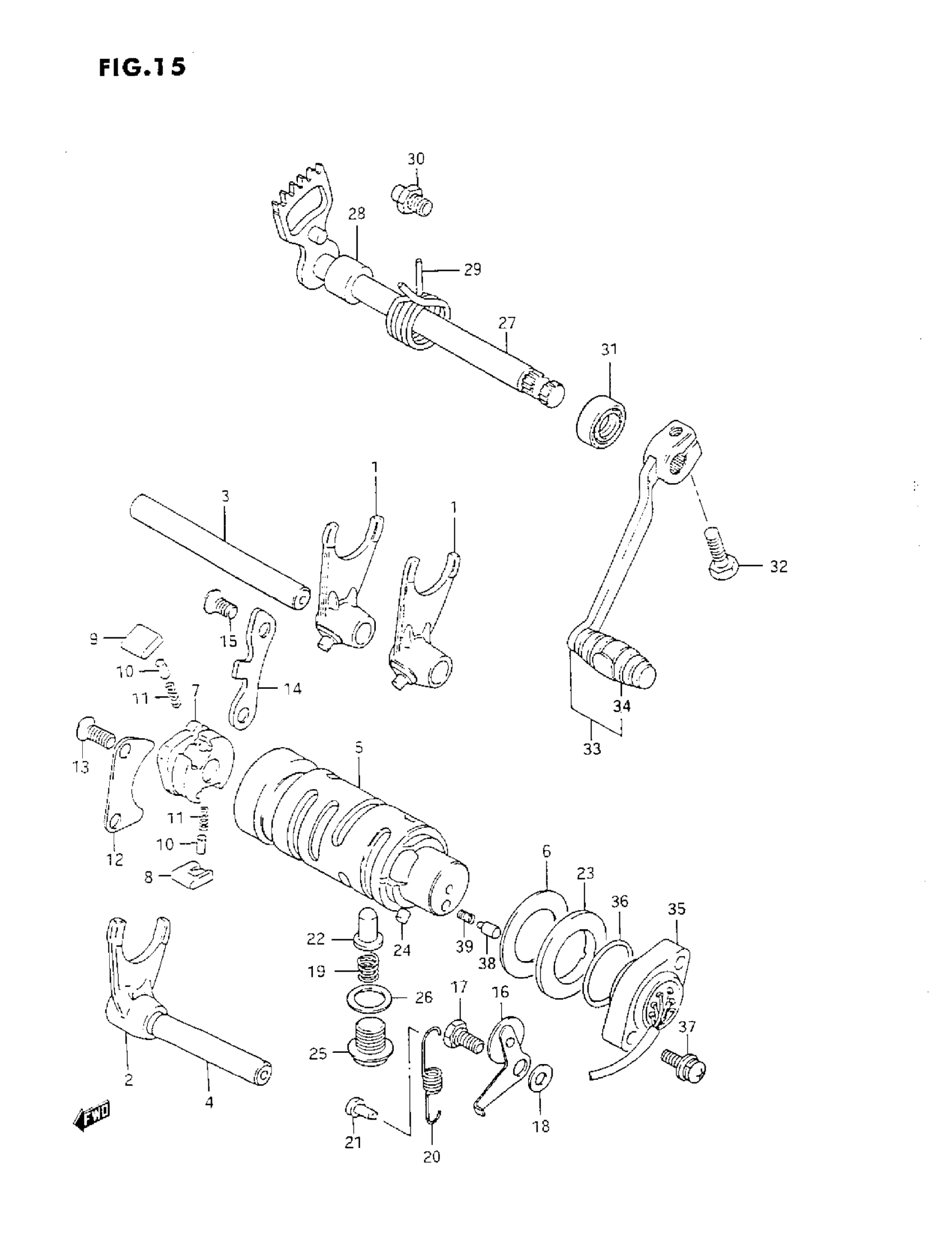

Suzuki GN125E (1993) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.2

25221-08300

Unavailable

2

FORK, GEAR SHIFT NO.3

25231-05201

Unavailable

3

SHAFT, GEAR SHIFT FORK (L:109 | MODEL M/N

25411-16701

$18.02

3

SHAFT, GEAR SHIFT FORK (L:109 | MODEL P/R This part replaces 25411-05200.

25411-16701

$18.02

4

SHAFT, NO.1 | MODEL M/N This part replaces 25421-35401.

25421-35410

$23.47

4

SHAFT, NO.1 | MODEL P/R This part replaces 25421-35402.

25421-35410

$23.47

5

NO DESCRIPTION AVAILABLE This part replaces 25310-05300.

25310-05330

Unavailable

6

WASHER, SUB T/M DRIVE This part replaces 08211-25401.

09181-25251

$3.87

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

10

PIN

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER, GR SHIFT POLE

25331-30001

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

GUIDE, GEAR SHIFT CAM

25341-05200

Unavailable

15

SCREW This part replaces 02122-06128.

02122-06127

$1.84

16

STOPPER, CAM | MODEL M/N/P

25350-05200

Unavailable

16

STOPPER, GEAR SHIFT CAM | MODEL R

25350-44A00

Unavailable

17

BOLT This part replaces 09111-06019.

09111-06054

$3.70

18

WASHER

08211-06141

$1.59

19

SPRING

09440-11016

Unavailable

20

SPRING | MODEL M/N/P

09443-08012

Unavailable

20

SPRING | MODEL R

09443-08044

Unavailable

21

HOOK

09223-04001

$1.68

22

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

23

PLATE, GEAR SHIFT CAM STOPPER

25381-45400

$20.45

24

PIN This part replaces 06211-04063.

04221-04069

$2.12

25

PLUG | MODEL M/N/P This part replaces 09247-14012.

09247-14026

$3.76

25

PLUG, CAM STOPPER | MODEL R

09247-14026

$3.76

26

WASHER

09168-14004

$1.83

27

SHAFT, GEAR SHIFTING

25510-05201

$90.20

28

SPACER

09180-12068

$3.16

29

SPRING

09444-26013

$3.10

30

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

32

BOLT | MODEL M/N This part replaces 09100-06091.

01500-06207

$2.28

32

BOLT | MODEL P This part replaces 01107-06207.

01500-06207

$2.28

32

BOLT | MODEL R

01500-06207

$2.28

33

LEVER ASS'Y

25600-05320

Unavailable

34

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

35

BODY, SWITCH

37720-44700

$91.95

36

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

37

SCREW This part replaces 02112-75208.

02112-75207

$2.92

38

CONTACT

09209-05011

$2.20

39

SPRING

09440-04010

$1.54
