1993 Suzuki GN125E Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1993 Suzuki GN125E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

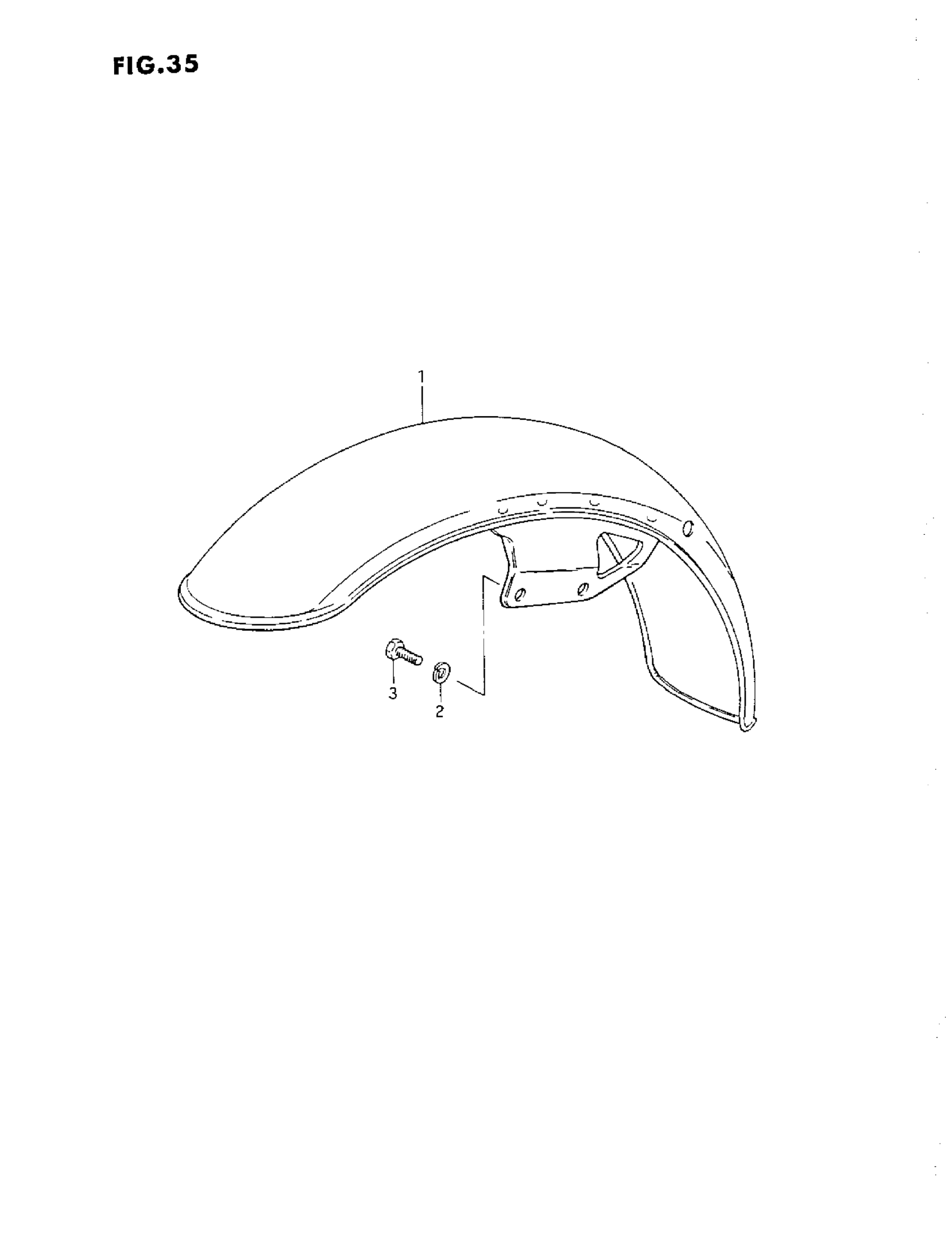

1993 Suzuki GN125E Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

53110-05301

1
Out of stock

3

BOLT | MODEL N/P This part replaces 01137-08168.

01570-08167

4
Out of stock

3

BOLT | MODEL R This part replaces 01570-08163.

01570-0816A

4
Out of stock
