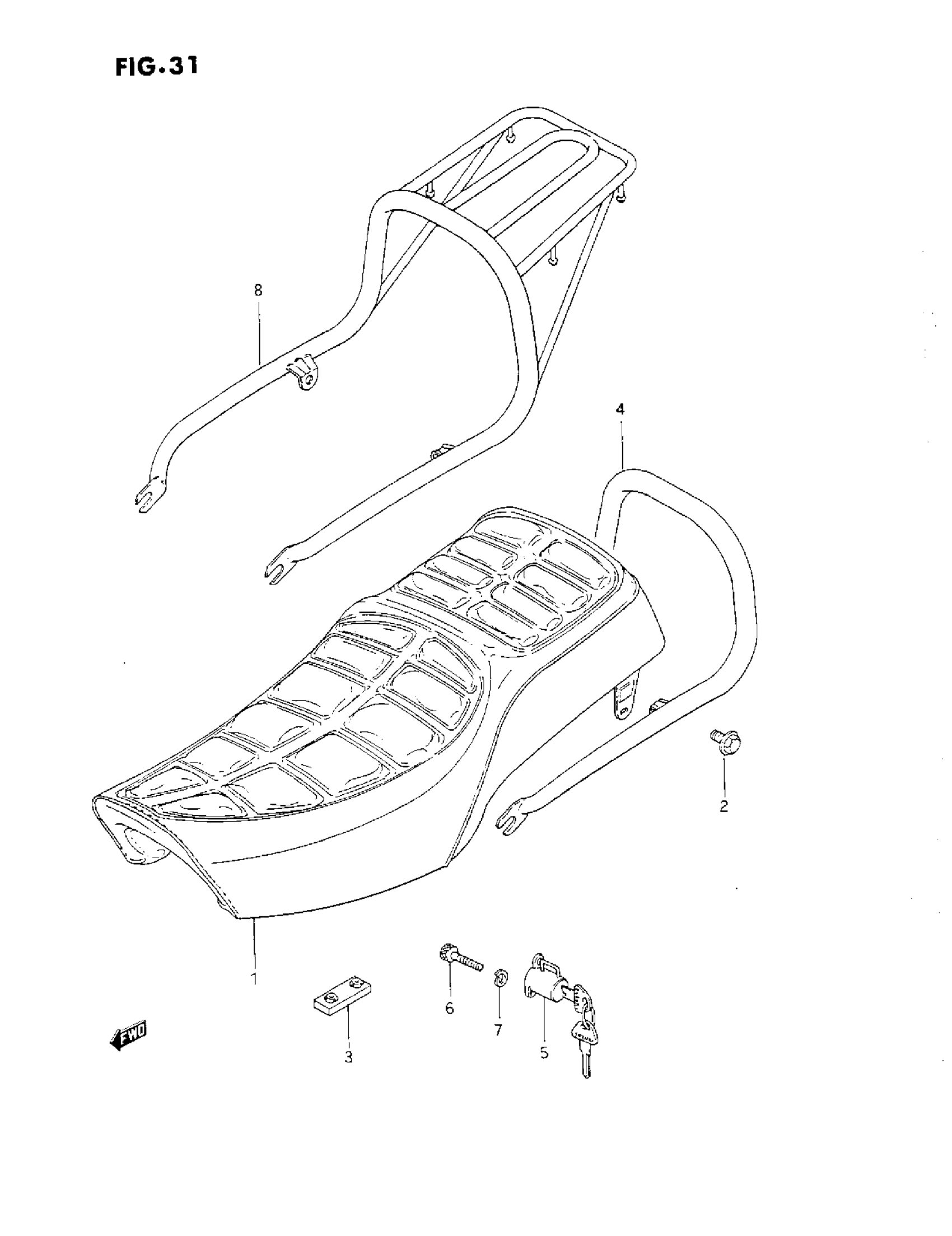

Suzuki GN125E (1993) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) This part replaces 45100-05320-48H.

45100-05321-48H

Unavailable

2

BOLT (8X16) | MODEL M/N/P This part replaces 01517-08165.

01550-0816A

$2.31

2

BOLT (8X16) | MODEL R This part replaces 01550-08163.

01550-0816A

$2.31

3

CUSHION

09321-08009

$2.80

4

HANDLE, PILLION RIDER

46210-05300

Unavailable

5

LOCK SET, HELMET | MODEL M This part replaces 95700-37400-KEY.

95700-37810

Unavailable

5

LOCK SET, HELMET | MODEL N/P/R

95700-37810

Unavailable

6

BOLT, NO.3 | MODEL M/N/P This part replaces 09106-06024.

07130-0610B

$1.23

6

BOLT | MODEL R This part replaces 09139-06069.

09139-06075

Unavailable

7

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.83

8

CARRIER, SPORTS | OPT

46310-05300

Unavailable
