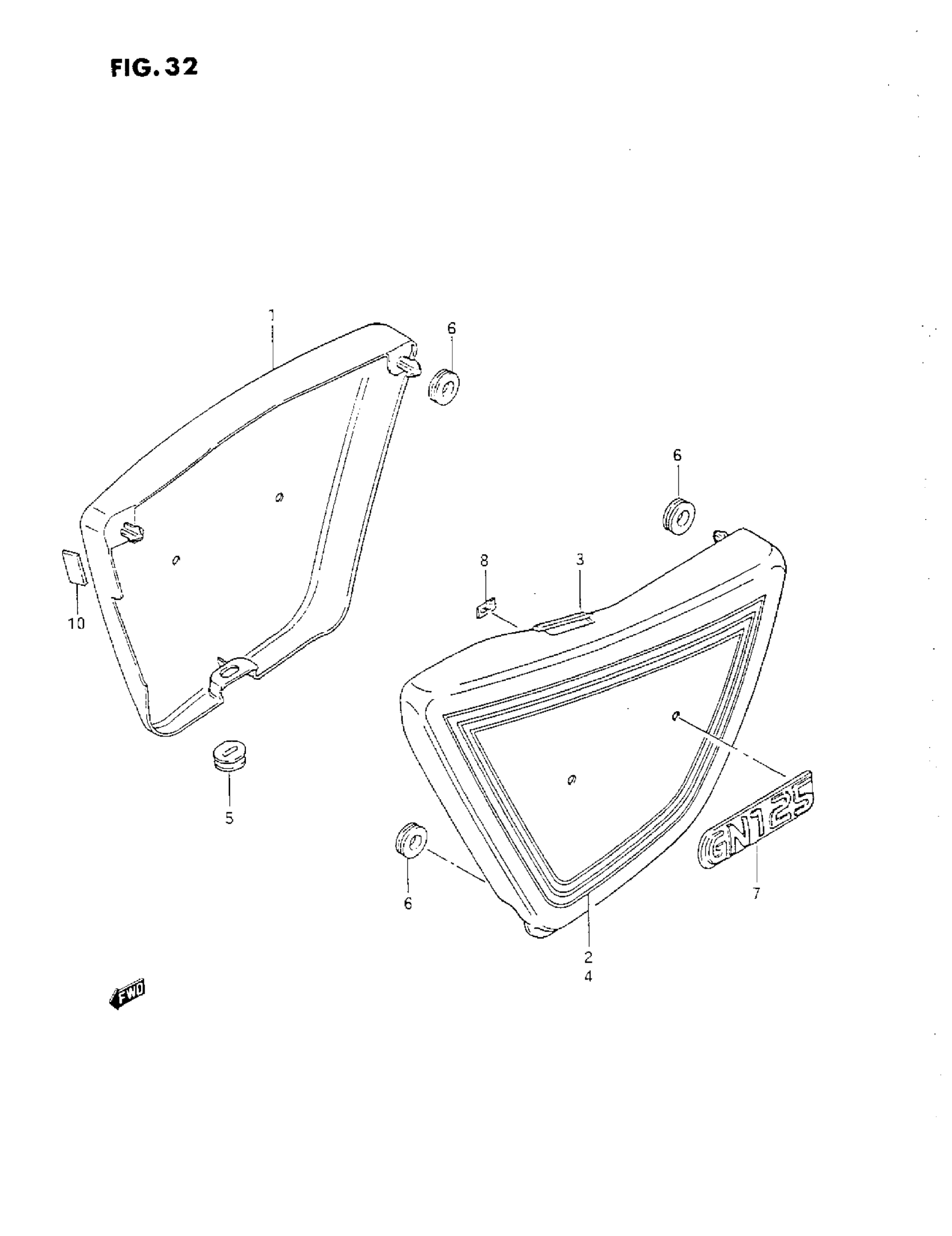

Suzuki GN125E (1993) FRAME COVER Diagram

#

Description
Price

1

COVER,FRAME,RH | MODEL M This part replaces 47111-05301-12F.

47111-05301

$74.18

1

COVER, FRAME RH (BLACK) | MODEL M

47111-05301-13Z

Unavailable

1

COVER,FRAME,RH | MODEL M This part replaces 47111-05301-24D.

47111-05301

$74.18

1

COVER, FRAME RH (RED) | MODEL N/P/R

47111-05301-19A

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR 12F This part replaces 68130-38330-2WS.

68130-38330-68A

Unavailable

2

TAPE SET, FRAME COVER RH | FOR 13Z This part replaces 68130-38330-78W.

68130-38330-2YH

Unavailable

2

TAPE SET, FRAME COVER RH | FOR 24D

68130-38330-2YH

Unavailable

2

TAPE SET, FRAME COVER RH | FOR 19A

68130-38330-G33

Unavailable

3

COVER,FRAME LH | MODEL M This part replaces 47211-05301-12F.

47211-05301

Unavailable

3

COVER, FRAME LH (BLACK) | MODEL M

47211-05301-13Z

Unavailable

3

COVER,FRAME LH | MODEL M This part replaces 47211-05301-24D.

47211-05301

Unavailable

3

COVER,FRAME LH | MODEL N/P/R This part replaces 47211-05301-19A.

47211-05301

Unavailable

4

NO DESCRIPTION AVAILABLE | FOR 12F This part replaces 68140-38330-2WS.

68140-38330-68A

Unavailable

4

TAPE SET, FRAME COVER LH | FOR 13Z This part replaces 68140-38330-78W.

68140-38330-2YH

Unavailable

4

TAPE SET, FRAME COVER LH | FOR 24D

68140-38330-2YH

Unavailable

4

TAPE SET, FRAME COVER LH | FOR 19A

68140-38330-G33

Unavailable

5

CUSHION, LOWER RH

09320-03004

$2.12

6

CUSHION

09320-08018

$3.04

7

EMBLEM

68131-05310

$24.20

8

NUT

09148-03003

$1.98

9

PROTECTOR, RH | CALIFORNIA ONLY, MODEL M/N

94461-08C00

$4.67

9

PROTECTOR, RH | CALIFORNIA ONLY, MODEL P/R

32851-10D00

$5.05
