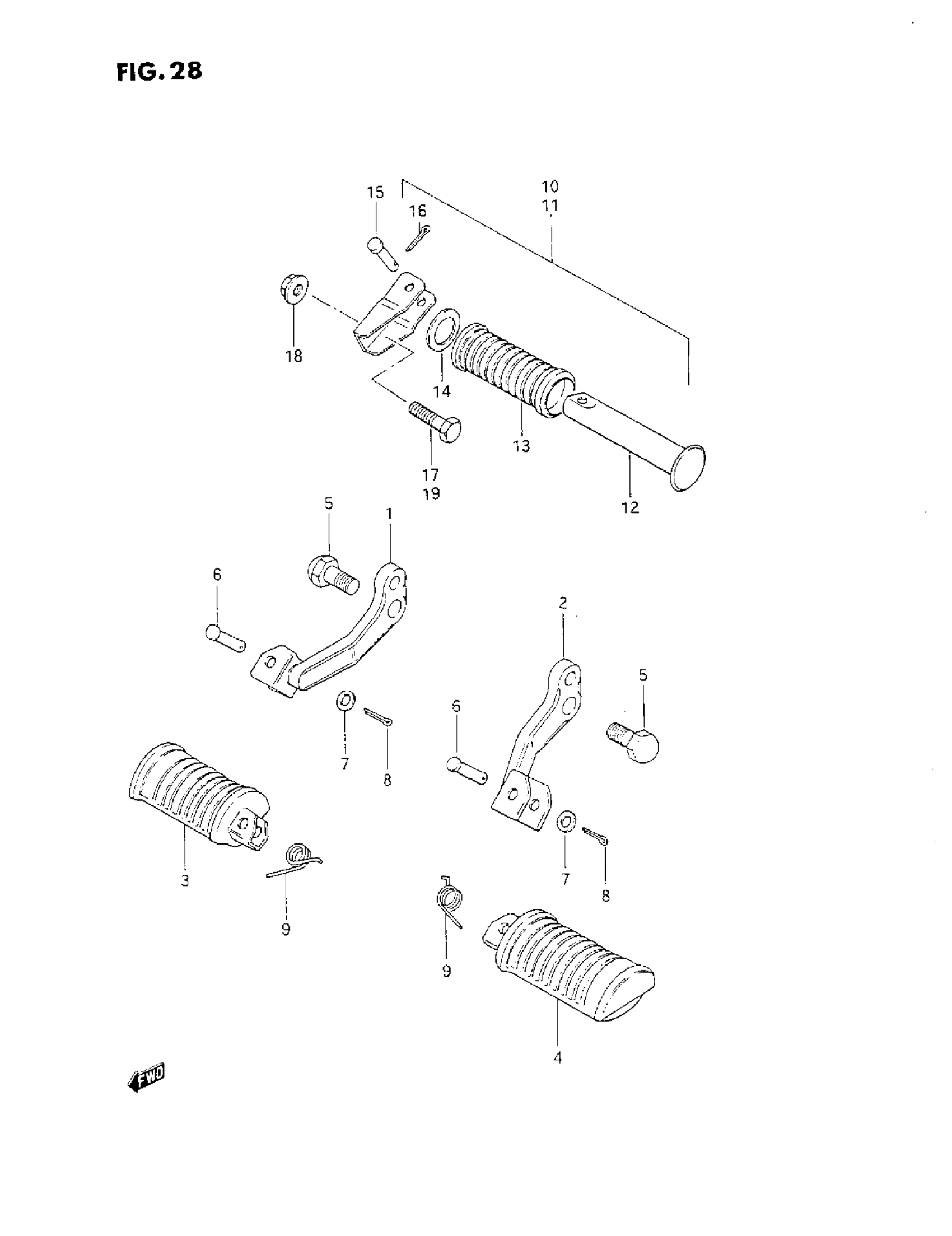

Suzuki GN125E (1993) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH

43510-05330

Unavailable

2

BAR, FOOTREST LH

43520-05330

Unavailable

3

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

$25.47

4

FOOTREST LH This part replaces 43560-37301.

43560-37310

$32.98

5

BOLT This part replaces 01527-12257.

01550-12257

Unavailable

6

PIN

09200-08002

$2.05

7

WASHER This part replaces 08322-11088.

08322-01087

$2.13

8

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

9

SPRING

09448-14012

$3.04

10

FOOTREST ASS'Y, PILLION RH | MODEL M/N/P

43600-05310

Unavailable

10

FOOTREST ASS'Y, PILLION RH | MODEL R

43600-05301

$31.70

11

FOOTREST ASS'Y, PILLION LH | MODEL M/N/P

43700-05310

Unavailable

11

FOOTREST ASS'Y, PILLION LH | MODEL R

43700-05301

Unavailable

12

BAR, PILLION FOOTREST | MODEL M/N/P

43610-38300

Unavailable

12

BAR, PILLION FOOTREST | MODEL R

43610-03001

$6.52

13

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$5.83

14

WASHER This part replaces 09160-19006.

09160-19024

$2.65

15

PIN

09200-06010

$1.72

16

.COTTER PIN | MODEL P This part replaces 04111-20158.

04111-2015A

$1.49

16

COTTER PIN | MODEL R This part replaces 04111-20208.

04111-2020A

$1.49

17

BOLT This part replaces 01517-10458.

01550-1045B

$4.77

18

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

19

BOLT (10X20) This part replaces 01517-10257.

01550-1025A

$3.05
