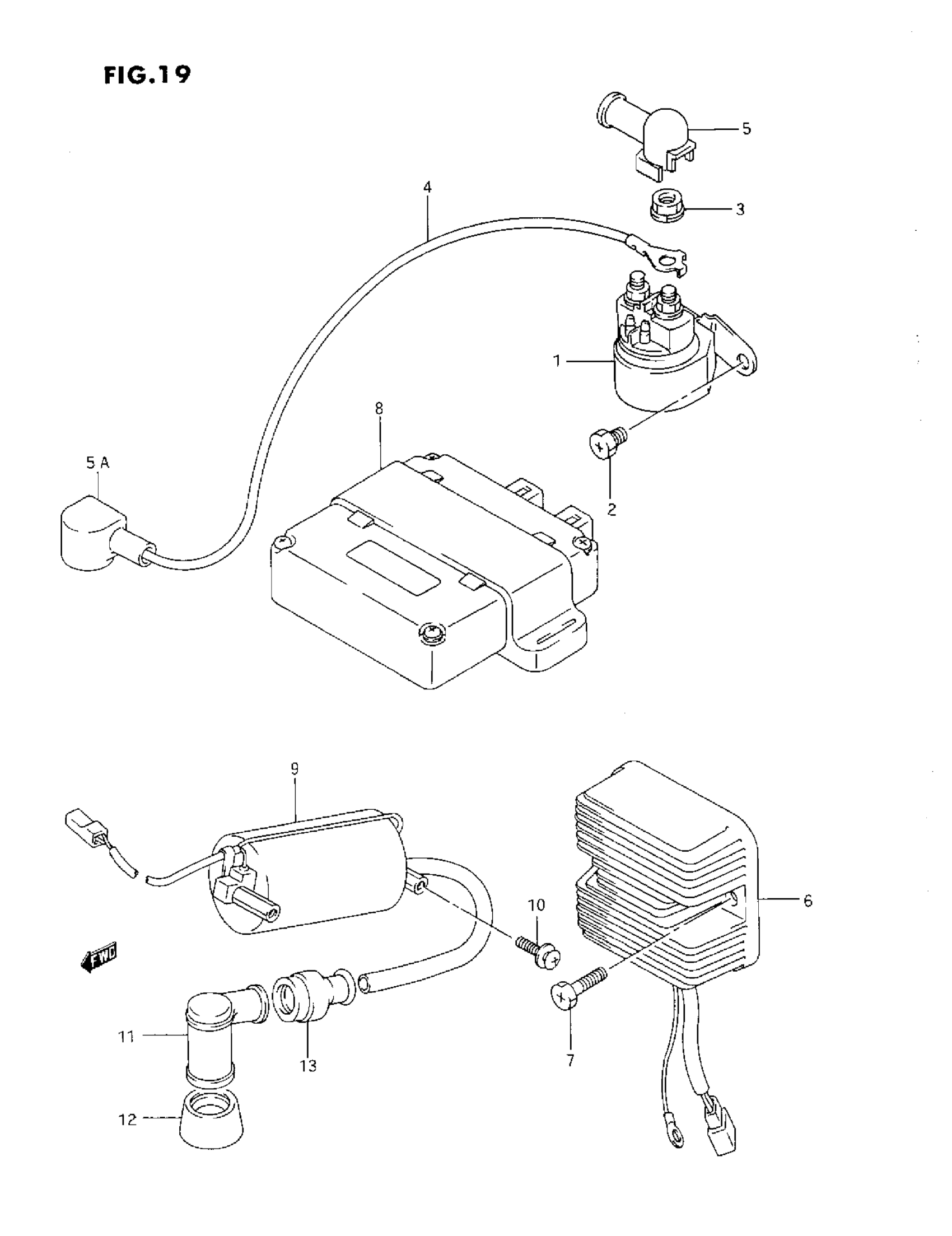

Suzuki GN125E (1993) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$97.31

2

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

3

NUT This part replaces 08361-35066.

08361-3506A

$1.80

4

LEAD WIRE, STARTING MOTOR This part replaces 33810-05300.

33850-05301

Unavailable

5

CAP, TERMINAL

31861-31500

Unavailable

5

CAP, TERMINAL

31861-06C00

Unavailable

6

RECTIFIER, REGULATOR | MODEL M/N This part replaces 32800-05300.

32800-05320

Unavailable

6

RECTIFIER, REGULATOR | MODEL P

32800-05320

Unavailable

6

RECTIFIER, REGULATOR | MODEL R

32800-29B00

$278.28

7

FRM CVR,SCREW(6 | MODEL M/N This part replaces 09128-06011.

09128-06092

$1.92

7

BOLT | MODEL P This part replaces 09128-06006.

09128-06057

$1.65

7

SCREW | MODEL R This part replaces 02142-06203.

02142-0620A

$1.49

8

IGNITER UNIT

32900-05300

Unavailable

9

COIL, IGNITION | MODEL M/N

33410-05302

Unavailable

9

COIL, IGNITION | MODEL P/R

33410-05350

$137.02

10

SCREW | MODEL M/N/P This part replaces 02112-15107.

02142-05107

$1.49

10

SCREW | MODEL R This part replaces 02142-05103.

02142-0510B

$1.78

11

CAP, SPARK PLUG | MODEL M/N/P This part replaces 33510-22010.

33510-97313

$14.73

11

CAP, SPARK PLUG | MODEL R

33510-97313

$14.73

12

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34
