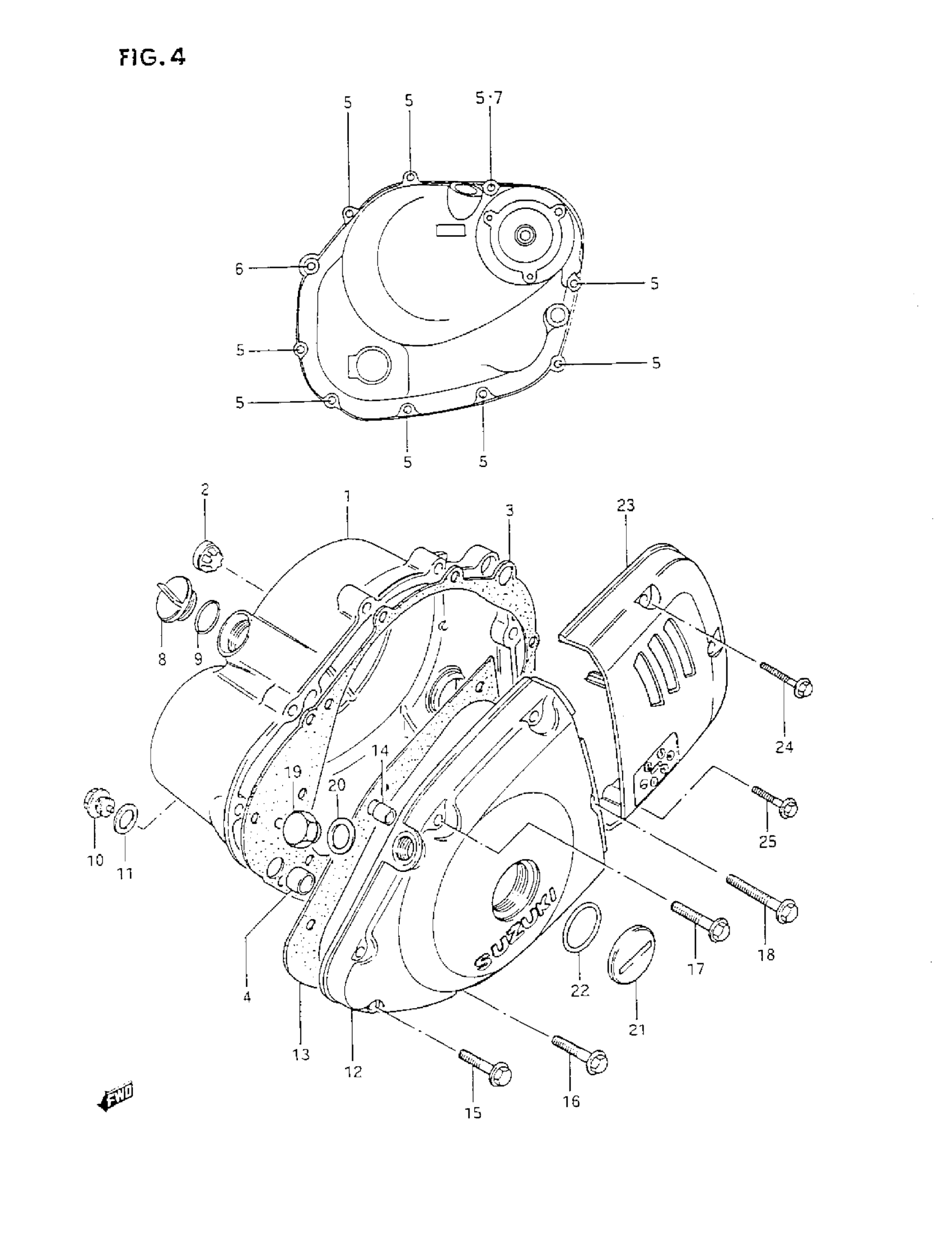

Suzuki GN125E (1993) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL M/N/P This part replaces 11340-05301.

11340-05302

Unavailable

1

COVER, CLUTCH | MODEL R

11340-05302

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET, CLUTCH COVER This part replaces 11482-05310.

11482-05311

$23.63

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

BOLT (6X30)

01547-06307

$2.03

6

BOLT (6X45)

01547-06457

$2.32

7

GASKET

09168-06023

$2.35

8

PLUG, OIL FILLER | MODEL M/N/P

09259-20007

$7.53

8

PLUG, OIL FILLER | MODEL R This part replaces 09259-20018.

09259-20007

$7.53

9

O-RING

09280-17003

$1.65

10

PLUG | MODEL M/N/P This part replaces 09247-14012.

09247-14026

$3.76

10

PLUG, OIL CHECK | MODEL R

09247-14026

$3.76

11

GASKET

09168-14004

$1.83

12

COVER, MAGNETO | MODEL M/N/P This part replaces 11351-05301.

11351-05302

Unavailable

12

COVER, MAGNETO | MODEL R

11351-05302

Unavailable

13

GASKET, MAGNETO COVER This part replaces 11483-05310.

11483-05312

$10.68

14

PIN

04211-09129

$1.65

15

BOLT (6X30)

01547-06307

$2.03

16

BOLT (6X35)

01547-06357

$2.03

17

BOLT (6X40)

01547-06407

$2.32

18

BOLT (6X50)

01547-06507

$2.41

19

PLUG, T.D.C

09247-12104

$2.73

20

GASKET

09168-12002

$1.59

21

PLUG | MODEL M/N/P This part replaces 09259-26003.

09259-26011

$11.03

21

PLUG | MODEL R

09259-26011

$11.03

22

O-RING

09280-22008

$2.27

23

COVER, ENGINE SPROCKET | MODEL M/N/P This part replaces 11361-05300.

11361-05301

Unavailable

23

COVER, ENGINE SPROCKET | MODEL R

11361-05301

Unavailable

24

BOLT

01547-05357

Unavailable

25

BOLT

01547-05257

$2.19
