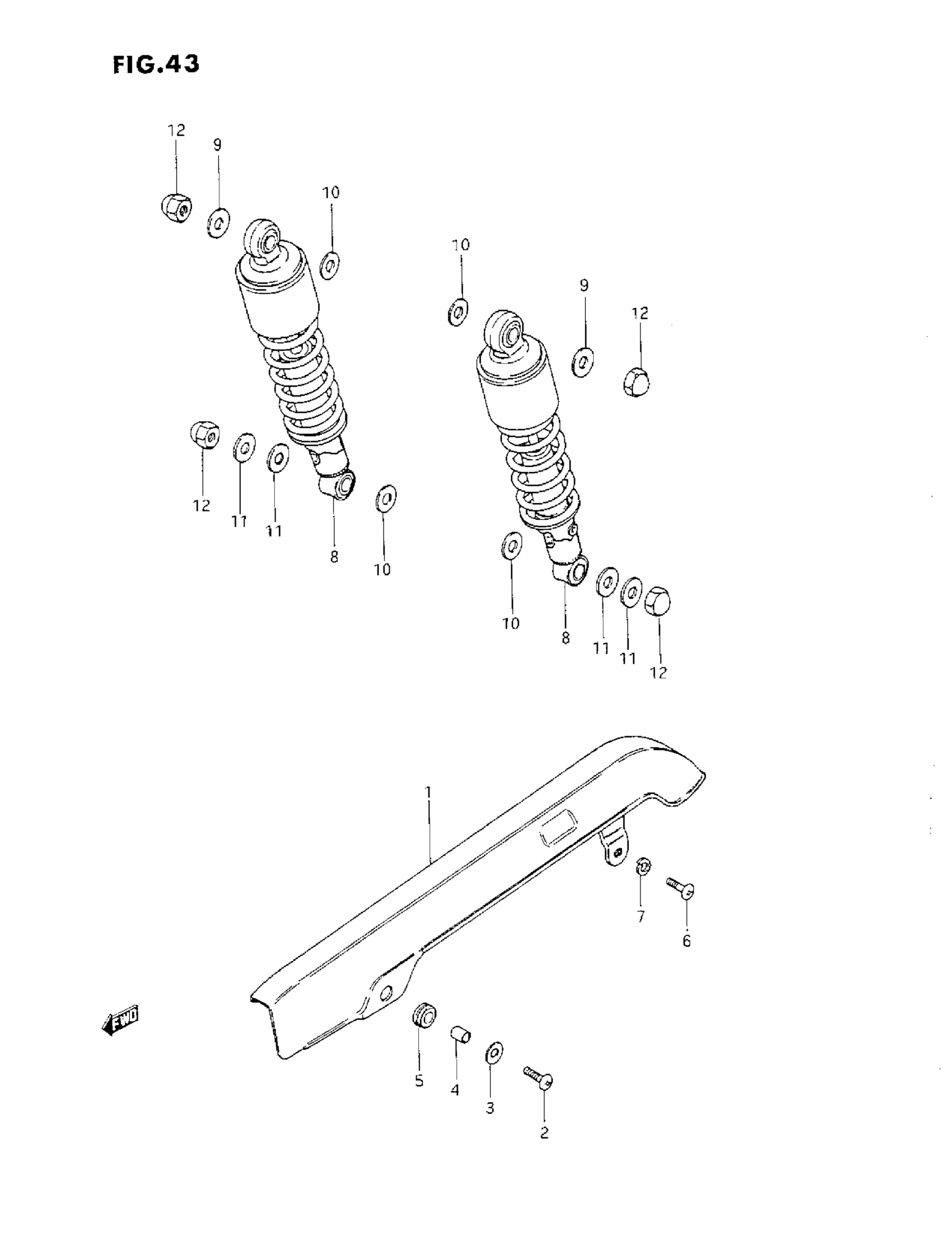

Suzuki GN125E (1993) CHAIN CASE-REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CASE, CHAIN

61310-05301

Unavailable

2

SCREW | MODEL M/N/P

02112-06167

$1.49

2

SCREW | MODEL R This part replaces 02112-06163.

02112-0616A

$1.49

3

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

4

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

5

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

6

SCREW | MODEL M

02112-06167

$1.49

6

SCREW | MODEL N/P This part replaces 02112-36168.

02112-36167

$2.34

6

SCREW | MODEL R This part replaces 02112-36163.

02112-3616A

$1.97

7

LOCK WASHER | MODEL M This part replaces 08321-21067.

08321-01067

$2.13

8

ABSORBER ASS'Y, REAR SHOCK

62100-05330

Unavailable

9

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

10

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.97

11

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

12

NUT | MODEL M/N/P This part replaces 08313-11107.

08313-10107

$2.50

12

NUT | MODEL R

08313-10107

$2.50
