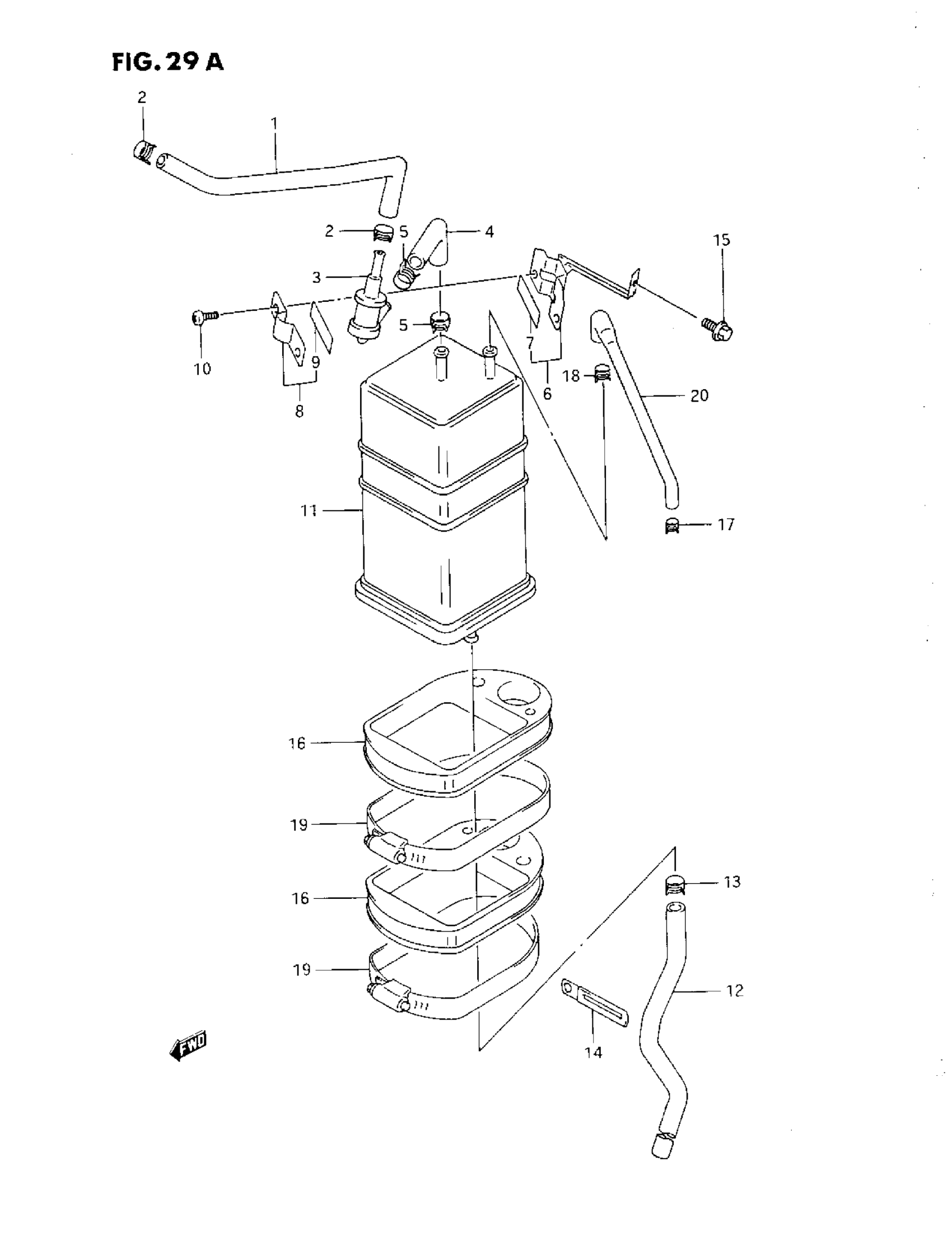

Suzuki GN125E (1993) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, TANK & VALVE

44411-38300

Unavailable

2

CLIP (ID:10.5,H:8)

09401-10409

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

HOSE, VALVE & CANISTER

44412-38300

Unavailable

5

CLIP (ID:10.5,H:8)

09401-10409

$2.26

6

PLATE, BREATHER VALVE

44890-38300

Unavailable

7

CUSHION (10X30X2)

44894-24A00

$1.72

8

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW | MODEL M/N/P This part replaces 02142-04105.

02142-0410A

$1.49

10

SCREW | MODEL R This part replaces 02142-04103.

02142-0410A

$1.49

11

CANISTER This part replaces 17210-05222.

17210-14A00

$156.07

12

HOSE,6.5X11.5X6 This part replaces 09354-70123-300.

44421-12FR0

$12.33

13

CLIP (ID:10.5,H:8)

09401-10409

$2.26

14

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

15

BOLT This part replaces 01517-06206.

01550-0620A

$1.97

16

CUSHION, CANISTER

17235-05311

Unavailable

17

CLIP, HOSE This part replaces 09401-06404.

09401-06405

$2.45

18

CLIP | MODEL M/N/P This part replaces 09401-08407.

09401-08411

$1.78

18

CLIP | MODEL R

09401-08411

$1.78

19

CLAMP

09402-82501

Unavailable

20

HOSE, CANISTER TO CARBURETOR This part replaces 09359-35751-300.

09359-35751-400

Unavailable
