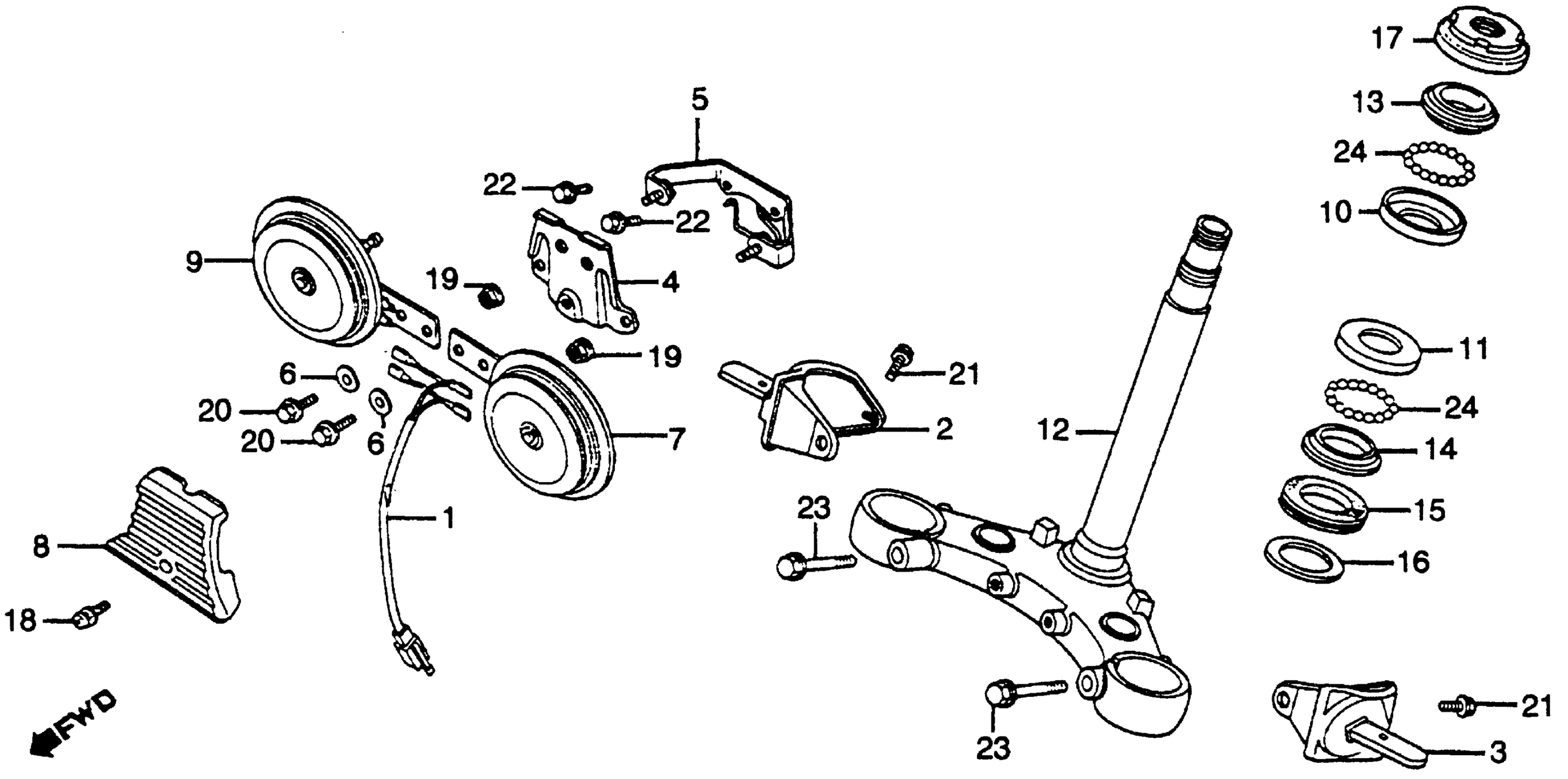

Honda GL650IA (83) SILVER WING INTERSTATE, JPN, VIN# JH2RC101-DM000015 STEERING STEM + HORN Diagram

#

Description
Price

1

SUB-HARNESS, HORN (NOT AVAILABLE)

32102-ME2-000

Unavailable

6

WASHER, PLAIN (20MM) (NOT AVAILABLE)

38106-410-004

Unavailable

7

HORN (HIGH) (MITSUBA)

38110-GT8-621

Unavailable

7

HORN (HIGH) (MITSUBA) This part replaces 38110-ME2-004.

38110-GT8-621

Unavailable

7

HORN (HIGH) (MITSUBA) This part replaces 38110-ME2-601.

38110-GT8-621

Unavailable

9

HORN (LOW) This part replaces 38120-ME2-004.

38120-438-601

Unavailable

9

HORN (LOW)

38120-438-601

Unavailable

10

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

10

RACE, STEERING BALL (UPPER)

50301-268-010

$19.29

11

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$18.94

11

RACE, STEERING BALL (LOWER)

50302-268-010

$18.94

12

STEM, STEERING

53200-MC5-000

Unavailable

13

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$23.45

13

RACE, STEERING CONE (UPPER)

53211-268-010

$23.45

14

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$18.81

14

RACE, STEERING CONE (LOWER)

53212-250-010

$18.81

15

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$2.81

16

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.13

17

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

20

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

20

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

22

BOLT, FLANGE (6X16) This part replaces 95700-06016-07.

95701-06016-07

$1.48

22

BOLT, FLANGE (6X16)

95701-06016-07

$1.48

23

BOLT, FLANGE (10X35) This part replaces 95700-10035-07.

95701-10035-07

$1.83

23

BOLT, FLANGE (10X35)

95701-10035-07

$1.83

24

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
