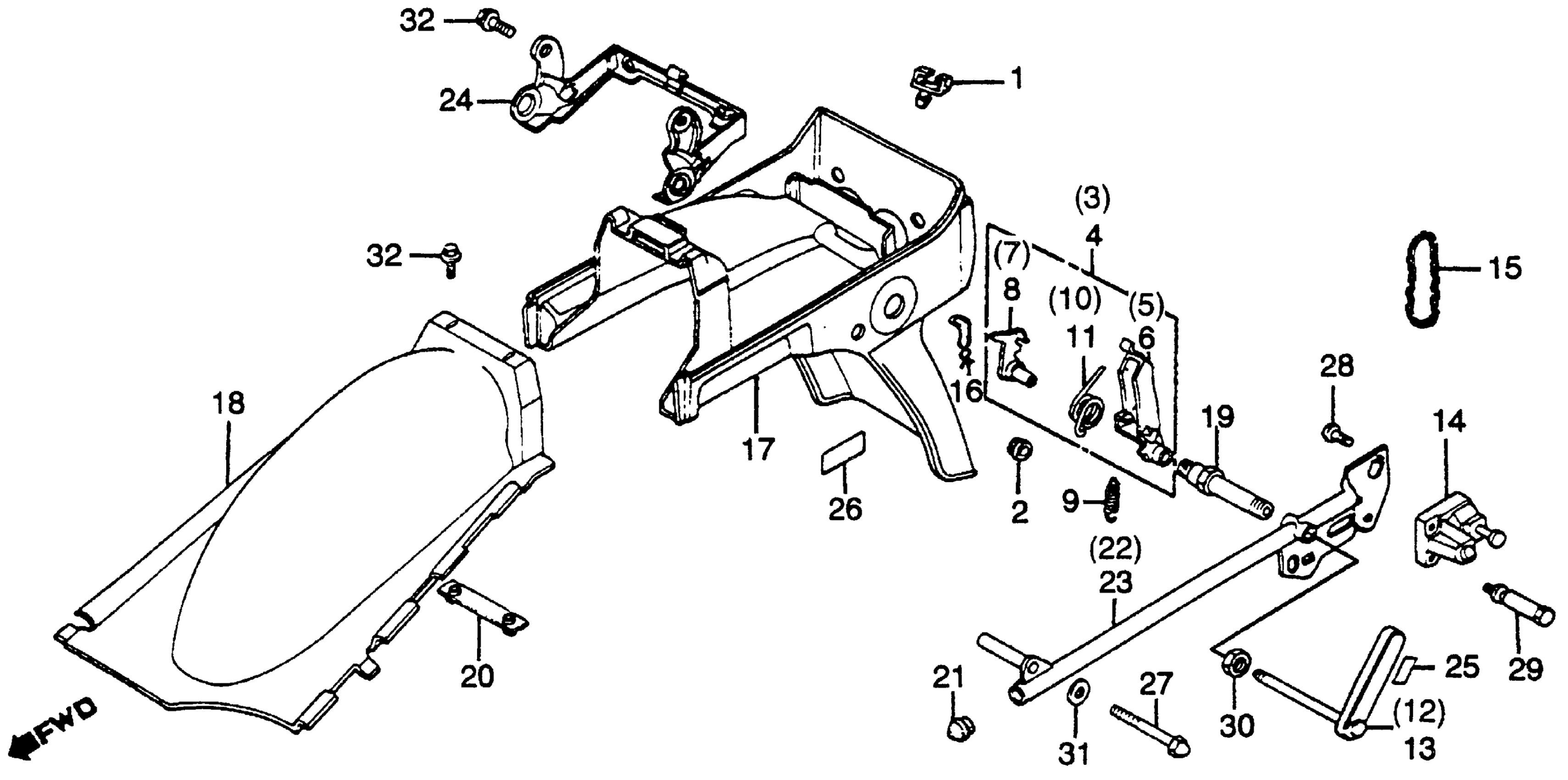

Honda GL650IA (83) SILVER WING INTERSTATE, JPN, VIN# JH2RC101-DM000015 REAR FENDER Diagram

#

Description
Price

1

GROMMET, CABLE

32985-422-000

Unavailable

2

GROMMET B, METER CASE

66219-634-000

Unavailable

3

LOCK ASSY., R. SEAT

77205-ME2-000

Unavailable

4

LOCK ASSY., L. SEAT

77215-ME2-000

Unavailable

5

LEVER, R. SEAT LOCK

77220-ME2-000

Unavailable

6

LEVER, L. SEAT LOCK

77221-ME2-000

Unavailable

7

PLATE, R. SEAT LOCK

77222-ME2-000

Unavailable

8

PLATE, L. SEAT LOCK (NOT AVAILABLE)

77223-ME2-000

Unavailable

9

SPRING A, SEAT LOCK (NOT AVAILABLE)

77224-MA1-000

Unavailable

10

SPRING B, R. SEAT LOCK (NOT AVAILABLE)

77226-MA1-000

Unavailable

11

SPRING B, L. SEAT LOCK (NOT AVAILABLE)

77227-MA1-000

Unavailable

12

SHAFT, R. SEAT LOCK

77228-ME2-000

Unavailable

13

SHAFT, L. SEAT LOCK

77229-ME2-000

Unavailable

14

LOCK ASSY., R. SEAT

77230-MA1-731

$95.39

15

CHAIN, HELMET LOCK (NOT AVAILABLE)

77235-MA1-740

Unavailable

16

SPRING, SHAFT STOPPER (NOT AVAILABLE)

77238-MA1-000

Unavailable

17

FENDER A, RR. This part replaces 80100-MA1-000ZD.

80100-MA1-610ZA

Unavailable

17

FENDER A, RR. *NH125MU* (NIMBUS GRAY METALLIC)

80100-MA1-000ZE

Unavailable

18

FENDER B, RR. (NOT AVAILABLE)

80101-MA1-000

Unavailable

19

BOLT, RR. FENDER (NOT AVAILABLE)

80105-MA1-000

Unavailable

20

PLATE, RR. FENDER (NOT AVAILABLE)

80110-415-000

Unavailable

21

CAP, RR. BUMPER (NOT AVAILABLE)

84103-MA1-000

Unavailable

22

BUMPER, R. RR. (NOT AVAILABLE)

84151-MA1-000

Unavailable

23

BUMPER, L. RR.

84152-MA1-000

Unavailable

24

BRACKET, TAILLIGHT (NOT AVAILABLE)

84700-MA1-000

Unavailable

25

LABEL, HELMET HOLDER

87511-323-670

$2.72

26

MARK, ACCESSORIES & LOADING CAUTION

87512-461-770

Unavailable

27

BOLT, CAP (8X70)

90101-MA1-000

Unavailable

28

SCREW, PAN (6X8)

90106-MA1-000

Unavailable

29

BOLT, SEAT LOCK (NOT AVAILABLE)

90107-MA1-000

Unavailable

30

NUT, HEX. (14MM) This part replaces 94002-14000.

94002-14000-0S

Unavailable

30

NUT, HEX. (14MM)

94002-14000-0S

Unavailable

31

WASHER, FLAT (8MM)

94103-08200

$1.49

32

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

32

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
