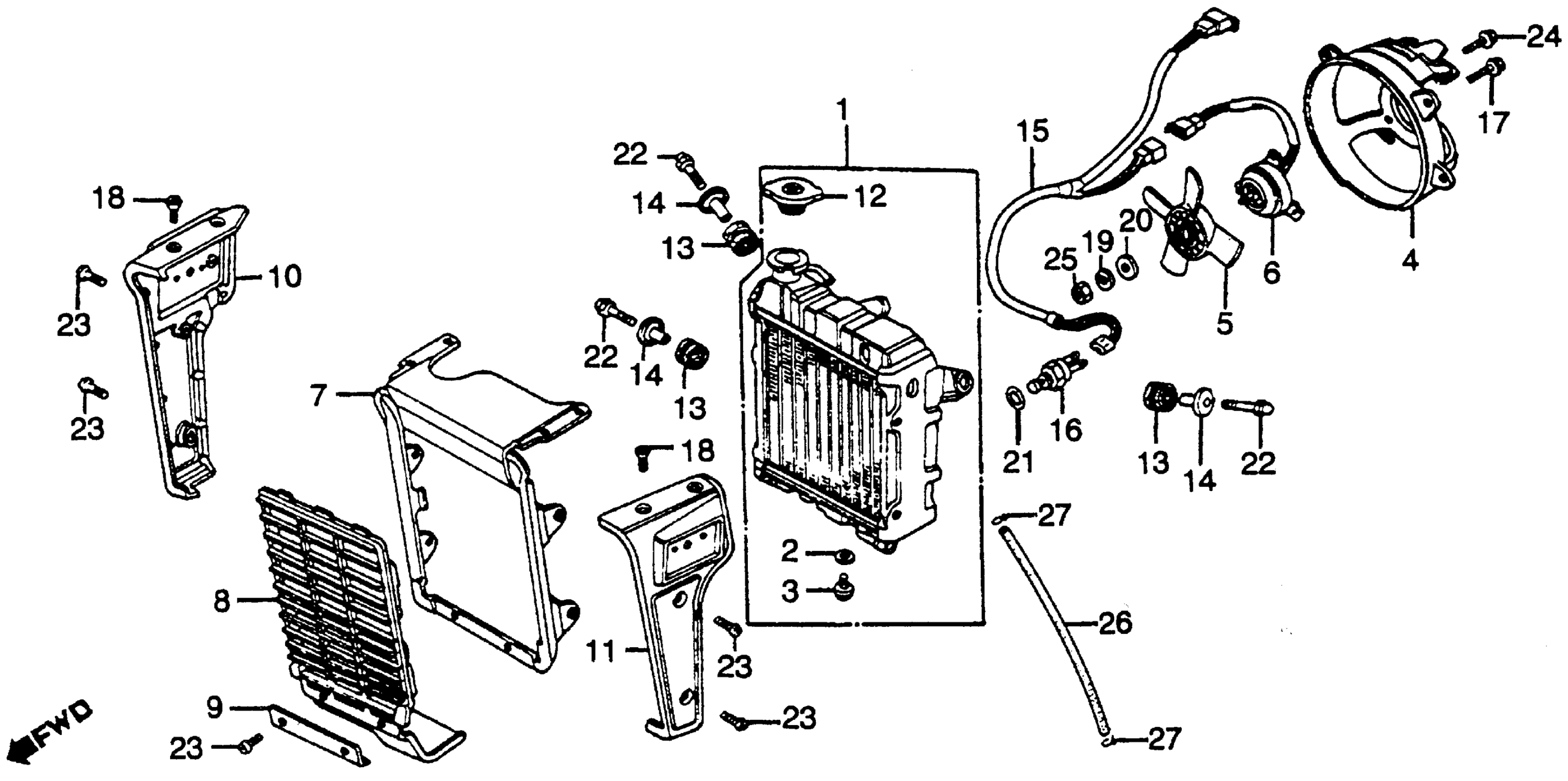

Honda GL650IA (83) SILVER WING INTERSTATE, JPN, VIN# JH2RC101-DM000015 RADIATOR + COOLING FAN Diagram

RADIATOR (NOT AVAILABLE)

19010-ME2-003

Unavailable

GASKET, DRAIN This part replaces 19012-PA0-003.

19012-ZB5-003

Unavailable

GASKET, DRAIN

19012-ZB5-003

Unavailable

GASKET, DRAIN This part replaces 19012-611-003.

19012-ZB5-003

Unavailable

VALVE, DRAIN

19013-415-004

Unavailable

SHROUD (NOT AVAILABLE)

19015-ME2-003

Unavailable

FAN, COOLING

19020-ME2-003

Unavailable

MOTOR, FAN (NOT AVAILABLE)

19030-ME2-003

Unavailable

COVER, RADIATOR

19031-ME2-000

Unavailable

GRILLE, RADIATOR (NOT AVAILABLE)

19032-ME2-000

Unavailable

COVER, RADIATOR (LOWER)

19033-470-670

Unavailable

CAP, RADIATOR (DENSO) This part replaces 19045-PA0-014.

19045-692-003

$37.56

CAP, RADIATOR (DENSO) This part replaces 19045-449-770.

19045-692-003

$37.56

CAP, RADIATOR (DENSO) This part replaces 19045-634-003.

19045-692-003

$37.56

CAP, RADIATOR (DENSO)

19045-692-003

$37.56

RUBBER, RADIATOR SETTING (NOT AVAILABLE)

19115-415-000

Unavailable

COLLAR, RADIATOR MOUNTING (NOT AVAILABLE)

19119-449-000

Unavailable

SUB-WIRE HARNESS A

32101-ME2-000

Unavailable

SWITCH ASSY., THERMO

37760-MC7-003

Unavailable

BOLT-WASHER (6x10) (DENSO) (NOT AVAILABLE)

90042-679-003

Unavailable

SCREW, FLAT (6X12) (NOT AVAILABLE) This part replaces 90138-415-840.

93600-06012-0B

Unavailable

WASHER, SPRING (5MM)

90401-679-003

$1.70

WASHER, PLAIN (5MM) This part replaces 90402-679-003.

94103-05800

$1.49

WASHER, PLAIN (5MM)

94103-05800

$1.49

O-RING (13.5X1.4)

91307-PH7-660

$2.83

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

BOLT, CAP (6X32)

92600-06032-0B

Unavailable

SCREW, PAN (6X12)

93500-06012-4J

$1.49

SCREW-WASHER (5X10)

93893-05010-08

$1.49

NUT, HEX. (5MM)

94001-050800S

$1.49

BULK HOSE, FUEL (7.5X8000) (7.3X350)

95001-75008-60M

$103.82

CLIP, TUBE (B12)

95002-02120

$2.00
