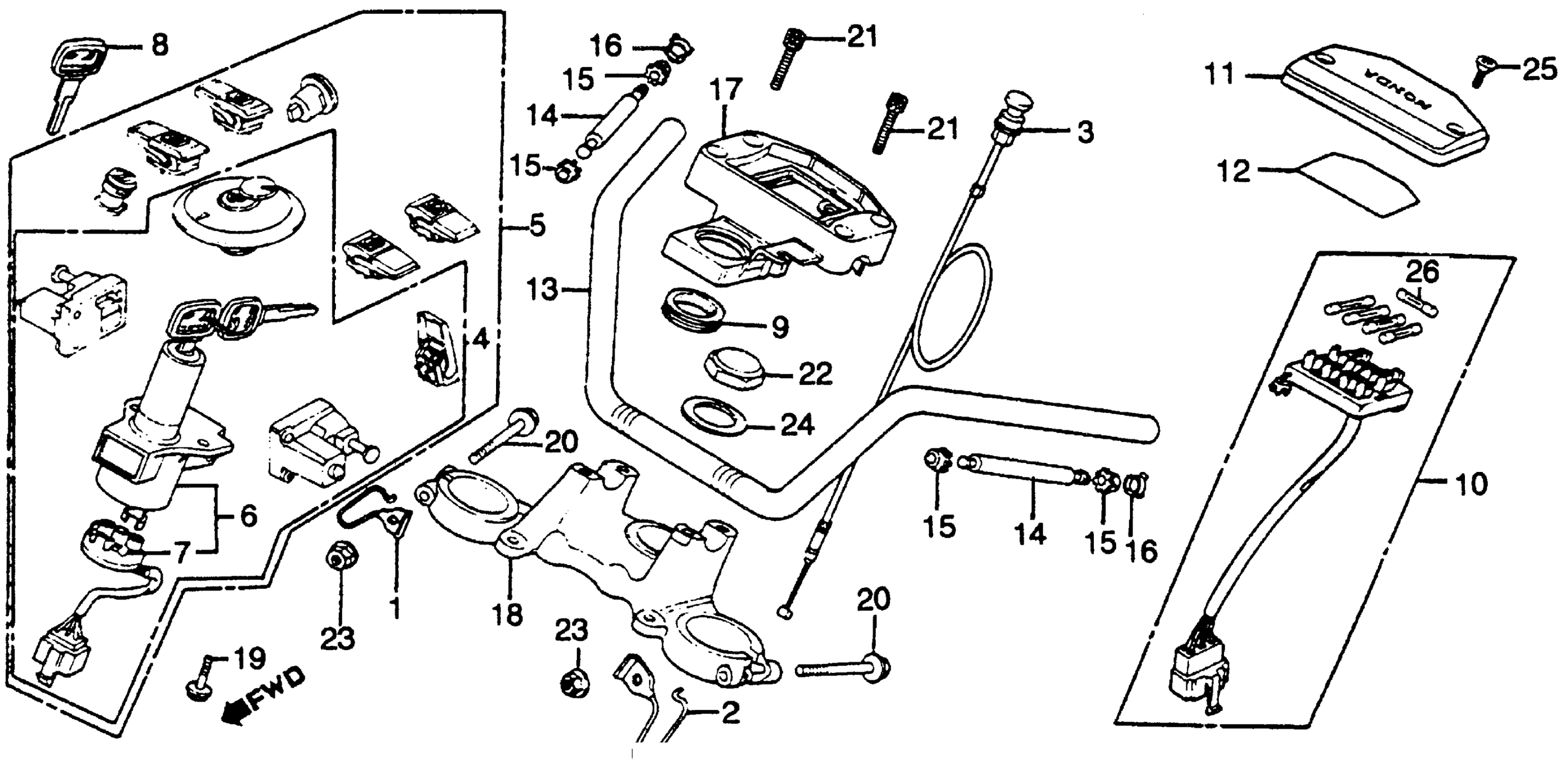

Honda GL650IA (83) SILVER WING INTERSTATE, JPN, VIN# JH2RC101-DM000015 HANDLEBAR + TOP BRIDGE + KEY SET Diagram

#

Description
Price

1

GUIDE, R. CABLE (NOT AVAILABLE)

17908-MA1-000

Unavailable

2

GUIDE, L. CABLE (NOT AVAILABLE)

17918-MA1-000

Unavailable

3

CABLE, CHOKE (NOT AVAILABLE)

17950-ME2-000

Unavailable

5

LOCK SET (NOT AVAILABLE)

35010-ME2-772

Unavailable

6

SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE)

35100-ME2-007

Unavailable

7

BASE, CONTACT (NOT AVAILABLE)

35101-ME2-000

Unavailable

8

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35111-MA6-007.

35122-KW3-771

$10.10

8

KEY, BLANK (TYPE1)

35121-KW3-771

$10.10

8

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

8

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-390-811.

35121-KW3-771

$10.10

8

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-413-811.

35121-KW3-771

$10.10

8

KEY, BLANK (TYPE2)

35122-KW3-771

$10.10

8

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

8

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-413-811.

35122-KW3-771

$10.10

9

RUBBER, IGNITION SWITCH SETTING (NOT AVAILABLE)

37623-415-000

Unavailable

10

PLATE ASSY., FUSE This part replaces 38200-MA4-671.

38200-MF9-405

Unavailable

10

PLATE ASSY., FUSE

38200-MF9-405

Unavailable

11

COVER, FUSE PLATE (NOT AVAILABLE)

38210-425-000

Unavailable

12

LABEL, FUSE (NOT AVAILABLE)

38215-MA4-670

Unavailable

13

HANDLEBAR (NOT AVAILABLE)

53100-MA1-000

Unavailable

14

WEIGHT, HANDLE

53106-ME2-000

Unavailable

15

RUBBER, HANDLE WEIGHT

53107-415-000

Unavailable

16

RING, HANDLE WEIGHT SNAP

53108-MK4-000

Unavailable

16

RING, HANDLE WEIGHT SNAP This part replaces 53108-415-004.

53108-MK4-000

Unavailable

17

HOLDER, HANDLE (UPPER) (NOT AVAILABLE)

53131-MA1-000

Unavailable

18

BRIDGE, FORK TOP

53230-ME2-000

Unavailable

19

BOLT, COMBINATION SWITCH SETTING

90105-GJ1-305

Unavailable

19

BOLT, COMBINATION SWITCH SETTING This part replaces 90105-MC7-610.

90105-GJ1-305

Unavailable

19

BOLT, COMBINATION SWITCH SETTING This part replaces 90105-MC7-611.

90105-GJ1-305

Unavailable

20

BOLT, FLANGE (7X54)

90155-369-000

$6.01

21

BOLT, HEX. SOCKET (8X32)

90185-371-000

$6.28

22

NUT, STEERING STEM

90304-KA2-000

Unavailable

23

NUT, FLANGE (7MM)

90355-369-000

$4.94

24

WASHER, STEERING STEM (NOT AVAILABLE)

90503-ME1-670

Unavailable

25

SCREW, OVAL (5X16)

93700-05016-0G

$1.49

26

FUSE B (15A)

98200-21500

$1.49
