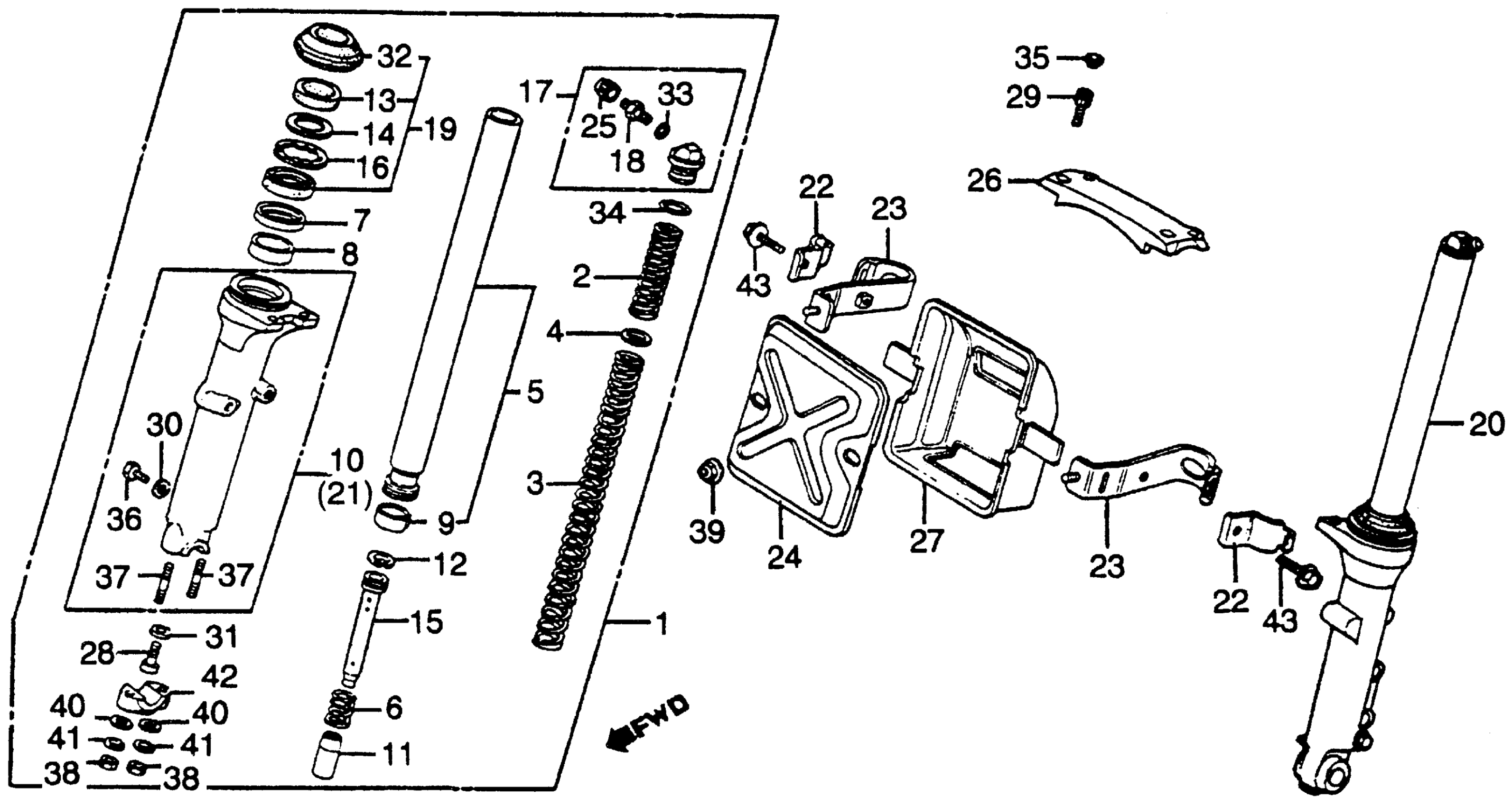

Honda GL650IA (83) SILVER WING INTERSTATE, JPN, VIN# JH2RC101-DM000015 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., R. FR.

51400-ME2-013

Unavailable

2

SPRING A, FR. FORK

51401-ME2-003

Unavailable

3

SPRING B, FR. FORK

51402-ME2-003

Unavailable

4

SEAT, SPRING

51403-MA0-771

$5.20

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-MC5-003

Unavailable

6

SPRING, FR. FORK REBOUND (NOT AVAILABLE)

51412-ME1-671

Unavailable

7

RING, BACK-UP

51412-461-003

$7.04

8

BUSH, GUIDE

51414-MN4-003

$13.34

8

BUSH, GUIDE This part replaces 51414-461-003.

51414-MN4-003

$13.34

9

BUSH, SLIDER

51415-461-003

$20.08

10

CASE, R. (LOWER)

51421-ME2-003

Unavailable

11

PIECE, OIL LOCK (NOT AVAILABLE)

51432-371-003

Unavailable

12

RING, PISTON

51437-MA0-771

Unavailable

13

HOLDER, GREASE

51438-MC5-003

Unavailable

14

WASHER, HOLDER

51439-MC5-003

Unavailable

15

PIPE, SEAT

51440-MC5-003

Unavailable

15

PIPE, SEAT This part replaces 51440-ME2-003.

51440-MC5-003

Unavailable

16

CIRCLIP (INNER) (50MM)

51447-461-003

$4.53

17

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-MC5-003

Unavailable

18

VALVE, AIR (SHOWA)

51456-469-013

$33.69

19

SEAL SET, FR. FORK

51490-KAZ-003

$33.45

19

SEAL SET, FR. FORK This part replaces 51490-MC5-305.

51490-KAZ-003

$33.45

19

SEAL SET, FR. FORK This part replaces 51490-MC5-315.

51490-KAZ-003

$33.45

20

SHOCK ABSORBER ASSY., L. FR.

51500-ME2-013

Unavailable

21

CASE, L. (LOWER) (NOT AVAILABLE)

51521-ME2-003

Unavailable

22

BAND, CONNECTOR HOLDER STAY

51602-ME2-770

Unavailable

23

STAY, CONNECTOR HOLDER

51603-ME2-770

Unavailable

24

COVER, HOLDER (NOT AVAILABLE)

51605-MA1-740

Unavailable

25

CAP, AIR VALVE

52425-381-771

$5.05

26

STABILIZER, FR. FORK

53240-MB0-000

Unavailable

27

HOLDER, CONNECTOR

61305-463-770

Unavailable

28

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

28

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

29

BOLT, SOCKET (8X17) This part replaces 90153-MB0-000.

90153-MB0-405

$3.38

29

BOLT, SOCKET (8X17)

90153-MB0-405

$3.38

30

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

31

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

32

DUST SEAL

91254-KAZ-003

$17.00

32

DUST SEAL This part replaces 91254-461-003.

91254-KAZ-003

$17.00

32

DUST SEAL This part replaces 91254-461-004.

91254-KAZ-003

$17.00

33

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

33

O-RING (5.8X1.9)

91305-323-000

$2.92

33

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

34

O-RING (29X2.4)

91344-PC9-004

$3.51

34

O-RING (29X2.4) (NOK) This part replaces 91356-371-000.

91344-PC9-004

$3.51

35

CAP, SOCKET BOLT (8MM) This part replaces 91455-MB0-000.

91455-MB0-010

$3.77

35

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

36

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

36

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

36

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

37

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

37

BOLT, STUD (8X50)

92900-08028-3B

$1.59

38

NUT, HEX. (8MM)

94030-08000

$1.49

39

NUT, FLANGE (6MM)

94050-06000

$1.49

40

WASHER, PLAIN (8MM)

94101-08000

$1.49

41

WASHER, SPRING (8MM)

94111-08000

$1.49

42

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38

43

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

43

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
