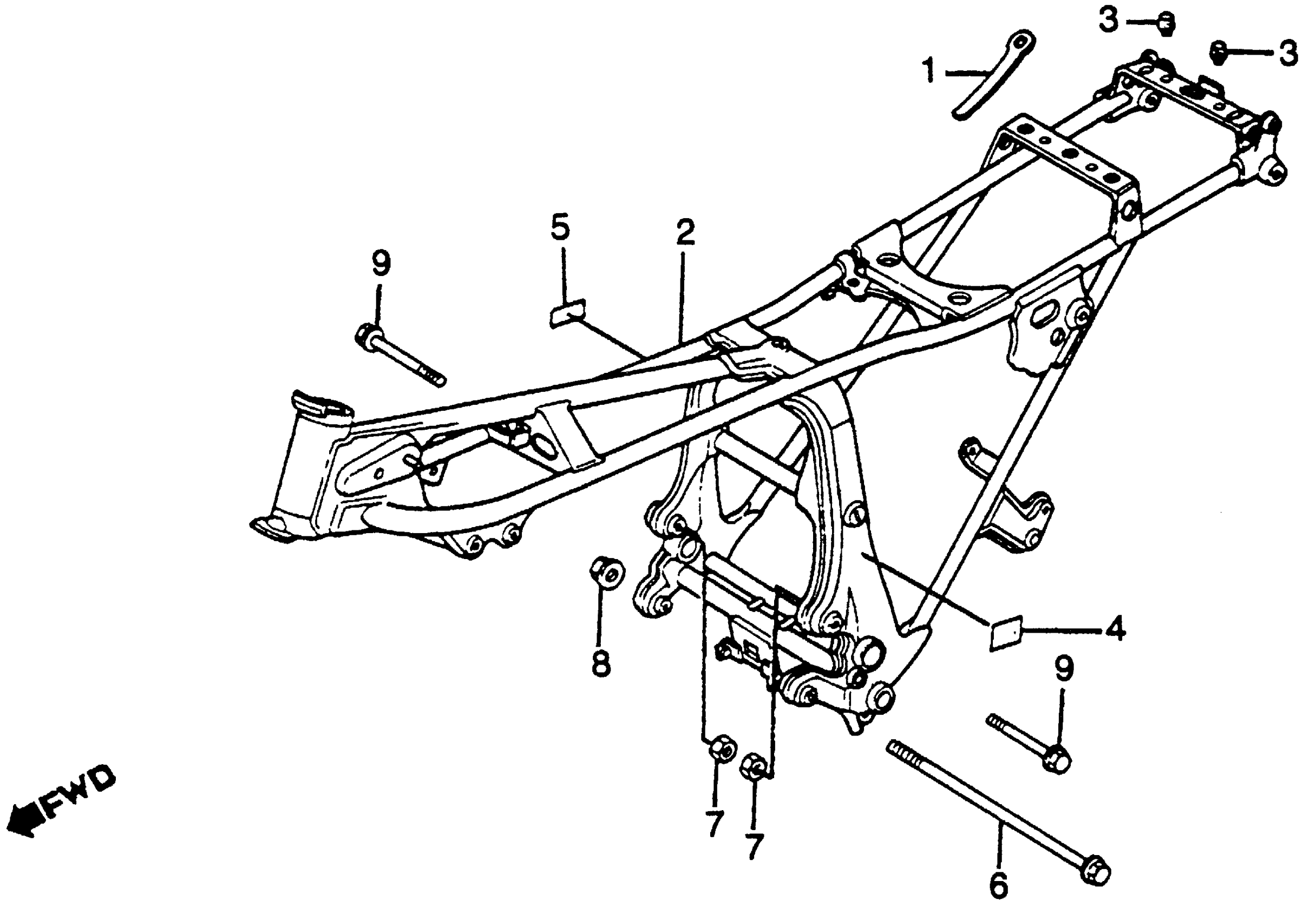

Honda GL650IA (83) SILVER WING INTERSTATE, JPN, VIN# JH2RC101-DM000015 FRAME Diagram

#

Description

Price

1

CLIP, SUB-WIRE

32901-MA1-000

$4.95

2

FRAME NH1 (BLACK)

50100-ME2-000ZA

Unavailable

3

RUBBER B, SEAT SETTING (NOT AVAILABLE)

77206-ME2-000

Unavailable

4

LABEL, RADIATOR CAUTION (NOT AVAILABLE)

87508-MA1-770

Unavailable

5

LABEL, RR. CUSHION

87518-MA1-770

Unavailable

6

BOLT, FLANGE (12X308)

90110-415-000

Unavailable

7

NUT, HEX. (10MM)

94030-10000

$1.49

8

NUT, FLANGE (12MM)

94050-12000

$1.49

9

BOLT, FLANGE (10X70) This part replaces 95800-10070-00.

95801-10070-00

$1.80

9

BOLT, FLANGE (10X70)

95801-10070-00

$1.80
