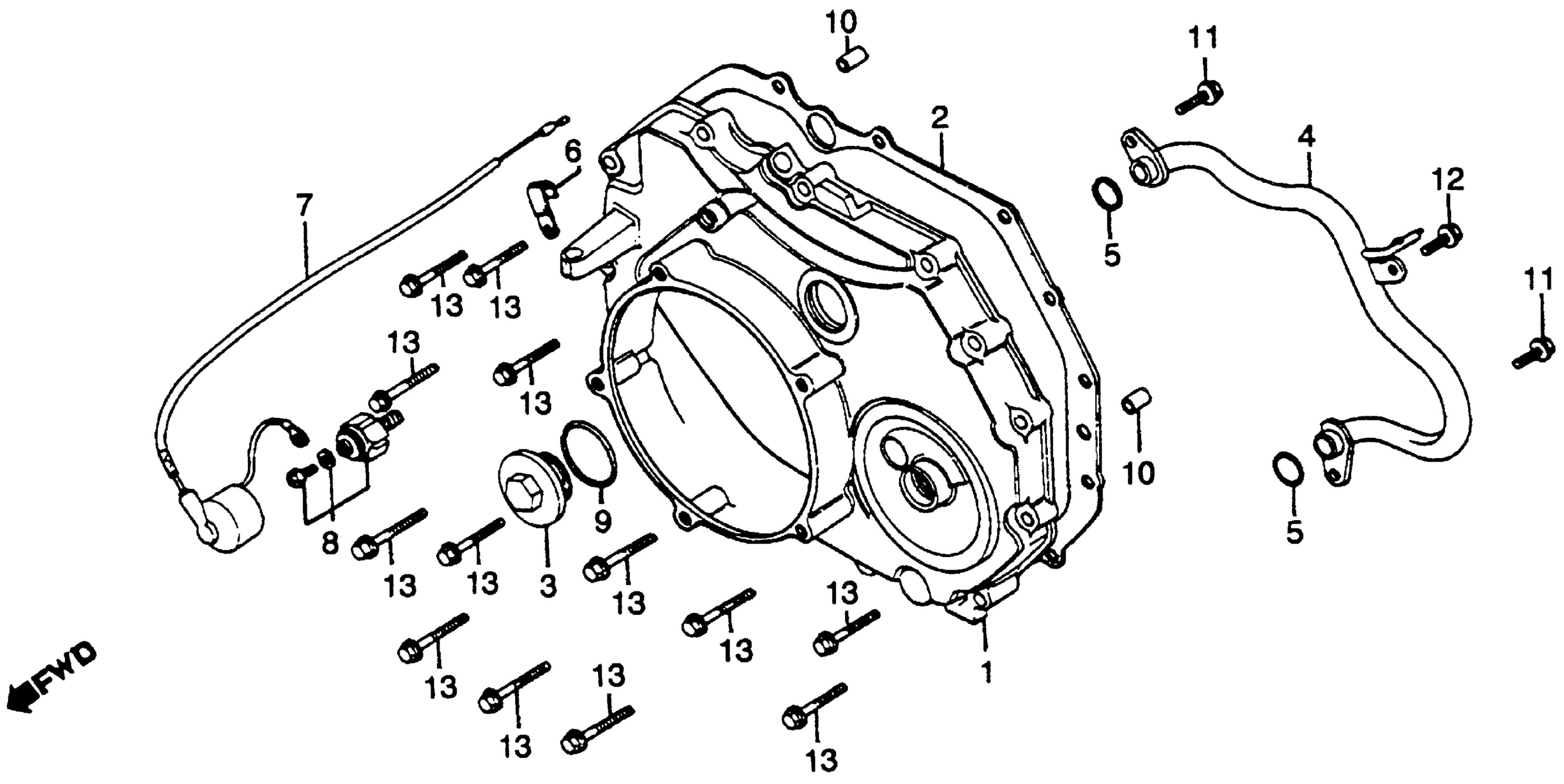

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 TRANSMISSION COVER Diagram

COVER, TRANSMISSION

11360-ME2-000

Unavailable

GASKET, TRANSMISSION COVER This part replaces 11391-ME2-000.

11391-ME2-306

Unavailable

GASKET, TRANSMISSION COVER

11391-ME2-306

Unavailable

CAP, ALTERNATOR TIMING MARK (NOT AVAILABLE)

12363-MC7-000

Unavailable

PIPE, OIL PASSAGE

15142-ME2-000

Unavailable

O-RING (11.8X2.4) This part replaces 16997-357-003.

91302-ZE9-003

$2.57

O-RING (11.8X2.4) This part replaces 91302-ZE9-000.

91302-ZE9-003

$2.57

O-RING (11.8X2.4)

91302-ZE9-003

$2.57

O-RING (11.8X2.4) This part replaces 91320-HA5-000.

91302-ZE9-003

$2.57

O-RING (11.8X2.4) This part replaces 91320-HA5-003.

91302-ZE9-003

$2.57

O-RING (11.8X2.4)

91320-MJ6-003

$2.79

CLAMP, CABLE

32111-323-000

$3.98

SUB-WIRE, OIL PRESSURE

32103-KAZ-000

Unavailable

SUB-WIRE, OIL PRESSURE This part replaces 32117-MA1-730.

32103-KAZ-000

Unavailable

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MB9-004.

35500-MJ4-024

$42.43

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ0-004.

35500-MJ4-024

$42.43

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-004.

35500-MJ4-024

$42.43

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

O-RING (27.5X2.6) This part replaces 91302-001-000.

91302-001-710

$2.99

O-RING (27.5X2.6)

91302-001-710

$2.99

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
