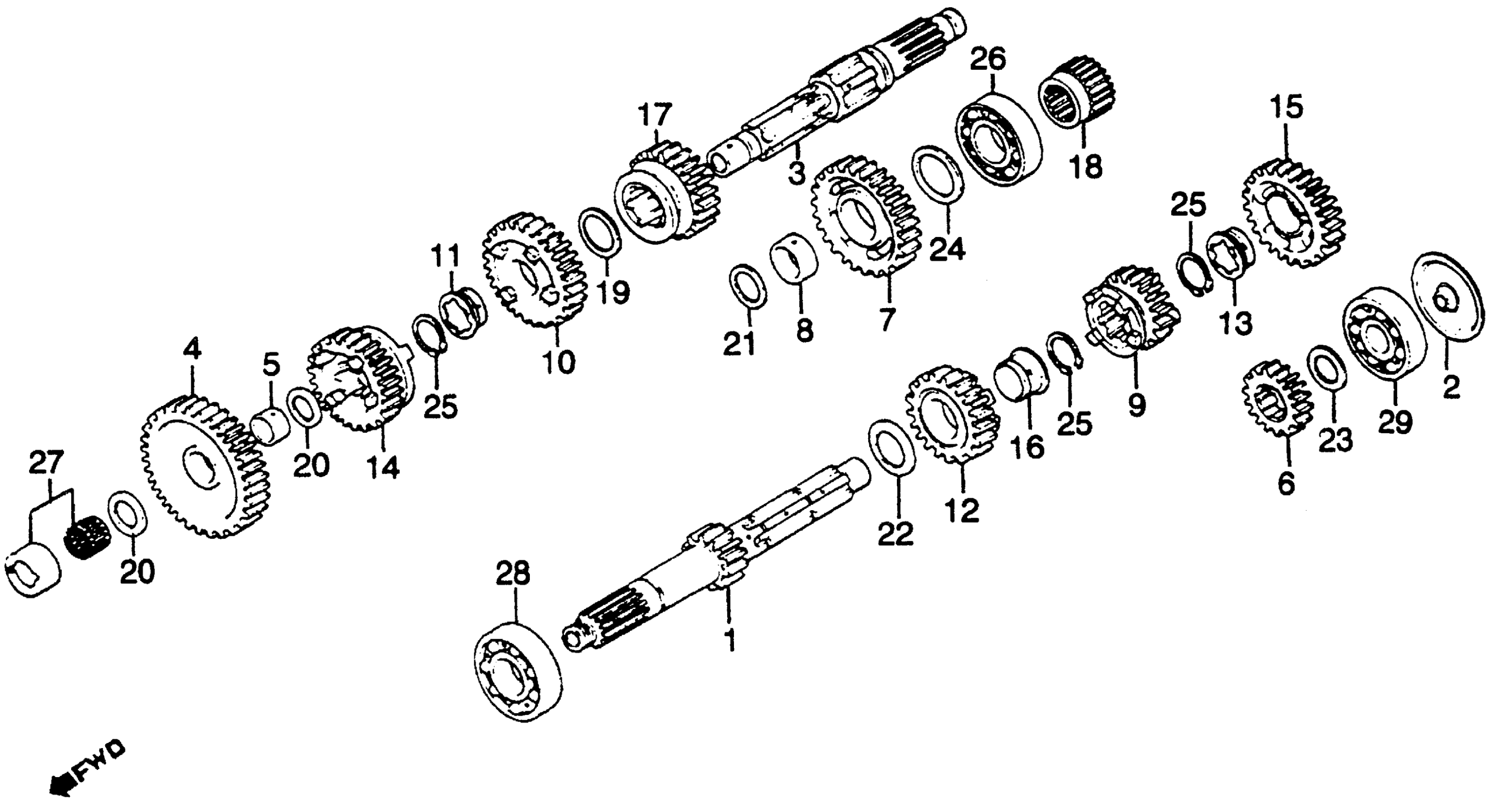

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (16T)

23211-ME2-000

Unavailable

2

PLATE, OIL GUIDE (NOT AVAILABLE)

23219-415-000

Unavailable

3

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-ME2-000

Unavailable

4

GEAR, COUNTERSHAFT FIRST (40T)

23421-ME2-000

Unavailable

5

BUSH (20X24X11) (NOT AVAILABLE)

23422-MC7-000

Unavailable

6

GEAR, MAINSHAFT SECOND (21T) (NOT AVAILABLE)

23431-MC7-000

Unavailable

7

GEAR, COUNTERSHAFT SECOND (36T) (NOT AVAILABLE)

23441-MC7-000

Unavailable

8

BUSH (27.5X31X11.5) (NOT AVAILABLE)

23442-MC7-000

Unavailable

9

GEAR, MAINSHAFT THIRD (25T) (NOT AVAILABLE) This part replaces 23451-ME2-000.

23451-ME2-010

Unavailable

9

GEAR, MAINSHAFT THIRD (25T) (NOT AVAILABLE)

23451-ME2-010

Unavailable

10

GEAR, COUNTERSHAFT THIRD (32T)

23461-MC7-000

Unavailable

10

GEAR, COUNTERSHAFT THIRD (32T) This part replaces 23461-ME2-000.

23461-MC7-000

Unavailable

10

GEAR, COUNTERSHAFT THIRD (32T) This part replaces 23461-ME7-000.

23461-MC7-000

Unavailable

11

BUSH (25X29X11.5)

23462-MC7-000

Unavailable

12

GEAR, MAINSHAFT FOURTH (28T)

23471-ME2-000

Unavailable

13

BUSH, SPLINE (NOT AVAILABLE)

23472-MC7-000

Unavailable

14

GEAR, COUNTERSHAFT FOURTH (29T)

23481-ME2-000

Unavailable

15

GEAR, MAINSHAFT FIFTH (31T)

23491-ME2-000

Unavailable

16

BUSH (25X29X15) (NOT AVAILABLE)

23492-MC7-000

Unavailable

17

GEAR, COUNTERSHAFT FIFTH (26T)

23501-ME2-000

Unavailable

18

COLLAR, COUNTERSHAFT (NOT AVAILABLE)

23522-415-000

Unavailable

19

WASHER, THRUST (25.2X34) (NOT AVAILABLE)

90446-430-000

Unavailable

20

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

21

WASHER, THRUST (27.5MM) (NOT AVAILABLE)

90455-MC7-000

Unavailable

22

WASHER C, THRUST (25MM)

90459-357-000

$3.60

23

WASHER A, THRUST (20MM)

90461-MC7-000

$5.00

24

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90466-MC7-000

Unavailable

25

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

26

BEARING, RADIAL BALL This part replaces 91010-MC7-003.

91021-KV3-771

Unavailable

26

BEARING, RADIAL BALL

91021-KV3-771

Unavailable

27

BEARING, NEEDLE (20X34X16.8) (NTN) This part replaces 91022-426-008.

91023-MKP-D01

$34.39

27

BEARING, NEEDLE (20X34X16.8) (NTN) This part replaces 91023-MM4-003.

91023-MKP-D01

$34.39

28

BEARING, RADIAL BALL (6305)

96100-63051-00

Unavailable

29

BEARING, RADIAL BALL (6204U)

96140-62040-00

$24.63
